Description

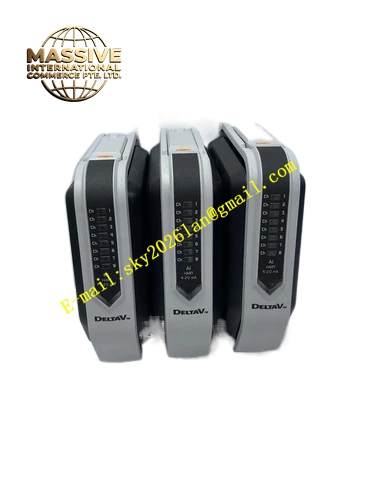

Emerson KJ2231X1-BB1
Technical Specifications:
- Brand: Emerson
- Model Number: KJ2231X1-BB1
- Product Type: Auxiliary Relay DTA-Direct Module
- System Platform: Emerson DeltaV DCS
- HS Code (Reference): 8537.10 — Boards/panels for electric control
- Power Requirements: 24 VDC nominal via DTA-Direct backplane
- Operating Temperature: 0°C to +55°C (non-condensing)
- Signal I/O Types: Relay dry-contact outputs (interposing; SPST/SPDT per channel depending on build)
- Communication Interfaces: Backplane link to DTA-Direct carrier; no external fieldbus or serial port on the module
- Installation Method: Plug-in slice on DTA-Direct carrier mounted to DIN-rail inside control cabinet
Functional Features:
- Galvanic Isolation: Breaks ground loops and noise coupling in mixed AC/DC panels, cutting down nuisance trips
- Backplane Powered: Typically 24 VDC supplied via the DTA-Direct base, eliminating the need for ad-hoc power taps in the cabinet
- Field-Replaceable Design: Allows module swapping without disturbing the marshalling or terminal blocks, keeping downtime low
- Status Visibility: Per-channel indicators enable quick commissioning and fault location on busy panels
- Control System Friendly: Works as a clean interposing layer for DeltaV discrete outputs to drive solenoids, beacons, HOA panels, or alarm horns
Application Scenarios:
- Oil & gas and petrochemicals — interposing for ESD solenoids, beacons, and annunciators
- Power & utilities — turbine auxiliaries, boiler trip relays, damper and valve drives
- Water & wastewater — pump starters, panel lights, HOA stations, and alarm horns
- Pharmaceutical & food — low-noise isolation for quality-critical lines and cleanroom panels
- Metals & mining — rugged relay interface for field devices with mixed AC/DC wiring
Material Composition:
- Industrial-grade relay components with dry-contact output architecture
- Multi-layer PCB with relay driver circuitry
- Robust modular housing compatible with DTA-Direct carrier system
Structural Features:
- Plug-in slice form factor for DTA-Direct carrier mounting
- Per-channel status indicator LEDs
- Dry-contact relay outputs (SPST/SPDT depending on configuration)
- Backplane connector for power and signal integration
Working Principle:
The KJ2231X1-BB1 receives discrete control commands from the DeltaV controller through the DTA-Direct backplane. Each channel activates a relay that provides galvanically isolated dry-contact outputs to the field side. This isolation prevents ground loops, suppresses noise coupling, and shields the primary I/O from field-side transients and wiring faults. The relay outputs then drive external loads such as solenoids, beacons, or alarm horns.
Installation Requirements:
- Mount on DIN-rail DTA-Direct carriers in a ventilated cabinet
- Maintain ambient temperature within 0°C to +55°C, non-condensing
- Follow segregation for AC and DC wiring; use ferruled conductors
- Torque terminals to specification; route inductive loads with proper suppression
- Provide stable 24 VDC to the DTA-Direct backplane; maintain a clean cabinet ground
Usage Precautions:
- De-energize circuits before handling the module
- Verify isolation of stored energy from inductive loads
- For motor or high-inrush loads, use an external contactor
- Perform periodic relay exercise and functional proof-tests
- Inspect terminals for looseness or discoloration; clean dust with dry air
