Description

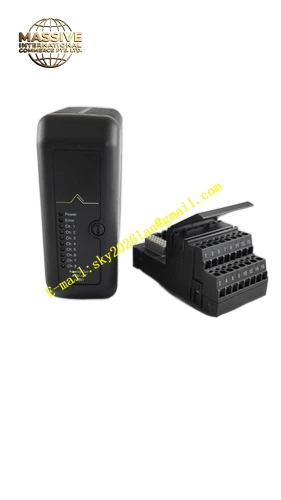

Emerson KJ3002X1‑BE1
Technical Specifications
- Number of Output Channels: 8 independent analog output channels
- Output Signal: 4‑20 mA DC current signal
- Supported Protocol: HART 5 / HART 7 communication protocol
- LocalBus Power Supply: 12 VDC, 150 mA maximum consumption
- Bussed Field Power Rating: 24 VDC, 300 mA
- Maximum Load Impedance per Channel: 750 Ohm
- Isolation Level: Galvanic isolation between field circuit and system backplane
- Operating Ambient Temperature: 0℃ ~ 60℃
- Storage Temperature: -40℃ ~ 85℃
- Relative Humidity: 5% ~ 95%, non‑condensing
- Protection Grade: IP20
- Communication Bus: DeltaV LocalBus proprietary backplane bus
- Mechanical Form: Standard DeltaV rack plug‑in card
Functional Features High‑precision digital‑to‑analog conversion circuit outputs stable 4‑20 mA control current for proportional process regulation. Built‑in HART modem chip superimposes digital HART data onto analog 4‑20 mA signal loop without interfering analog control output. Galvanic isolation structure isolates field wiring and DCS internal circuit, restraining surge voltage and common‑mode electromagnetic interference introduced by long‑distance field cables. Full‑time channel‑level diagnosis identifies output loop open circuit, short circuit and load overload. Front‑panel LED indicators show module power status, fault alarm and real‑time state of each individual channel. Hot‑swap hardware design allows module replacement under non‑critical process running conditions without system power‑off. Supports remote HART instrument configuration, reading diagnostic variables and device self‑check information through DeltaV engineering workstation or handheld HART communicator.
Application Scenarios DeltaV DCS control cabinets deployed in chemical plants, oil refineries, natural gas processing facilities, pharmaceutical factories, pulp‑and‑paper mills and thermal power plants. It connects to HART‑compatible control valve positioners, electric actuators, metering pumps and variable‑speed regulators in closed‑loop process control loops.
Performance Parameters Analog output accuracy reaches ±0.1% of full‑scale range under full rated working temperature interval. Digital‑to‑analog conversion maintains stable output when channel load impedance changes within allowable range. HART communication keeps reliable bidirectional data exchange on long‑distance shielded twisted‑pair cables. Diagnostic circuit responds rapidly to wiring faults and triggers system alarm without delay. Backplane LocalBus realizes low‑latency transmission of control commands and diagnostic data.
Material Composition Flame‑retardant black engineering plastic front housing. Multi‑layer flame‑retardant glass‑fiber epoxy printed circuit board. High‑precision DAC conversion chips, integrated HART modem, main microprocessor, optical isolation devices and LED status indicators. Gold‑plated copper alloy backplane connector with anti‑oxidation plating layer. Matching terminal base consists of flame‑retardant PA plastic and nickel‑plated copper screw terminals.
Structural Features Compact plug‑in card structure matching standard DeltaV rack slot dimensions. Front panel integrates power indicator, fault indicator and eight independent channel status LED lights. Built‑in guide rails and spring mechanical latch fix the module firmly inside equipment rack and prevent loose contact caused by cabinet vibration. Rear gold‑plated multi‑pin connector completes electrical connection with DeltaV rack backplane LocalBus. Module bottom contacts precisely mate with supporting wiring terminal base for field instrument signal termination. Outer shell adopts heat‑dissipation slot design to enhance natural convection cooling inside closed cabinet.
Working Principle DeltaV main controller sends digital set‑point commands to KJ3002X1‑BE1 module via rack LocalBus backplane. On‑board microprocessor receives and parses digital control data and transmits data to digital‑to‑analog conversion circuit. DAC circuit converts digital quantity into corresponding 4‑20 mA analog current signal. HART modem superimposes modulated digital HART signal onto analog current loop. Mixed analog‑HART signal passes through galvanic isolation circuit and reaches field HART actuators through terminal base and shielded signal cables. Field instrument returns HART digital response signal back to module along the same two‑wire loop. Real‑time sampling circuit continuously monitors output current magnitude and loop load state. When open‑circuit, short‑circuit or overload fault appears, the module generates fault flag and uploads alarm message through LocalBus to DeltaV controller and operator station.
Installation Requirements Insert the module along rack guide rail into designated DeltaV rack slot and fasten mechanical latch completely. Adopt shielded twisted‑pair cables for all HART field instrument wiring. Cable shielding layer implements single‑point grounding inside control cabinet only. Separate analog HART signal cables from high‑voltage power cables and large‑current motor cables to avoid electromagnetic coupling interference. Reserve sufficient air circulation space around the module to guarantee heat dissipation, do not block shell heat‑dissipation slots. Complete hardware identification and HART parameter configuration in DeltaV engineering workstation after hardware installation.
Precautions for Use Carry out anti‑static protection measures during module handling; do not touch gold‑plated connector pins with bare hands. Cut off field instrument power supply before performing wiring modification work. Execute channel output calibration and HART loop communication verification after module replacement. Check terminal screw tightening torque and cable insulation condition in regular cabinet maintenance cycles. Do not apply external voltage exceeding rated 24 VDC range to output signal terminals. Do not disassemble module outer housing, internal circuit components cannot be maintained on‑site.
