Description

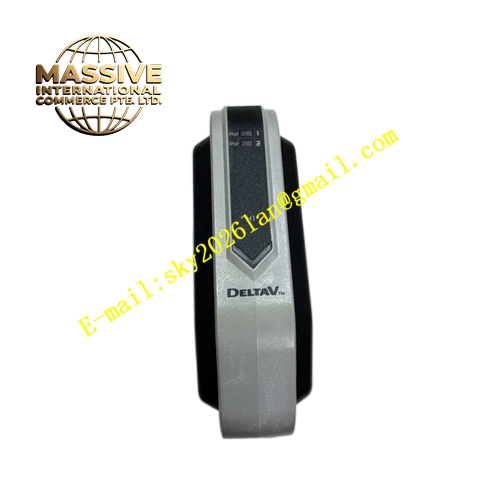

Emerson KJ3002X1-BF1
Technical Specifications
- Safety bus communication interface
- Operating temperature: 0°C to 60°C
- Storage temperature: -40°C to 85°C
- Ambient humidity: 5% to 95% non-condensing
- Built-in communication error checking function
- Supports redundant communication network
- Safety certification for process safety applications
Functional Features Realizes high-reliability data transmission between SIS controller and safety I/O modules. Implements data verification and error checking for safety-related messages. Transmits safety alarm and diagnostic information to operator station. Continuous self-test of internal communication hardware. Front panel LED indicators show link status and fault alarms. Supports redundant network configuration to avoid single point of failure. Hot swap available under redundant cabinet setup.
Application Scenarios Installed inside DeltaV SIS safety cabinets in petrochemical plants, LNG terminals and chemical workshops. Used for emergency shutdown system, fire and gas safety system communication.
Performance Parameters
- Low communication error rate for safety signal transmission
- Fast fault detection speed for communication link
- High diagnostic coverage of internal hardware faults
- Stable operation under continuous safety system running
Material Composition Flame-retardant plastic housing. Safety-grade communication processing chips. Electrical isolation components for communication circuits. Gold-plated backplane connector pins. Corrosion-resistant copper alloy terminal blocks.
Structural Characteristics Standard plug-in card design for DeltaV SIS rack slots. Front panel equipped with LED indicators for communication status and faults. Mechanical anti-vibration locking buckle. Internal circuit separates safety communication circuit and non-safety circuit.
Working Principle Safety logic commands generated by SIS controller are transmitted through this communication module to safety I/O modules. Field safety signals and module diagnostic data from I/O modules are uploaded back to SIS controller and operator station. The module performs data checksum verification for every safety message. Internal self-test circuit monitors hardware integrity continuously and reports permanent faults.
Installation Requirements Install in dedicated DeltaV SIS safety cabinet. Safety communication cables must be separated from non-safety control cables. Cable shielding adopts single-point grounding method. All wiring and commissioning work follow DeltaV SIS official installation specification.
Use Precautions Only certified functional safety technicians can perform wiring, commissioning and maintenance. Safety communication cables cannot be laid together with high-voltage power cables. Complete communication loop test after installation. Replace module immediately when persistent diagnostic faults are detected.
