Description

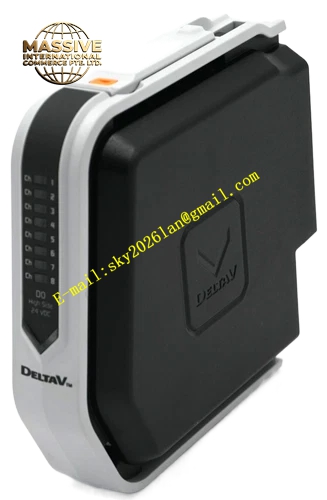

Emerson KJ3005X1-BA1
Technical Specifications:
- Brand: Emerson
- Model Number: KJ3005X1-BA1
- Product Type: ASi Actuator Sensor Interface Module
- System Platform: Emerson DeltaV DCS
- Operating Temperature (FBM201/B/C/D): -20°C to +70°C (-4°F to +158°F)
- Operating Temperature (PVC Terminal): -20°C to +50°C (-4°F to +122°F)
- Operating Temperature (PA Terminal): -20°C to +70°C (-4°F to +158°F)
- Relative Humidity: 5% to 95% non-condensing
- Altitude: -300 to +3000 meters (-1000 to +10000 feet)
Functional Features:
- ASi Network Interface: Provides standard AS-Interface connectivity for field device communication
- EMC Compliance: Meets European EMC Directive 89/336/EEC requirements
- Emission Standard: Compliant with EN 50081-2 emission standard
- Immunity Standard: Compliant with EN 50082-2 immunity standard
- Industrial EMC Level: EN 61326 Annex A (industrial level) compliance
- ESD Immunity: IEC 61000-4-2 rated at 4 kV air discharge and 8 kV contact discharge
- Radiated Field Immunity: IEC 61000-4-3 rated at 10 V/m from 80 to 1000 MHz
- Fast Transient Burst Immunity: IEC 61000-4-4 rated at 2 kV for I/O, DC power, and AC lines
- Surge Immunity: IEC 61000-4-5 rated for AC and DC power lines with 1 kV for I/O and communication lines
- Conducted RF Immunity: IEC 61000-4-6 rated at 10 V (RMS) from 150 kHz to 80 MHz
- Power Frequency Magnetic Field Immunity: IEC 61000-4-8 rated at 30 A/m at 50 and 60 Hz
Application Scenarios:
- DeltaV DCS integration with ASi-compatible field devices
- Binary sensor and actuator networking in process automation
- Chemical, petroleum, aerospace, and electrical industry automation
- Cost-effective field device integration requiring simple on/off control
- Systems requiring robust EMC performance in harsh industrial environments
Material Composition:
- Industrial-grade electronic components
- Multi-layer PCB with ASi communication circuitry
- Robust modular housing for DeltaV carrier integration
- Standard industrial connector interfaces
Structural Features:
- Standard DeltaV card form factor for carrier mounting
- ASi network port connector for field bus connection
- Status indicator LEDs for communication and operational monitoring
- Backplane connector for power and data bus integration with the DeltaV carrier
Working Principle:
The KJ3005X1-BA1 acts as an ASi master interface within the DeltaV system. It translates control commands from the DeltaV controller into ASi protocol messages transmitted over the ASi two-wire bus to connected field devices. The module simultaneously reads status and data from ASi slave devices (sensors and actuators), converts the information into the DeltaV internal data format, and makes it available to the controller for processing, display, and control logic execution.
Installation Requirements:
- Insert the module into an available slot in the DeltaV I/O carrier
- Connect the ASi two-wire bus cable to the module’s ASi port
- Configure ASi node addresses and parameters through the DeltaV configuration software
- Ensure proper ASi bus power supply is connected
- Verify the operating temperature range is appropriate for the installation environment
Usage Precautions:
- Ensure all ASi slave devices have unique node addresses on the bus
- Verify the ASi bus cable length and topology comply with ASi specifications
- Do not exceed the specified operating temperature and humidity ranges
- The module contains no user-serviceable parts and must not be disassembled
- Refer to DeltaV Zone 2 installation instructions (document 12P2046) for hazardous area installations
