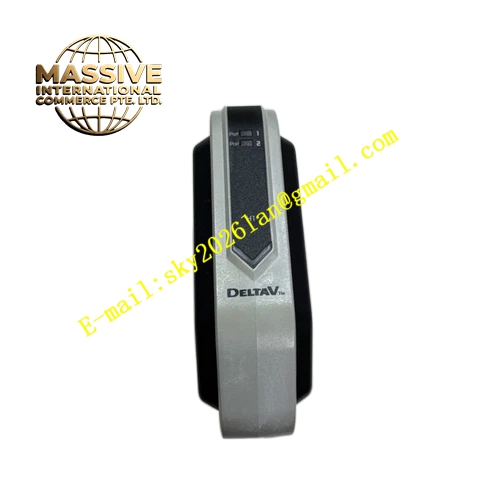

Emerson KJ3006X1-BA1
Technical Specifications:
- Brand: Emerson
- Model Number: KJ3006X1-BA1
- Product Type: Pulse Multifunction I/O Card
- System Platform: Emerson DeltaV DCS
- Terminal Cable Length: Up to 30 meters (98 feet)
- Terminal Cable Type: Type 1
- Baseboard Main Trunk Cable Connection: 37-pin D-subminiature
- Terminal Assembly End Connection: 25-pin D-subminiature
- Wire Acceptance (Solid/Stranded): 0.2 to 4 mm² / 0.2 to 2.5 mm² / 24 to 12 AWG
- Ferruled Wire Acceptance: 0.2 to 2.5 mm² or without plastic collar
- Ring Lug Connector Size: #6 size connector (0.375 inch / 9.5 mm)
- Ring Lug Wire Range: 0.5 to 4 mm² / 22 to 12 AWG
Functional Features:
- High-Precision Acquisition: Each channel contains a sigma-delta converter providing a new input value every 25 milliseconds per channel
- Configurable Integration Period: Eliminates process noise and power line frequency interference through adjustable averaging
- Digital Averaging: Converts each analog input to a digital value, averages these values over the time period, and provides the averaged value to the controller
- Compression-Type Field Termination: Accepts wiring through compression-type terminal connections
- Pulse Multifunction Capability: Handles pulse counting, frequency measurement, and multifunction I/O operations
Application Scenarios:
- Industrial process automation within DeltaV DCS environments
- Pulse signal monitoring and counting applications
- Multifunction I/O integration in chemical, petroleum, aerospace, and electrical industries
- Systems requiring high-precision analog-to-digital conversion with noise rejection
- Process control applications demanding configurable signal integration
Material Composition:
- Terminal Assembly Housing: Polyvinyl chloride (PVC), compression-molded
- Terminal Assembly Alternate Material: Polyamide (PA), compression-molded
- Field Termination Connectors: PVC ring lug and PA ring lug options
- Internal Circuitry: Industrial-grade electronic components on multi-layer PCB
Structural Features:
- Modular card form factor compatible with DeltaV I/O carrier
- 37-pin D-subminiature connector for baseboard main trunk cable connection
- 25-pin D-subminiature connector at the terminal assembly end
- Compression-type field termination accepting solid, stranded, and ferruled wires
- Ring lug termination option for #6 size connectors
Working Principle:
The KJ3006X1-BA1 receives pulse and analog signals from field devices through its terminal connections. Each channel employs a sigma-delta analog-to-digital converter that continuously samples the input signal. The module averages the digitized values over a configurable integration period, effectively filtering out process noise and power line frequency components. The averaged digital values are then transmitted to the DeltaV controller via the carrier backplane for processing and control algorithm execution.
Installation Requirements:
- Install the card into a compatible DeltaV I/O carrier slot
- Connect the terminal cable (Type 1) between the card and the terminal assembly
- Ensure the 37-pin connector is properly seated at the baseboard end
- Connect field wiring to the terminal assembly using compression-type or ring lug connections
- Verify wire gauge falls within the specified acceptance range (24 to 12 AWG)
Usage Precautions:
- Ensure terminal cable length does not exceed 30 meters
- Use appropriate wire gauge within the specified range for reliable connections
- Verify the terminal block keying matches the I/O card configuration before installation
- Do not disassemble the unit as it contains no user-serviceable parts
- Confirm proper grounding of the carrier and terminal assembly
