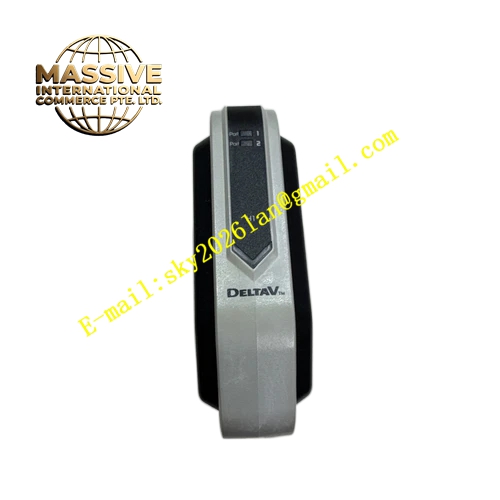

Emerson KJ3009X1-BA1
Technical Specifications:
- Brand: Emerson
- Product Line: DeltaV DCS
- Model Number: KJ3009X1-BA1
- Product Type: DeviceNet Communication Card
- Communication Protocol: DeviceNet
- System Platform: Emerson DeltaV Distributed Control System
- Origin: United States
Functional Features:
- DeviceNet Communication: Provides a standard DeviceNet interface for connecting field devices to the DeltaV control system
- Modular Design: Flexible card-based architecture that integrates directly into the DeltaV controller chassis
- High Performance: Utilizes advanced electronic technology and control algorithms for high-precision, high-reliability communication
- Multiple Interface Support: Provides communication interfaces supporting various protocols and signal types for seamless device connectivity
- High Protection Level: Designed to withstand harsh industrial environments including temperature extremes, humidity, and electromagnetic interference
Application Scenarios:
- DeltaV DCS integration with DeviceNet field devices
- Process automation in petrochemical, oil and gas, and chemical plants
- Manufacturing automation requiring DeviceNet-based sensor and actuator networks
- Water treatment and power generation control systems
- System expansion projects requiring DeviceNet connectivity
Material Composition:
- Industrial-grade electronic components
- Multi-layer printed circuit board
- Robust card-edge connector for backplane integration
- Standard industrial enclosure form factor
Structural Features:
- Standard DeltaV card form factor for chassis mounting
- DeviceNet port connector on the front panel
- Status indicator LEDs for communication monitoring
- Backplane connector for power and data bus integration
Working Principle:
The KJ3009X1-BA1 card acts as a DeviceNet network adapter within the DeltaV controller. It translates control commands from the DeltaV controller into DeviceNet protocol messages and transmits them over the DeviceNet physical layer to connected field devices. Conversely, it receives DeviceNet messages from field devices, translates them into the DeltaV internal data format, and makes the data available to the controller for processing and display.
Installation Requirements:
- Insert the card into an available slot in the DeltaV controller chassis
- Connect the DeviceNet trunk line to the card’s DeviceNet port
- Configure the DeviceNet network parameters including node address and baud rate through the DeltaV configuration software
- Ensure proper DeviceNet network termination resistors are installed at both ends of the trunk line
- Verify backplane connection is secure before powering up
Usage Precautions:
- Ensure the DeviceNet baud rate and node addresses are correctly configured to avoid network conflicts
- Use approved DeviceNet thick or thin trunk cables with proper shielding
- Verify that all connected DeviceNet devices have unique node addresses
- Monitor communication status LEDs during operation to detect network faults
- Perform network diagnostics through the DeltaV configuration tools after installation
