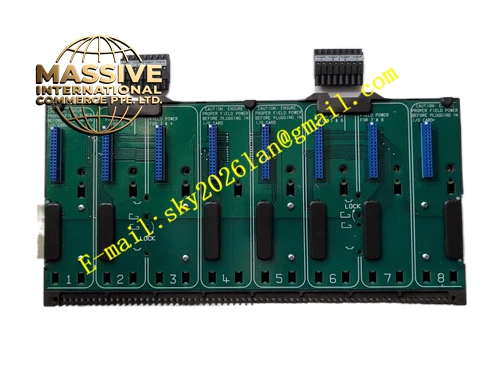

Emerson KJ4001X1-BE1
Technical Specifications:
- Brand: Emerson
- Model Number: KJ4001X1-BE1
- Alternate Part Number: 12P0818X072
- Product Type: 8-Wide I/O Carrier
- System Platform: Emerson DeltaV DCS
- Local Bus Power Supply: 12.6 VDC, capable of providing 8A current
- Bus-Type Field Power Supply: 30 VDC with 6.5A output current
- Operating Temperature: -40°C to +70°C
- Relative Humidity: 5% to 95% (non-condensing)
- Shock Rating: 10g half-sine wave impact (11 ms duration)
- Vibration Rating: 1 mm peak-to-peak (2 to 13.2 Hz); 0.7g (13.2 to 150 Hz)
- Airborne Contaminants: ISA-S71.04-1985 Class G3
- Communication Protocol Support: Modbus TCP/IP, Ethernet/IP
- I/O Slots: 8 digital input/output channels
Functional Features:
- 8-Slot Capacity: Houses up to eight I/O modules in a single carrier, maximizing cabinet space utilization
- Robust Power Distribution: Provides stable 12.6 VDC LocalBus power (8A) and 30 VDC field power (6.5A) to all installed modules
- Redundant Design: Key components such as power modules support redundant configuration for fault tolerance
- Enhanced Signal Integrity: Shielded design reduces electromagnetic interference (EMI) impact on signal transmission
- Wide Environmental Tolerance: Operates across -40°C to +70°C with resistance to vibration, shock, humidity, and airborne contaminants
- Multi-Protocol Communication: Supports Modbus TCP/IP and Ethernet/IP for integration with diverse industrial networks
Application Scenarios:
- Chemical process automation requiring high-density I/O concentration
- Petroleum refining control systems with multiple signal types
- Power generation auxiliary monitoring and control
- Water and wastewater treatment plant automation
- Pharmaceutical batch process control
- Any DeltaV installation requiring a centralized I/O carrier platform
Material Composition:
- Industrial-grade PCB with multi-layer backplane traces
- Heavy-duty power distribution bus bars
- Shielded metal housing for EMI protection
- DIN-rail or panel mounting hardware
Structural Features:
- 8-slot carrier form factor for DeltaV I/O modules
- Backplane connectors for each module slot
- LocalBus communication traces
- Power distribution terminals for LocalBus and field power
- Status indicator LEDs for power and communication health
- DIN-rail mounting capability
Working Principle:
The KJ4001X1-BE1 carrier receives power from the DeltaV system power supply and distributes it to all installed I/O modules through the backplane. It routes LocalBus communication signals between the DeltaV controller and each I/O module, enabling data exchange for process variable acquisition and control output generation. The carrier also distributes bussed field power to modules that require external power for field circuits. The shielded backplane design maintains signal integrity by minimizing crosstalk and electromagnetic interference between adjacent module slots.
Installation Requirements:
- Mount the carrier on a standard DIN rail or panel in a ventilated control cabinet
- Connect LocalBus power (12.6 VDC) and field power (30 VDC) to the carrier power terminals
- Insert I/O modules into the carrier slots ensuring proper backplane engagement
- Connect the LocalBus communication cable to the DeltaV controller
- Maintain ambient temperature within -40°C to +70°C
- Ensure adequate ventilation around the carrier for heat dissipation
Usage Precautions:
- De-energize all power sources before installing or removing I/O modules
- Verify power supply voltage and current capacity before energizing the carrier
- Do not exceed the 8A LocalBus or 6.5A field power ratings
- Ensure all module slots are properly populated or fitted with blank panels to maintain airflow
- Perform functional testing of all installed modules after carrier installation
- Follow DeltaV system grounding requirements to prevent ground loops
