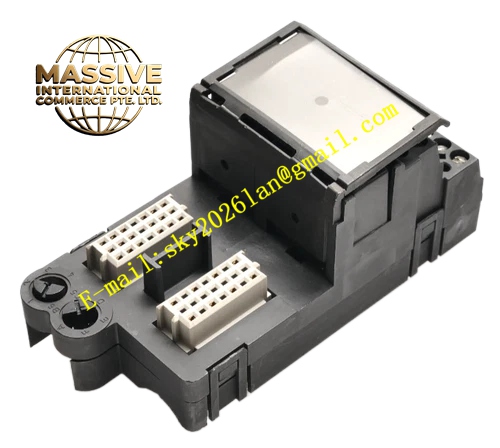

Emerson KJ4001X1-CG1
Technical Specifications:
- Brand: Emerson (DeltaV)
- Model Number: KJ4001X1-CG1
- Product Type: Thermocouple Terminal Block
- System Platform: Emerson DeltaV DCS
- Sensor Compatibility: Thermocouple sensors (various types: J, K, T, E, R, S, B, N)
- Mounting: Carrier-mounted terminal block
Functional Features:
- Thermocouple Signal Interface: Provides dedicated terminals optimized for low-level millivolt thermocouple signals
- Carrier Integration: Mates with DeltaV I/O carriers for direct signal routing to analog input cards
- Cold Junction Compensation Support: Designed to work with I/O cards that provide cold junction compensation
- Secure Wiring: Screw-type terminals ensure reliable connections for thermocouple extension wires
Application Scenarios:
- High-temperature measurement in furnaces, kilns, and boilers
- Reactor temperature monitoring in chemical processing
- Stack gas temperature measurement in power generation
- Heat treatment process control in metals manufacturing
- Any DeltaV installation requiring thermocouple-based temperature measurement
Material Composition:
- Industrial-grade terminal block housing
- Copper alloy screw terminals with corrosion-resistant plating
- PCB interconnect for carrier backplane mating
Structural Features:
- Standard DeltaV terminal block form factor
- Multiple screw terminals for thermocouple lead connections
- Backplane connector for carrier integration
- Labeling area for circuit identification and thermocouple type marking
Working Principle:
The KJ4001X1-CG1 terminal block receives the millivolt signal from field-mounted thermocouple sensors through its screw terminals. The terminal block routes this low-level signal through the carrier backplane to the corresponding analog input card, which performs cold junction compensation and converts the millivolt signal into a temperature reading. The terminal block is a passive interface that maintains signal integrity without active processing.
Installation Requirements:
- Mount the terminal block onto the appropriate DeltaV I/O carrier
- Connect thermocouple extension wires to the designated terminals observing proper polarity
- Use thermocouple-grade extension wire matching the sensor type
- Ensure terminal screws are properly torqued to maintain reliable low-resistance connections
- Route thermocouple cables away from power cables and sources of electromagnetic interference
Usage Precautions:
- De-energize field circuits before making or breaking terminal connections
- Verify thermocouple type matches the I/O card configuration settings
- Do not mix thermocouple wire types in the extension wiring
- Avoid creating additional thermocouple junctions at terminal connections
- Use shielded or twisted-pair thermocouple extension cables in noisy environments
- Inspect terminals periodically for corrosion, which can introduce measurement errors
