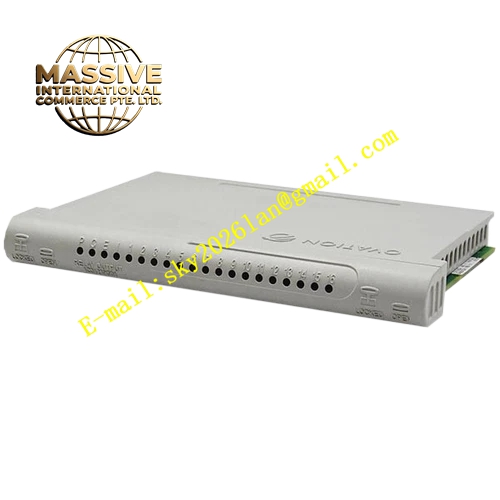

Emerson SP9611
Technical Specifications
- Input Voltage Range: 85VAC ~ 264VAC
- Multiple Isolated DC Output Groups
- Support redundant hot backup parallel operation
- Built‑in overvoltage, undervoltage, overcurrent and overtemperature hardware protection
- Operating Ambient Temperature: 0℃ ~ 60℃
- Storage Temperature: -40℃ ~ 85℃
- Relative Humidity: 5% ~ 95%, non‑condensing
- Rack plug‑in installation structure
- Status LED indicators arranged on front panel
Functional Features
Wide‑range AC input adapts to fluctuation of industrial site power grid. Multiple isolated DC outputs provide power for different circuit parts of rack modules. Redundant parallel design realizes seamless switchover between two power modules when single unit fails. Built‑in hardware protection circuit cuts off output immediately when overvoltage, overcurrent or overtemperature appears. Front panel LED indicators display power running state and fault alarm. Standard plug‑in design supports hot swap under non‑critical process operating conditions.
Application Scenarios
Ovation DCS main control racks in thermal power plants, large chemical plants and pulp mills. It serves as main power source for controller rack and redundant power supply configuration.
Performance Parameters
Power conversion circuit maintains stable DC output under full load within whole working temperature range. Redundant switchover completes in microsecond level without interruption of rack operation. Protection circuit triggers rapidly once parameters exceed safe threshold. Output ripple keeps within low level to reduce interference to control modules.
Material Composition
Flame‑retardant metal housing with surface anti‑corrosion coating. Internal multi‑layer PCB board. High‑frequency transformer, rectifier diodes, filter capacitors, power switching tubes and sampling chips. Gold plated copper alloy backplane connector. Front panel uses flame‑retardant plastic and LED indicators.
Structural Features
Standard plug‑in module for Ovation rack slots. Front panel equipped with power running LED and fault alarm LED. Internal metal shielding structure reduces electromagnetic radiation. Rear gold plated connector mates with Ovation rack backplane. Air inlet and outlet vents are arranged on housing for heat dissipation.
Working Principle
Industrial AC power enters the module through rack backplane connector. AC‑DC conversion circuit converts alternating current into stable direct current after rectification, filtering and voltage regulation. Multiple groups of DC power distribute to each module slot through rack backplane. Sampling circuit continuously monitors output voltage, current and internal temperature. When working parameters exceed preset limit, hardware protection circuit activates and triggers fault alarm signal. Redundant power modules share load in normal state, and healthy unit undertakes full load when one module fails.
Installation Requirements
Cut off rack AC input power before installation. Insert module along rack guide rail into designated power slot and lock mechanical latch. Confirm AC wiring connection meets power specification. Keep air inlet and outlet vents unblocked. Configure redundant power function in DCS engineering station when two power modules are installed.
Precautions for Use
Take anti‑static protection when handling the module. Do not block ventilation vents on module housing. Check AC input cable tightness regularly. Do not disassemble metal housing of power module. Replace module immediately once fault alarm lights up.
