Description

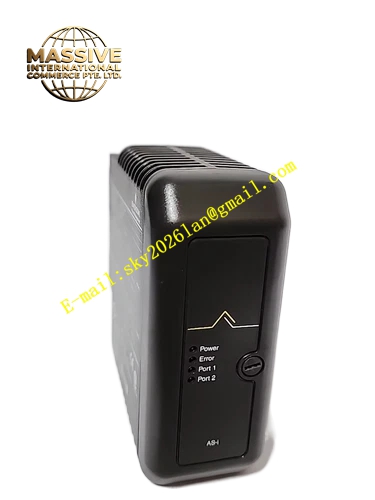

Emerson VE3005 12P2093X072
Technical Specifications
- Communication Function: Data exchange between SIS safety domain and DeltaV DCS network
- Galvanic isolation between safety side and DCS network side
- Operating Ambient Temperature: 0℃ ~ 60℃
- Storage Temperature: -40℃ ~ 85℃
- Relative Humidity: 5% ~ 95%, non-condensing
- Mounting Form: DeltaV SIS rack plug-in card
- Built-in communication channel self-diagnosis
- Protection Grade: IP20
Functional Features Isolated communication circuit separates safety SIS network and non-safety DCS network to avoid cross-domain interference. Transmit SIS running status, fault alarm and safety trip event data to DeltaV DCS operator station. Receive non-safety configuration and diagnostic commands from DCS engineering workstation. Real-time self-diagnosis for communication link state and internal circuit fault. Front panel LED indicators display communication link status and module fault status. Hot swap mechanical structure supports module replacement under permitted maintenance conditions.
Application Scenarios DeltaV SIS safety control cabinets in chemical plants, oil refineries and natural gas processing facilities. It establishes communication link between DeltaV SIS safety instrumented system and DeltaV DCS distributed control system for safety data uploading and diagnostic command transmission.
Performance Parameters Isolation circuit prevents electrical interference between safety network and DCS network. Communication circuit maintains stable data transmission rate between SIS and DCS system. Self-diagnosis circuit detects communication link break and internal circuit fault instantly. Backplane bus realizes reliable data exchange with SIS safety controller. Module keeps stable continuous operation under rated working temperature range.
Material Composition Flame-retardant black engineering plastic front housing with LED indicators. Multi-layer flame-retardant glass-fiber epoxy printed circuit board. Network communication chips, isolation transformers and signal processing chips. Gold-plated copper alloy backplane connector with anti-oxidation coating. High-temperature resistant capacitors and isolation components.
Structural Features Compact plug-in card size matching standard DeltaV SIS rack slot dimension. Front panel equipped with communication status LED and fault alarm LED indicators. Built-in guide rails and spring mechanical latch fix the module firmly inside SIS rack and resist cabinet vibration. Rear gold-plated multi-pin connector completes electrical connection with DeltaV SIS rack backplane. Shell is equipped with large-area heat dissipation slots to realize natural convection cooling inside closed safety cabinet.
Working Principle VE3005 module communicates with SIS safety controller through SIS rack backplane bus and obtains safety system status, alarm and trip data. Internal galvanic isolation circuit separates SIS safety domain and DCS network domain. The module packages safety data and transmits data to DeltaV DCS control network. Non-safety diagnostic and configuration commands from DCS network enter the module through isolated circuit and transmit to SIS controller via backplane bus. Self-diagnosis circuit continuously monitors communication link and internal circuit state. When communication failure or hardware fault occurs, module triggers fault alarm and uploads alarm message to DeltaV system.
Installation Requirements Insert the module along rack guide rail into designated DeltaV SIS rack slot and fully lock mechanical latch. Connect network cable between module and DeltaV DCS control network. Reserve sufficient air circulation space around module, do not block heat dissipation slots on module shell. Complete network parameter configuration and communication verification in DeltaV engineering workstation after hardware installation. Separate safety communication wiring from high-voltage power wiring to avoid electromagnetic interference.
Precautions for Use Carry out anti-static protective measures during module handling; bare hands shall not directly touch gold-plated connector pins. Cut off rack power supply before performing module disassembly work. Verify communication link status after module replacement. Check communication status and alarm information in DeltaV operator station regularly. Do not disassemble module outer housing; internal circuit components have no on-site maintainable spare parts.
