Description

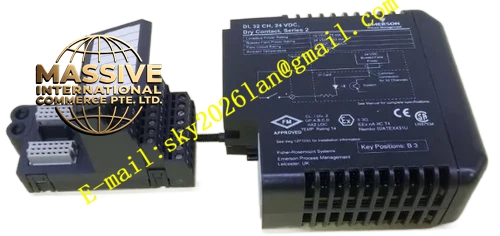

Emerson VE4002S2T2 (12P0556X142)
Technical Specifications
- Supported Signal Type: Discrete digital safety input signal
- Built-in surge suppression protection components
- Operating Ambient Temperature: 0℃ ~ 60℃
- Storage Temperature: -40℃ ~ 85℃
- Relative Humidity: 5% ~ 95%, non-condensing
- Mounting Method: Standard DIN rail installation inside safety control cabinet
- Connection Type: Screw-type wiring terminals
- Mechanical Matching: Compatible with DeltaV SIS digital input plug-in modules
- Protection Grade: IP20
Functional Features Screw terminals realize reliable termination of shielded field safety signal cables and support disassembly during safety system maintenance. Built-in surge suppression elements clamp instantaneous high voltage pulses transmitted from field cables. Internal printed circuit traces transmit field safety input signals upward to DeltaV SIS digital input modules. Precise mechanical positioning ensures complete electrical contact between terminal base and SIS digital input module. Modular structure allows independent replacement of terminal base under permitted maintenance conditions. Dedicated signal isolation design prevents cross-talk between different safety signal loops.
Application Scenarios DeltaV SIS safety control cabinets deployed in chemical plants, oil refineries, natural gas processing facilities and power generation stations. It cooperates with DeltaV SIS digital input modules to collect status signals of emergency stop switches, safety limit switches and process interlock sensors in emergency shutdown loops.
Performance Parameters Internal signal traces maintain low signal attenuation for safety digital signal transmission. Surge protection components suppress transient voltage spikes from field cable lightning induction effectively. Screw terminals sustain stable electrical connection under continuous cabinet vibration. Metal contact pins retain consistent signal transmission performance after repeated plugging of SIS modules. Signal isolation circuit eliminates signal cross interference between adjacent wiring channels.
Material Composition Main body substrate adopts flame-retardant PA engineering plastic. Nickel-plated copper alloy screw terminals with anti-corrosion coating. Multi-layer flame-retardant glass-fiber epoxy printed circuit board as internal substrate. Solid-state surge suppression semiconductor components. Anti-oxidation plated metal positioning contact pins.
Structural Features DIN rail fixed base structure for installation inside safety control cabinet. Front panel arranges multiple screw terminals for field safety signal cables. Top metal contact pins mate with the bottom connector of DeltaV SIS digital input module. Positioning buckles lock the terminal base and achieve accurate alignment with plug-in SIS modules. Built-in cable routing channel keeps field wiring neat inside safety cabinet.
Working Principle Field safety signal cables from safety sensors connect to screw terminals of this terminal base. Safety digital signals pass through built-in surge suppression circuit and internal PCB traces. Signals transmit upward through top metal contact pins to the DeltaV SIS digital input module installed above. Surge suppression components absorb transient overvoltage from field cables to protect SIS module internal circuits. The SIS module reads on-off state of field safety equipment and sends diagnostic and status data to DeltaV safety controller through backplane bus.
Installation Requirements Mount the terminal base on standard DIN rail inside safety control cabinet and lock the mounting buckle. Use shielded twisted-pair cables for field safety signal wiring and tighten each terminal screw to specified torque. Implement single-point grounding of cable shielding layer inside control cabinet only. Verify full contact between top metal pins and SIS digital input module bottom connector after module insertion. Separate safety signal wiring from high-voltage power cables to avoid electromagnetic coupling interference.
Precautions for Use Cut off field loop power before conducting wiring modification work. Inspect terminal screw tightness and cable insulation condition during regular cabinet maintenance cycles. Do not apply voltage exceeding rated range to signal terminals. Keep metal contact pins clean without dust, moisture and metal debris. Do not disassemble or modify the internal circuit of the terminal base.
