Product Introduction:

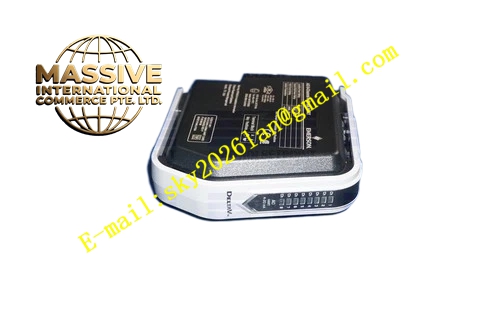

The Emerson VE4005S2B2 is a 16-channel analog output module designed for the DeltaV Series 2 Plus distributed control system. It serves as the interface between the DeltaV controller and field actuators, converting digital control signals from the DCS into precise 4–20mA current loop signals with superimposed HART digital communication. The module is widely deployed in process industries including chemical, oil and gas, power generation, water treatment, and pharmaceuticals for driving control valves, valve positioners, variable frequency drives, and electro-hydraulic actuators.

Request Quote
Category:

Description

Emerson VE4005S2B2 (12P0682X042)

Technical Specifications:

  • Brand: Emerson (DeltaV)
  • Model Number: VE4005S2B2
  • Part Number: 12P0682X042
  • Product Type: 16-Channel Analog Output Module (AO)
  • System Platform: Emerson DeltaV DCS, Series 2 Plus
  • Signal Output: 4–20mA DC (configurable 1–23mA)
  • Resolution: 16-bit D/A conversion
  • Accuracy: ±0.05% full scale
  • Channel Isolation: 1500V DC channel-to-channel and channel-to-backplane
  • Load Capacity: 0–750Ω per channel
  • HART Communication: HART 5/7 compatible
  • System Side Power: 12VDC / approximately 200mA
  • Field Side Power: 24VDC / 300mA
  • Operating Temperature: -40°C to +70°C
  • Storage Temperature: -55°C to +85°C
  • Humidity: 5% to 95% RH (non-condensing)
  • Dimensions: 107 × 41 × 105 mm
  • Weight: 0.23 kg
  • Certifications: FM/ATEX Ex ia intrinsically safe

Functional Features:

  • 16 Isolated Output Channels: Each channel provides independent 4–20mA output with galvanic isolation to prevent cross-channel interference
  • HART Protocol Support: Enables remote configuration, diagnostics, and asset management of HART-enabled field devices
  • High Precision: ±0.05% FS accuracy ensures precise control signal delivery to final control elements
  • Fail-Safe Configuration: Programmable fail-safe current values (3.6mA or 21mA) ensure safe process state during communication loss
  • Hot-Swappable: Supports online module replacement without shutting down the control system
  • Diagnostic Indication: LED indicators provide real-time channel status and fault information

Application Scenarios:

  • Control valve positioning in chemical and petrochemical reactors
  • Valve positioner signal delivery in oil and gas pipelines
  • Variable frequency drive speed control in water treatment plants
  • Electro-hydraulic actuator control in power generation turbines
  • Pharmaceutical batch process final element control
  • Any DeltaV DCS application requiring high-precision analog output with HART diagnostics

Material Composition:

  • Multi-layer industrial-grade PCB with SMT surface-mount components
  • 16-bit D/A converter integrated circuits
  • HART modem circuitry for digital communication overlay
  • Conformal-coated PCB for moisture and chemical resistance
  • Standardized DeltaV modular housing

Structural Features:

  • Compact plug-in module form factor for DeltaV I/O carriers
  • 48-pin high-density terminal connector at the rear
  • Front-panel status LEDs for power, communication, and per-channel diagnostics
  • Backplane connector for system bus power and data
  • Keying mechanism to prevent incorrect slot insertion

Working Principle:
The VE4005S2B2 receives digital control commands from the DeltaV controller via the system backplane. The onboard 16-bit D/A converter translates each digital value into a corresponding 4–20mA analog current signal. The HART modem superimposes a digital communication signal on the analog current loop, enabling bidirectional communication with smart field devices. Each channel operates independently with galvanic isolation, ensuring that a fault on one channel does not affect adjacent channels. The module continuously monitors output current and loop integrity, reporting diagnostics to the controller.

Installation Requirements:

  • Install in a compatible DeltaV I/O carrier with proper backplane engagement
  • Connect field wiring to the 48-pin high-density terminal connector
  • Ensure 24VDC field power supply is properly fused and rated for the total channel load
  • Maintain ambient temperature within -40°C to +70°C
  • Ground the shield layer at one end only (ground resistance ≤4Ω)
  • Maintain minimum 50mm clearance between the module and adjacent equipment for heat dissipation

Usage Precautions:

  • Wear an anti-static wristband during module handling and installation
  • Verify HART communication compatibility with connected field devices before commissioning
  • Configure fail-safe current values according to process safety requirements
  • Do not exceed 750Ω loop resistance per channel
  • Perform annual calibration using a standard signal generator with accuracy ≥0.05%
  • The module contains no user-serviceable parts and shall not be disassembled
