Description

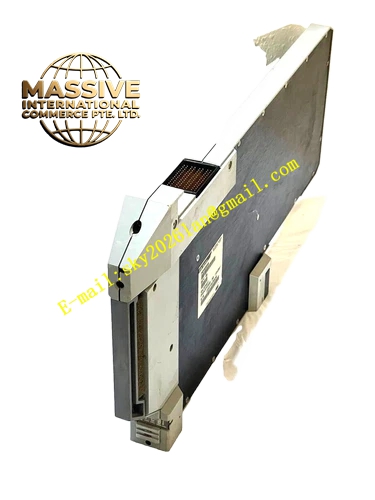

Foxboro IPM2
Technical Specifications
- Input Voltage: Supports wide-range AC or DC input (e.g., 120/240 VAC or 24 VDC).
- Output Voltage: High-precision regulated 5 VDC / 24 VDC output.
- Output Current: High-current output capability to meet multi-module power demands.
- Efficiency: High-efficiency switching power supply design with low heat generation.
Functional Features
- Intelligent Monitoring: Real-time monitoring of output voltage, current, and temperature, reported via the bus.
- Seamless Switching: Supports seamless switching between main power and backup power/batteries.
- Comprehensive Protection: Features overvoltage, overcurrent, short-circuit, and over-temperature protection.
- Hot-Swappable: Supports online replacement without affecting other system modules.
Application Scenarios
Serves as the core power supply unit for Foxboro I/A Series control cabinets, widely applied in all industrial control scenarios requiring highly reliable DC power.
Performance Parameters
- Ripple Noise: Extremely low output ripple protects sensitive electronic equipment.
- Hold-Up Time: Provides sufficient hold-up time during input power loss to complete data saving.
- MTBF: Exceptionally long Mean Time Between Failures.
Material Composition
Constructed with high-quality electrolytic capacitors and magnetic components. The metal housing offers excellent thermal conductivity, with internal potting or coating treatments to enhance vibration resistance and moisture protection.
Structural Characteristics
- Modular Design: Can be paralleled for redundancy to improve system power reliability.
- Wiring Terminals: High-current, shock-proof wiring terminals.
- Status Indicators: Panel LEDs clearly display input, output, fault, and battery statuses.
Working Principle
The IPM2 converts input power into stable DC output via high-frequency switching technology. An internal microcontroller continuously monitors the output status, immediately executing protective measures upon detecting anomalies, and automatically taking over the backup power supply if the main power fails.
Installation Requirements
- Ensure the input power capacity meets the module’s full-load requirements.
- Output cables must use copper wire of sufficient cross-sectional area to minimize voltage drop.
- Installation location must guarantee adequate natural convection or forced air cooling.
Usage Precautions
- Strictly prohibit short-circuiting or overloading the output terminals.
- Regularly inspect the health status of backup batteries and replace them promptly.
- When used in parallel, ensure the current-sharing function is operating normally.
