Description

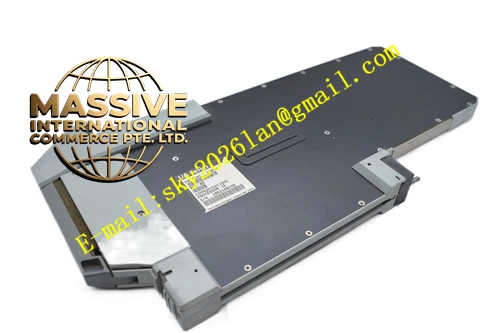

Foxboro P0911SM
Technical Specifications
- Function: System health monitoring, time sync, interface bridging.
- Time Sync Accuracy: Sub-millisecond synchronization via GPS or IRIG-B.
- Diagnostics: Comprehensive hardware and network health reporting.
- Interface: High-speed backplane and external network ports.
Functional Features
- Precision Time Synchronization: Ensures all system events are timestamped accurately for sequence of events (SOE) recording.
- System Watchdog: Monitors controller and network health, triggering alarms on anomalies.
- Data Gateway: Bridges isolated network segments securely.
- Non-Volatile Logging: Stores critical fault data locally for post-event analysis.
Application Scenarios
Essential in power generation, pharmaceutical batch processing, and any application requiring precise event sequencing and system-wide time coherence.
Performance Parameters
- Time Sync Jitter: < 1 ms.
- Logging Capacity: Thousands of event records.
- Operating Temperature: 0°C to 60°C.
Material Composition
Industrial-grade enclosure with conformal-coated electronics for harsh environment resilience.
Structural Characteristics
- Form Factor: Standard I/A Series module.
- Connectors: Time sync input, Ethernet, and backplane interfaces.
- Indicators: Sync status, system health, and fault LEDs.
Working Principle
The module receives a master time reference, distributes it across the backplane, and continuously polls system components for health status. It aggregates this data and provides it to the operator interface for system-wide visibility.
Installation Requirements
- Connect time sync source with proper shielding and termination.
- Install in a slot designated for system modules.
- Ensure battery backup (if applicable) is installed for time retention.
Precautions for Use
- Verify time source configuration before enabling sync.
- Do not disconnect the time sync source during operation.
- Regularly review system health logs for proactive maintenance.
