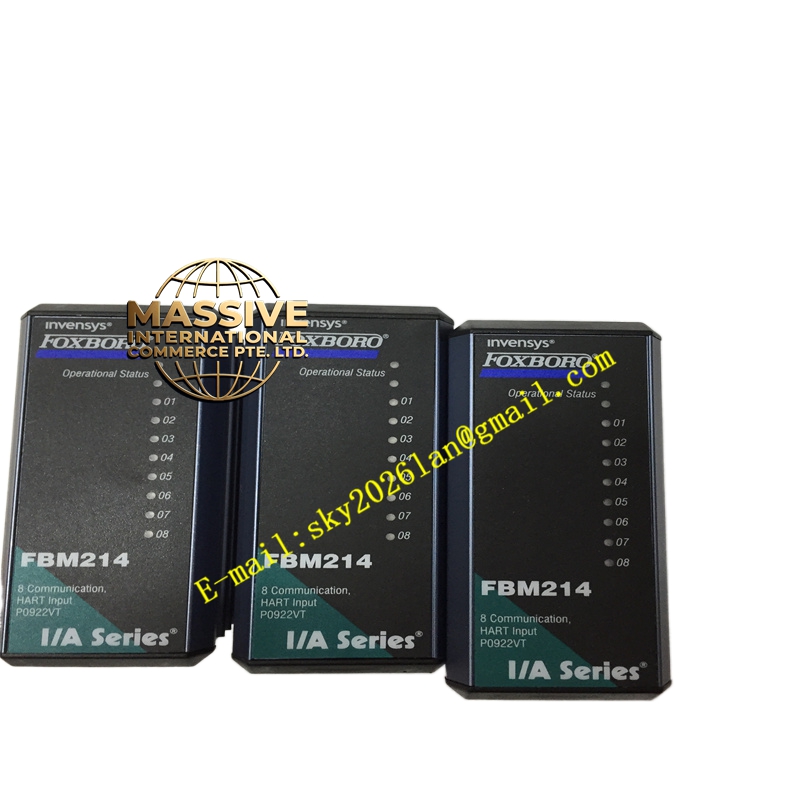

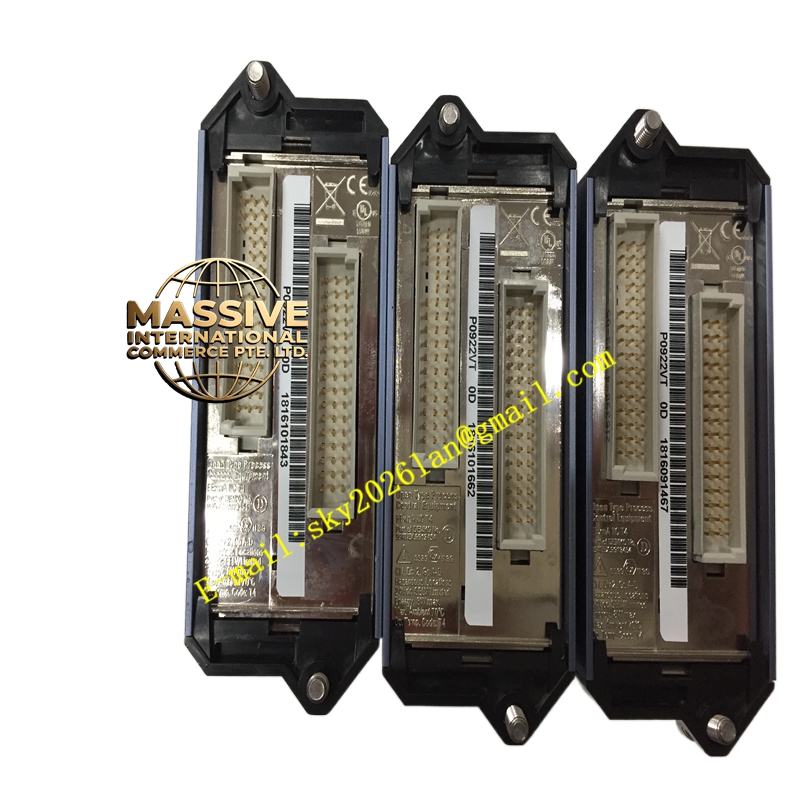

Foxboro FBM214 Technical Specifications:
- Channel Count: 8 independent input channels.
- Communication Protocol: Fully supports HART (Highway Addressable Remote Transducer) protocol.
- Signal Compatibility: 4–20 mA analog signals with superimposed digital communication.
- System Integration: Seamless compatibility with Foxboro I/A Series DCS.
Functional Features:
- Analog/Digital Fusion: Accurately captures both the primary process variable and secondary digital diagnostic data.
- High Precision: Features low-error signal acquisition to minimize fluctuations and ensure data fidelity.
- Self-Diagnosis: Equipped with self-diagnostic and fault alarm functions for proactive maintenance.
- Strong Configurability: Allows users to configure parameters for personalized communication and control needs.
Application Scenarios:
- Smart field device integration in petroleum, chemical, and pharmaceutical plants.
- Predictive maintenance applications requiring real-time instrument health data.
- Upgrading legacy analog loops to smart HART-enabled networks.
Performance Parameters:
- Accuracy: High-precision analog measurement with minimal signal degradation.
- Communication Speed: Reliable HART burst or polling mode operation.
- Reliability: Robust circuit design and anti-interference technology for harsh environments.
Material Composition & Structural Characteristics:
- Components: High-quality integrated circuits optimized for HART signal demodulation.
- PCB: Multi-layer board with dedicated analog and digital ground planes.
- Enclosure: Standard I/A Series module form factor.
Working Principle: The module extracts the 4-20mA analog process variable using standard current-to-voltage conversion. Simultaneously, it utilizes a HART modem to demodulate the high-frequency digital signal superimposed on the current loop. Both the analog value and digital parameters are processed and sent to the controller.
Installation Requirements:
- Install in an available I/A Series DIN rail or rack slot.
- Ensure the loop impedance meets HART protocol requirements (minimum 250 ohms).
- Connect field devices using standard 2-wire configurations.
Usage Precautions:
- Verify that connected field devices are HART-compatible.
- Avoid using capacitive filters on the signal lines, as they can attenuate the HART digital signal.
- Utilize system software to configure HART device parameters and map digital variables.
