Description

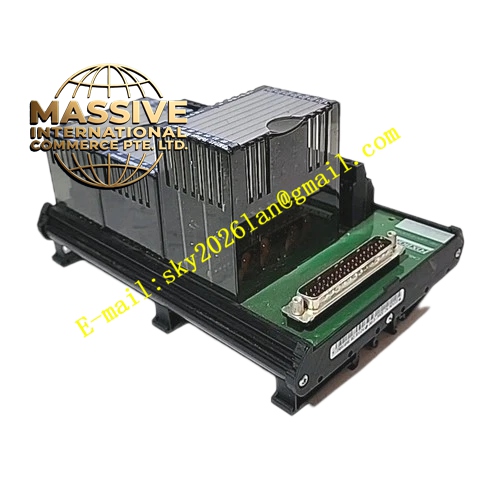

Foxboro P0916DE
Technical Specifications
- Processor: 32-bit industrial-grade RISC processor
- Instruction Execution Speed: 0.1 microseconds per boolean instruction, 0.5 microseconds per floating-point instruction
- Memory Capacity: 8MB program memory, 4MB data memory
- Communication Interfaces: Ethernet 10/100BaseTX, ControlNet, RS-232
Functional Features
- Large-Scale Data Acquisition: Supports up to 32 Series 200 Fieldbus Modules (FBM), expandable to 128 FBMs via the Fieldbus Expansion Module (FEM100).
- High-Speed Network Transmission: Integrates a standard 100Mbps fiber optic Ethernet interface to connect to the Foxboro Evo control network for high-speed data transmission.
- Multi-Protocol Compatibility: Supports Modbus TCP/IP, ControlNet, and Ethernet/IP, ensuring seamless integration with third-party systems.
- High-Reliability Design: Utilizes bit-by-bit matching technology to verify data consistency and prevent erroneous information transmission.
Application Scenarios
Widely applied in oil and gas, chemical processing, and power generation sectors requiring large-scale industrial control and high-reliability guarantees.
Performance Parameters
- Operating Temperature: 0℃ to 60℃
- Storage Temperature: -40℃ to 85℃
- Ingress Protection: IP20
- Power Supply & Consumption: 24VDC power supply, 10W power consumption
Material Composition
Constructed with a robust die-cast aluminum housing to withstand harsh G3-class industrial environments (high dust, strong electromagnetic interference). Internal circuit boards undergo strict industrial-grade protective treatment.
Structural Characteristics
The module measures 140mm × 165mm × 45mm and weighs only 0.6kg. Its compact design, paired with precision backplane connectors, supports hot-swapping during operation.
Working Principle
The 32-bit RISC processor executes control logic at extremely high speeds, reading sensor data from the fieldbus, processing it via floating-point operations, and outputting control commands to actuators while maintaining real-time synchronization with upper-level monitoring systems.
Installation Requirements
Must be installed on a compatible I/A Series controller baseplate. Ensure adequate ventilation within the control cabinet, maintain ambient temperatures between 0℃ and 60℃, and support redundant power configurations.
Usage Precautions
When replacing or maintaining the module, strictly avoid pulling out the main module directly. The corresponding node must first be placed in “Maintenance Mode” within the system software to ensure a safe and smooth transition to the backup module.
