Description

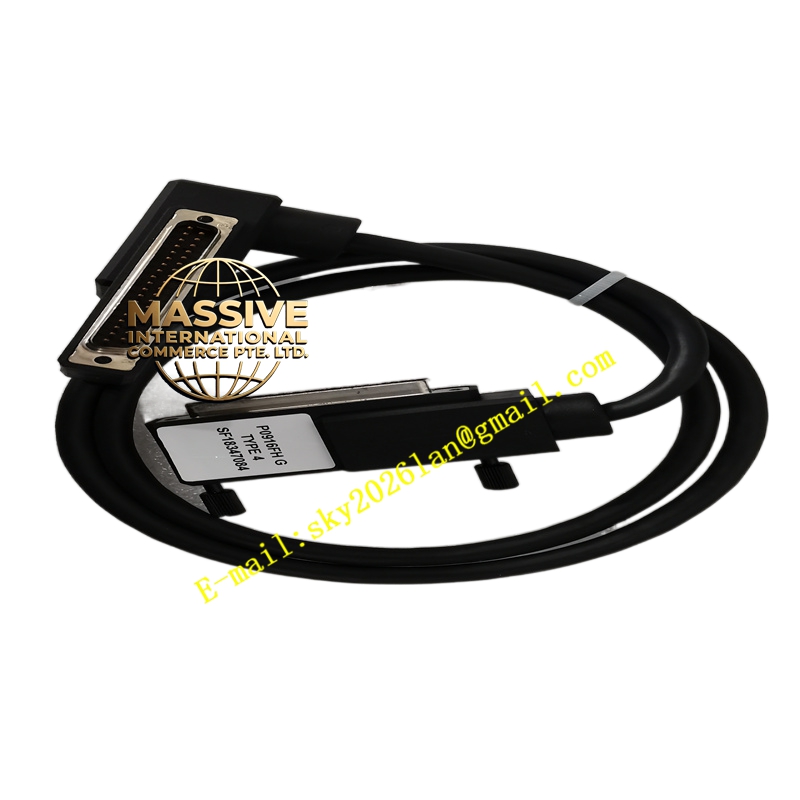

Foxboro P0916FH
- Technical Specifications
- Type: Type 4 Terminal Cable for FBM2xx series
- Cable Length: Typically 1 meter (some variants may differ)
- Connectors: Designed with connectors compatible with FBM2xx modules and corresponding termination assemblies
- Signal Types: Supports digital and analog signals as required by the specific FBM module configuration
- Environmental: Designed for industrial environments with standard temperature and humidity ranges
- Materials: High-quality conductors, insulation, and connector housings suitable for industrial use
- Functional Features
- Provides a factory-made, tested cable solution for FBM2xx modules
- Simplifies installation by eliminating the need for field termination of cables
- Supports the electrical requirements of Type 4 configurations for FBM2xx modules
- Ensures signal integrity and noise immunity through proper shielding and construction
- Application Scenarios
- Connecting FBM2xx I/O modules to termination assemblies in I/A Series cabinets
- Applications requiring specific wiring configurations (Type 4) for FBM2xx modules
- Environments where pre-terminated cables reduce installation errors and improve reliability
- Performance Parameters
- Maintains signal quality and integrity for both analog and digital I/O over the specified length
- Supports the electrical specifications (voltage, current) of the associated FBM modules
- Designed to meet the environmental and mechanical requirements of industrial installations
- Material and Structural Characteristics
- Copper conductors with appropriate gauge for the current levels of FBM2xx I/O
- Insulation and jacket materials resistant to oil, chemicals, and abrasion
- Connector housings designed for secure mating and resistance to vibration
- Working Principle
- The cable conducts electrical signals between FBM2xx modules and termination assemblies. Shielding reduces electromagnetic interference, while connectors ensure reliable contact and alignment for consistent performance.
- Installation Requirements
- Route the cable away from sources of electrical noise
- Ensure connectors are fully inserted and secured
- Follow Foxboro guidelines for cable routing and bend radius
- Use cable ties or clamps to secure the cable and prevent strain on connectors
- Usage Notes
- Inspect cables for damage before installation
- Use only the specified cable type for the FBM module and configuration
- Avoid bending the cable beyond its minimum bend radius
- Replace cables that show signs of wear or damage to maintain system reliability
