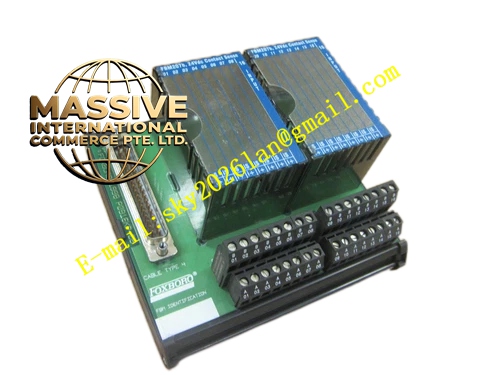

Foxboro P0916WE
Technical Specifications
- Hardware Code: P0916WE.
- Communication Protocol: Redundant 2 Mbps Module Fieldbus.
- Power Supply: 24 VDC backplane power.
- Installation Form: Single-width 200 Series FBM.
Functional Features
- Native Compatibility: Seamless integration with I/A Series controllers.
- Hot-Swappable Maintenance: Online replacement capability.
- Redundancy Ready: Supports redundant I/A nodes for high availability.
- Integrated Diagnostics: Status LEDs and health reporting for simplified巡检.
Application Scenarios
Deployed in oil and gas wellheads, gas compression stations, refinery unit balancing, and utility systems.
Performance Parameters
- Operating Temperature: 0°C to 60°C.
- Protection: Conformal-coated electronics for industrial environments.
Material Composition
Compact single-width enclosure with industrial-grade conformal coating.
Structural Characteristics
- Dimensions: Standard 200 Series FBM size.
- Termination: Flexible field wiring via designated TAs.
Working Principle
Acquires signals from the field TA, digitizes them for the controller, and outputs control signals to field actuators.
Installation Requirements
- Install in a clean, well-ventilated cabinet.
- Ensure backplane connectors are fully aligned and locked.
- Connect field signals to the matching TA.
Precautions for Use
- Verify hardware code to prevent firmware mismatches.
- Maintain low-impedance protective grounding.
- Observe ESD precautions during maintenance.
