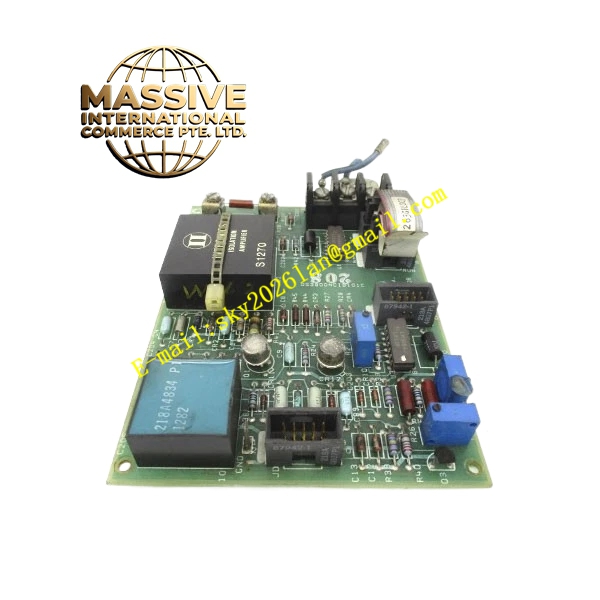

GE DS3800NMEA1J1G
Technical Specifications
- Product Series: Mark IV Turbine Control System
- Board Type: Control / Processing Board
- Compatibility: Mark IV Racks and Backplanes
Functional Features
- Turbine Management: Executes complex control algorithms for turbine speed, load, and temperature.
- Safety Integration: Interfaces with safety trip systems to protect the turbine from catastrophic failure.
- Redundancy Support: Designed to operate within redundant system architectures.
Application Scenarios
Power generation plants, oil and gas compressor stations, and industrial cogeneration facilities.
Performance Parameters
- Reliability: Extremely high Mean Time Between Failures (MTBF).
- Processing Speed: Deterministic real-time execution for critical control loops.
Material Composition
Industrial-grade PCB with protective conformal coating to resist moisture, sulfur, and conductive dust.
Structural Characteristics
Standard Mark IV board size with rear backplane connectors and front-panel diagnostic LEDs.
Working Principle
Acquires sensor data from the turbine, executes the control logic, and sends output commands to servo valves, relays, and actuators.
Installation Requirements
Install only in the designated slot within the Mark IV rack. Ensure the board is fully seated and locking mechanisms are engaged.
Usage Precautions
Never remove the board while the Mark V/IV system is powered. Follow all Lockout/Tagout (LOTO) procedures.
