Description

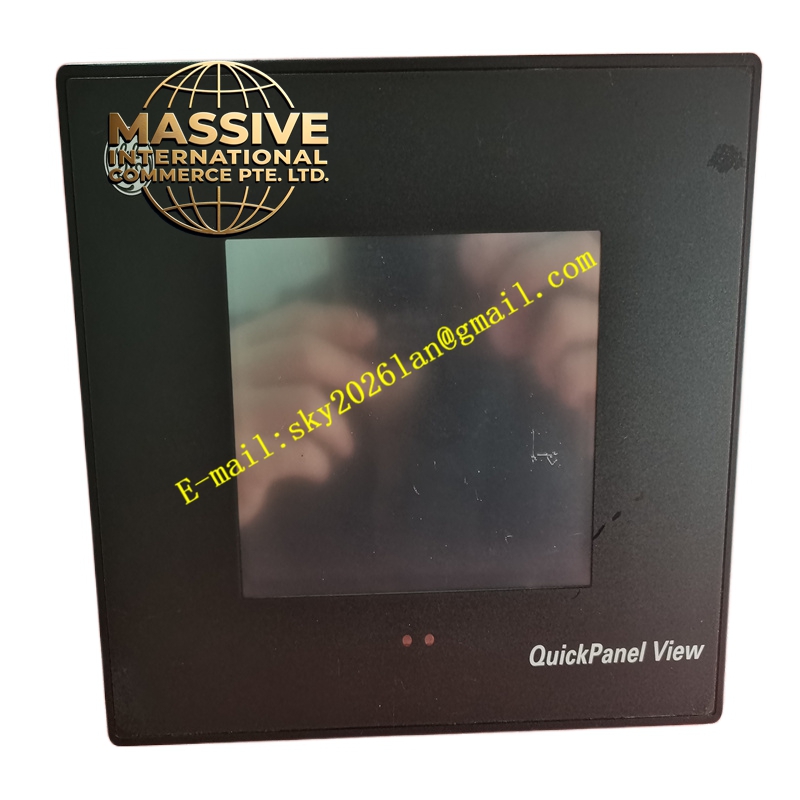

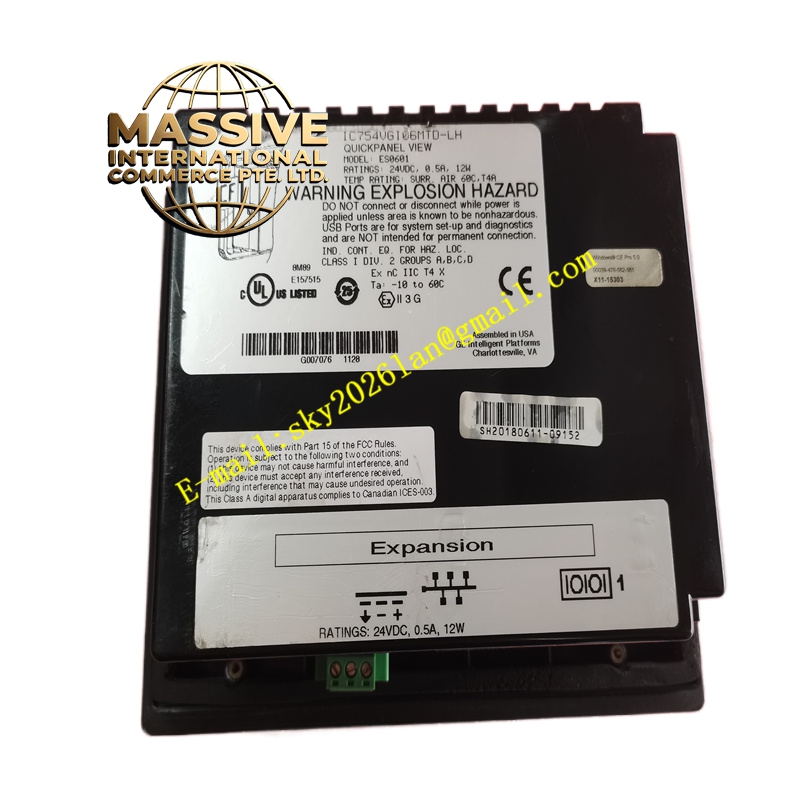

GE IC754VGI06MTD
Technical Specifications:
- Display Size: 5.75 to 6 inches
- Type: Color TFT LCD
- Resolution: 320 × 240 or 640 × 480 (variant dependent)
- Touch Type: Resistive touchscreen
- Interfaces: Ethernet (10/100 Mbps), RS-232, USB (depending on variant)
- Supply Voltage: 12–24 VDC (typical)
- Operating Temperature: 0 °C to 50 °C (see variant-specific datasheet)
- Environment: Designed for industrial use with options for enhanced sealing
Functional Features:
- High-resolution color display for clear visualization
- Supports multiple industrial protocols (Modbus TCP, Ethernet/IP, etc.)
- Durable touchscreen supports operation with gloves
- LED indicators for status monitoring
- Compatible with Proficy View Machine Edition for application development
Application Scenarios:
- Operator stations for machines and production lines
- Process visualization in manufacturing and energy industries
- Remote monitoring terminals in distributed systems
- Replacement or upgrade for legacy HMI panels
Performance Parameters:
- Fast screen refresh and touch response
- Reliable communication under high network load
- Long backlight life for reduced maintenance
Material and Structural Characteristics:
- Rugged front panel with industrial-grade components
- Enclosure designed to withstand vibration and shock
- Sealed design to resist dust and moisture (IP65 rating typical)
Working Principle: The unit displays graphic screens created in HMI software, reflecting real-time process data from connected controllers. Operator inputs via the touchscreen are converted into commands sent to controllers, enabling interactive control. Installation Requirements:
- Panel mount using specified cutout dimensions
- Connect power and communication cables per wiring diagrams
- Configure IP addresses and protocol settings
- Ensure proper grounding and shielding for communication lines
Usage Notes:
- Avoid exposing the unit to direct sunlight or extreme temperatures
- Follow proper cleaning procedures for the touchscreen
- Verify communication settings before commissioning
- Keep firmware and HMI applications updated for compatibility and security
