Description

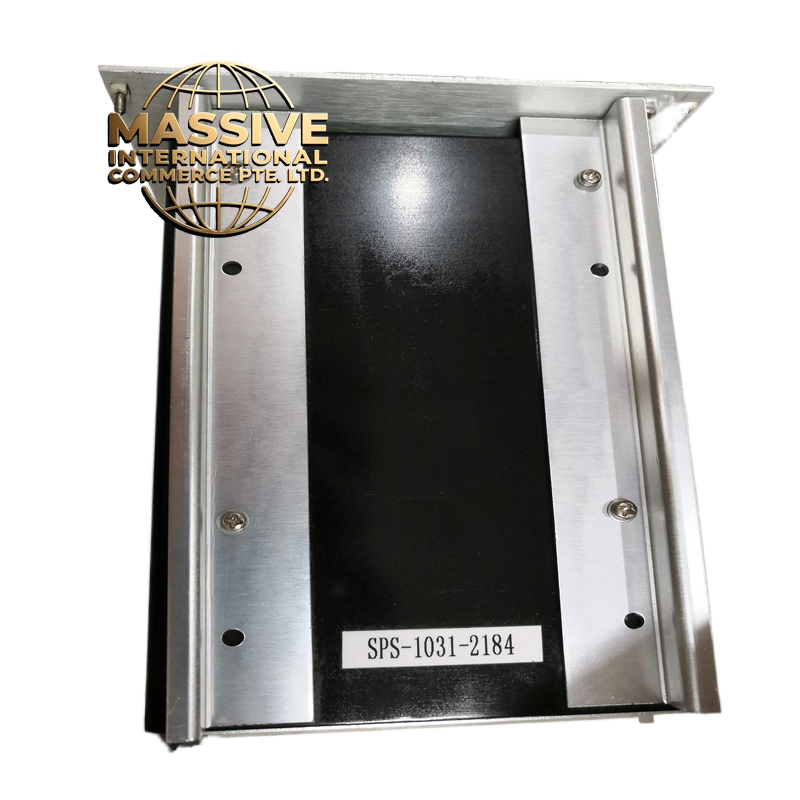

GE WESDAC D20 PS Technical Specifications:
- Input Voltage: Universal AC input (e.g., 85-264 VAC) or wide-range DC input.
- Output Voltages: Regulated +5V, +12V, and -12V DC outputs.
- Power Rating: Sufficient wattage to power a fully loaded D20 chassis.
- Ride-Through: Capacitor bank designed to ride through brief power interruptions.
Functional Features:
- Overcurrent Protection: Electronic foldback current limiting to protect against short circuits.
- Overvoltage Protection: Crowbar circuit to clamp output voltage in case of regulator failure.
- Power Good Signal: Discrete output indicating when all rails are within regulation.
- Hot-Swappable: Designed for replacement without shutting down redundant systems.
Application Scenarios:
- Powering WESDAC D20 turbine and engine control panels.
- Backup power supply in redundant control architectures.
- Industrial control panels requiring regulated low-voltage DC.
Performance Parameters:
- Regulation: Tight voltage regulation under varying load conditions.
- Ripple & Noise: Low output ripple to prevent interference with sensitive analog I/O.
- Efficiency: High-efficiency switching topology to reduce heat generation.
- MTBF: High reliability for continuous industrial operation.
Material Composition & Structural Characteristics:
- Enclosure: Metal chassis with DIN rail or panel mounting holes.
- Components: Industrial-grade electrolytic capacitors, MOSFETs, and high-frequency transformers.
- Cooling: Convection-cooled with internal heat sinks.
- Terminals: Heavy-duty screw terminals for field wiring.
Working Principle: The power supply rectifies and filters the incoming AC voltage, then uses a high-frequency switching regulator to step down the voltage. Feedback loops continuously monitor the output and adjust the switching duty cycle to maintain precise voltage levels despite input fluctuations or load changes.
Installation Requirements:
- Ventilation: Provide adequate clearance above and below the unit for natural convection cooling.
- Wiring: Use appropriately sized wire for the input and output connections.
- Fusing: Install an external circuit breaker or fuse on the input side.
- Grounding: Connect the chassis ground terminal to earth ground.
Usage Precautions:
- Capacitor Discharge: Wait at least 5 minutes after power-off before servicing to allow capacitors to discharge.
- Load Matching: Calculate the total load of all D20 modules to ensure the power supply is not overloaded.
- Fuse Replacement: Only replace internal fuses with the exact same type and rating.
- Environment: Do not install in environments with excessive dust, moisture, or corrosive gases.
