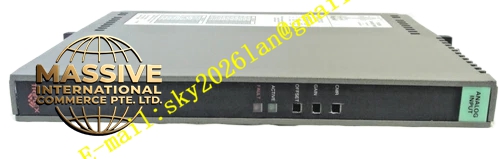

ICS Triplex T3481A
Technical Specifications & Performance Parameters:
- Power Supply: 20 V DC ~ 32 V DC backplane power feeding, nominal 24 V DC
- Channel Count: 8 analog output channels
- Output Signal Ranges: 0‑20 mA, 4‑20 mA
- Output Accuracy: ±0.08 % full scale
- Galvanic Isolation Rating: 3000 V between field‑side and internal safety bus
- Load Impedance: 0‑750 Ω per channel
- Operating Temperature: ‑40 °C ~ +70 °C
- Storage Temperature: ‑40 °C ~ +85 °C
- Safety Certification: TÜV IEC 61508 SIL 3
- Maximum Power Consumption: 18.5 W
- Weight: 1.09 kg
- Form Factor: Standard Regent‑Plus rack plug‑in module
Functional Features:
- Triple‑redundant D/A conversion and drive circuit for each channel, hardware 2‑out‑of‑3 voting
- Elevated galvanic‑isolation capability, suppress ground‑loop interference from distributed field devices
- Comprehensive loop diagnostics covering open‑circuit, short‑circuit and loop leakage‑current detection
- Hot‑swap support for online module replacement
- Configurable fail‑safe output current value via configuration software
- Front‑panel LED indicators show channel operating status, module health and fault alarm
- Timestamped fault‑event upload to system fault historian
- Enhanced EMC surge‑protection circuit for field‑transient‑voltage disturbance
Working Principle: Safety processor sends digital control commands through rack backplane bus to T3481A. Three independent D/A sub‑circuits produce analog current outputs synchronously. Hardware voting circuit confirms valid output value, high‑strength isolation unit isolates field loop from internal safety bus. Diagnostic circuit monitors loop impedance and current characteristics continuously. Upon fault detection, module generates timestamped fault record and executes preset fail‑safe output state. Single sub‑circuit failure gets isolated automatically without degrading channel output performance.
Material Composition & Structural Characteristics:
- Housing: Die‑cast aluminum alloy anti‑interference shell with enhanced anti‑vibration treatment
- Circuit substrate: Multi‑layer FR‑4 industrial PCB, integrate high‑voltage‑grade isolation components
- Connectors: Gold‑plated anti‑vibration backplane connector and field‑signal high‑density terminal block
- Front panel: Flame‑retardant PC engineering plastic with LED indicator array, IP20 protection grade
- Plug‑in card‑type rack‑slot structure
Installation Requirements:
- Install module to analog‑output slot of Regent‑Plus main rack or expander rack, fasten front‑panel locking screws
- Field analog‑output cables adopt shielded twisted‑pair cables, keep safe separation from high‑voltage power cables
- Cable shielding layer single‑end grounded at cabinet ground bus‑bar
- Cabinet protective ground resistance ≤4 Ω
- Ensure cabinet ventilation and heat‑dissipation performance
- Field actuator loop load impedance must comply with module specification limits
Application Scenarios:
- Distributed large‑scale petrochemical SIS system analog‑output control
- Field sites with prominent ground‑potential difference interference
- Off‑shore platform distributed safety‑instrumented‑system analog adjustment output
- Chemical plants with scattered field‑installation locations
- Power‑plant multi‑workshop distributed safety‑control analog‑loop output
Usage Notes:
- Hot‑swap operation only permitted under normal system health status
- Module shell disassembly is forbidden; zero user‑serviceable internal components
- Prevent field‑side output‑loop short‑circuit condition
- After module replacement, complete channel output‑accuracy calibration and diagnostic‑function verification
- Operate strictly within rated operating temperature range
- Periodically inspect field‑cable insulation and terminal fastening status
