Description

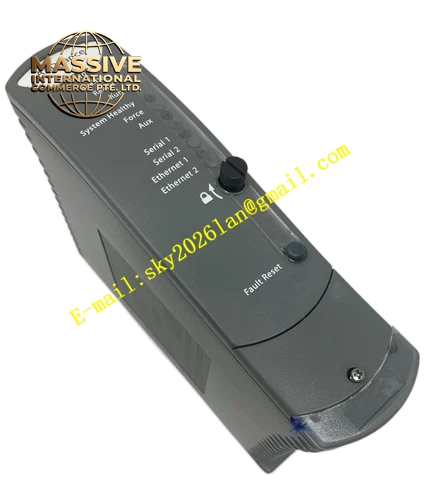

ICS Triplex T9110
Technical Specifications Triple‑modular‑redundant‑processor‑architecture;‑supports‑IEC 61131‑3‑programming‑standard;‑multiple‑Ethernet‑communication‑ports‑and‑serial‑communication‑interfaces;‑hot‑swap‑supported;‑power‑supply‑18‑32 VDC‑from‑base‑unit‑backplane;‑operating‑temperature‑‑20 °C‑~‑+60 °C;‑protection‑rating‑IP20;‑front‑panel‑multi‑color‑LED‑indicators‑for‑health,‑run‑and‑fault‑status;‑supports‑SOE‑sequence‑of‑event‑recording‑with‑1 ms‑time‑resolution.
Functional Features Triplicated‑processor‑channels‑run‑safety‑logic‑in‑parallel‑and‑realize‑hardware‑2‑out‑of‑3‑voting;‑comprehensive‑hardware‑diagnostics‑detect‑CPU,‑memory‑and‑bus‑circuit‑faults;‑supports‑SOE‑event‑recording‑with‑1 ms‑time‑stamp‑accuracy;‑hot‑swap‑capable‑for‑redundant‑configuration‑without‑system‑shutdown;‑multi‑processor‑redundant‑network‑deployment‑is‑supported;‑rich‑communication‑interfaces‑realize‑data‑interaction‑with‑DCS,‑HMI‑and‑upper‑monitoring‑systems;‑front‑panel‑LED‑indicators‑directly‑reflect‑processor‑running‑and‑fault‑status.
Application Scenarios AADvance‑SIS‑system‑main‑controller‑unit‑for‑petrochemical‑plants;‑ESD‑emergency‑shutdown‑system‑core‑logic‑processor;‑fire‑and‑gas‑safety‑control‑system‑controller‑hardware;‑power‑plant‑auxiliary‑equipment‑safety‑protection‑system‑main‑processor‑module.
Performance Parameters User‑logic‑scan‑cycle‑configurable;‑SOE‑time‑stamp‑resolution‑1 ms;‑hardware‑diagnostic‑coverage‑meets‑SIL 3‑safety‑index;‑communication‑port‑supports‑Modbus‑TCP‑and‑other‑industrial‑protocols.
Material Composition Metal‑shielded‑module‑housing,‑FR‑4‑multi‑layer‑high‑reliability‑printed‑circuit‑board,‑gold‑plated‑backplane‑connectors,‑triplicated‑industrial‑processor‑chips,‑large‑capacity‑flash‑and‑RAM‑memory‑chips,‑surge‑suppression‑components,‑multi‑color‑LED‑status‑indicator‑group.
Structural Characteristics Plug‑in‑module‑for‑processor‑slot‑of‑T9100‑series‑base‑unit;‑front‑panel‑equipped‑with‑multiple‑status‑LED‑indicators‑and‑communication‑port‑interfaces;‑rear‑side‑high‑density‑triplicated‑backplane‑connector‑realizes‑power‑supply‑and‑signal‑interaction‑with‑base‑unit;‑internal‑triplicated‑processor‑circuit‑adopts‑partition‑layout;‑metal‑housing‑provides‑electromagnetic‑shielding.
Working Principle Triplicated‑processor‑units‑simultaneously‑load‑and‑execute‑user‑safety‑logic‑programs.‑I/O‑data‑collected‑from‑triplicated‑backplane‑bus‑is‑processed‑by‑three‑processor‑channels‑and‑voted‑through‑hardware‑2‑out‑of‑3‑mechanism‑to‑output‑effective‑control‑commands.‑Built‑in‑diagnostic‑circuit‑continuously‑detects‑hardware‑fault‑status‑and‑uploads‑fault‑alarms‑to‑system‑and‑drives‑front‑panel‑LED‑indicators.‑Communication‑interfaces‑complete‑protocol‑conversion‑and‑data‑exchange‑with‑external‑upper‑systems.
Installation Requirements Insert‑module‑into‑processor‑designated‑slot‑of‑T9100‑or‑T9100‑01‑base‑unit;‑fasten‑module‑mechanical‑lock‑after‑insertion‑to‑ensure‑backplane‑connector‑fully‑engaged;‑base‑unit‑shall‑be‑provided‑with‑stable‑redundant‑24 VDC‑power‑supply;‑base‑unit‑metal‑frame‑reliably‑connect‑to‑cabinet‑protective‑ground‑bar;‑complete‑redundancy‑configuration‑setting‑according‑to‑hardware‑manual‑when‑multiple‑processors‑are‑deployed;‑confirm‑hardware‑address‑configuration‑before‑downloading‑user‑logic‑program.
Usage Notes Only‑install‑into‑processor‑slot‑of‑AADvance‑compatible‑base‑unit;‑do‑not‑remove‑metal‑housing‑under‑power‑on‑condition;‑program‑download‑and‑online‑modification‑shall‑follow‑safety‑system‑operation‑specifications;‑avoid‑condensation,‑corrosive‑gas‑and‑strong‑electromagnetic‑interference‑inside‑cabinet;‑periodically‑check‑processor‑running‑status‑via‑front‑panel‑LED‑indicators;‑strictly‑execute‑official‑maintenance‑procedure‑for‑processor‑hot‑swap‑operation.
