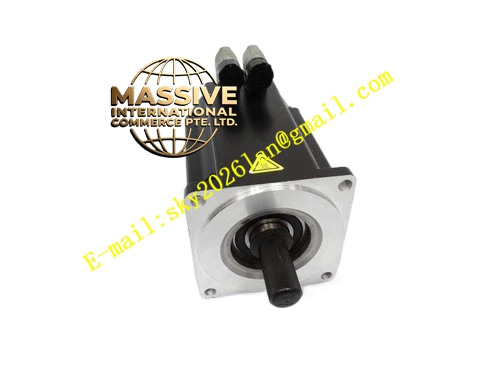

Kollmorgen AKM64L-GCFNR-00
Technical Specifications
- Motor Type: Brushless DC permanent magnet synchronous motor
- Frame Size: 64 millimeter outer diameter with long stack configuration
- Flange Size: 165 millimeter heavy-duty mounting flange
- Continuous Torque: 1.4 Newton-meters
- Peak Torque: 4.2 Newton-meters for 10 seconds duration
- Rated Speed: 3000 RPM continuous
- Maximum Speed: 5000 RPM
- Rated Voltage: 48 volts DC bus
- Continuous Current: 4.0 amperes
- Peak Current: 12 amperes
- Torque Constant: 0.35 Newton-meters per ampere
- Back-EMF Constant: 35 volts per 1000 RPM
- Rotor Inertia: Approximately 38 gram-centimeters squared
- Feedback Device: Incremental encoder with 2500 lines, providing 10000 counts per revolution in quadrature
- Encoder Type: A, B, Z channels with RS-422 differential line driver output
- Shaft Type: Smooth round shaft, 8 millimeter diameter, with keyway
- Protection Rating: IP65 sealed construction
Functional Features
- Rare-earth neodymium magnets for high torque density
- Low inertia rotor for fast dynamic response
- IP65 sealed construction protecting against dust and washdown
- Class H insulation rated for 180 degrees Celsius
- Sealed ball bearings with lifetime lubrication
- IP65 lip seal on output shaft
- M23 rear-mounted connector for power and feedback
Application Scenarios
- Industrial automation and robotics
- CNC machine tools
- Packaging machinery
- Semiconductor manufacturing equipment
- Automated guided vehicles
- Conveyor systems
- Printing machinery
Performance Parameters
- High torque density delivering 1.4 Newton-meters continuous in a 64 millimeter frame
- 3:1 peak-to-continuous torque ratio for high acceleration
- Fast dynamic response from low inertia rotor design
- Precise position feedback with 10000 counts per revolution resolution
Material Composition and Structure
- Housing: Aluminum alloy 6061-T6 with black anodized finish
- Shaft: Hardened stainless steel 17-4PH
- Magnets: Neodymium iron boron N42SH grade
- Windings: Class H insulation with copper wire
- Bearings: Sealed ball bearings, front and rear, lifetime lubricated
- Seal: IP65 lip seal on output shaft
Working Principle The motor uses electronic commutation where a three-phase inverter servo drive energizes the stator windings in sequence based on rotor position feedback from the incremental encoder. The interaction between the stator’s rotating magnetic field and the permanent magnets on the rotor produces continuous torque. The encoder provides position and velocity feedback for closed-loop servo control, enabling precise motion profiles and disturbance rejection.
Installation Requirements
- Mount with flexible coupling allowing misalignment tolerance less than 0.1 millimeters angular and 0.05 millimeters parallel
- Do not exceed 5000 RPM under any operating condition
- Ensure connector is sealed when operating in washdown environments
- Use shielded motor cable with maximum 15 meter length without additional drive-side filtering
Operating Precautions
- Verify drive voltage and current compatibility with motor ratings
- Monitor bearing temperature during sustained high-speed operation
- Maintain IP65 seal integrity by ensuring connector covers are properly seated
- Avoid mechanical shock to shaft during installation
