Description

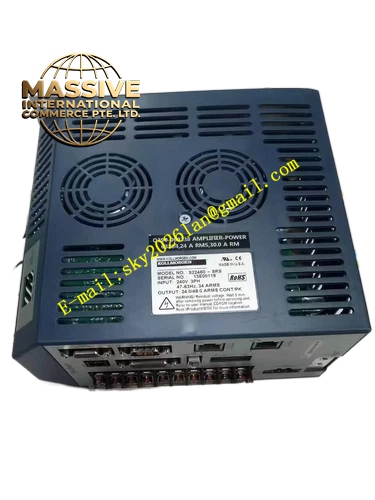

Kollmorgen S22460-SRS
Technical Specifications
- Product Series: SERVOSTAR S200
- Input Voltage: 120/240VAC and 20–90VDC
- Feedback Resolution: 24-bit high-resolution
- Current Loop Bandwidth: 3–5kHz
- Speed Loop Bandwidth: 800Hz
- Synchronization Error: <1μs
- Control Modes: Current, speed, position control
- Communication: EtherCAT, CANopen, RS-485, SynqNet (optional)
- Positioning Accuracy: ±0.001mm
- Efficiency: ≥95%
- Dimensions: 100mm × 70mm × 25mm
- Protection Standards: UL508C, CE, EN50178, EN61800, Semi F47
Functional Features
- 800Hz Speed Loop Bandwidth: Industry-leading dynamic performance with <1μs synchronization error
- 24-Bit High-Resolution Feedback: Adaptive notch filter suppresses mechanical resonance, reducing trajectory deviation by 40%
- Keep Alive Emergency Power: Recovers operation within 0.5 seconds after emergency stop
- Industrial-Grade Robust Design: Aluminum-magnesium alloy housing passes 10g/200Hz random vibration certification (IEC 60068-2-64)
- Triple Protection Mechanism: Real-time overvoltage, overcurrent, and overtemperature monitoring (IEC 61800-5-1)
- Low-Temperature Cold Start: -20°C cold start capability for extreme environment stability
- Open Ecosystem Integration: Native compatibility with Siemens and Rockwell PLCs, one-click electronic gear/cam curve configuration
- Automation Suite Development Environment: Supports custom PID algorithms and safety protocols (STO/Safe Motion)
Application Scenarios
- Industrial Robot Joint Drive: Provides 120A peak current for high-speed grabbing with ±0.01mm repeat positioning accuracy
- Semiconductor Manufacturing Equipment: Drives wafer stage precision motion with ±0.001mm step positioning
- Medical Imaging Systems: Controls CT scanner slip ring at 3000rpm constant speed for zero motion artifact imaging
- High-Speed Printing Machinery: Electronic gear synchronizes multiple tension rollers with <0.01mm color registration error
- CNC Machine Tools: High-precision position and speed control for tool and workpiece
- Industrial Automation: Conveyor, filling, and packaging machinery control
Performance Parameters
- Positioning Accuracy: ±0.001mm
- Speed Loop Bandwidth: 800Hz
- Current Loop Bandwidth: 3–5kHz
- System Efficiency: ≥95%
- Synchronization Error: <1μs
Material Composition
Aluminum-magnesium alloy housing with industrial-grade power electronics. The compact structure optimizes control cabinet space utilization.
