Description

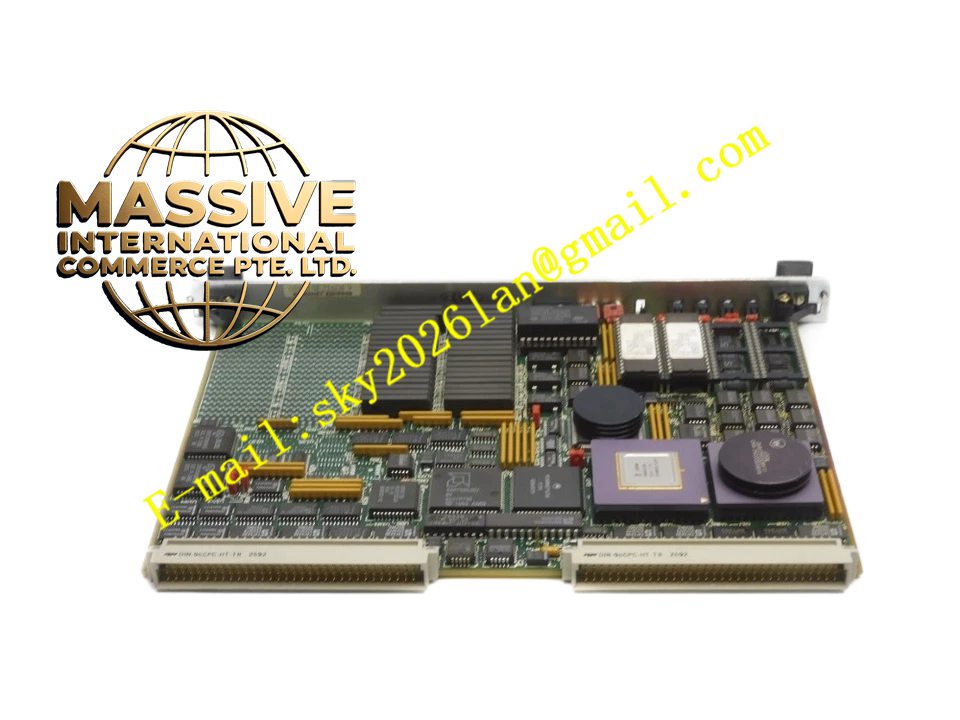

Motorola MVME147A0-60063-1
Technical Specifications:
- Brand: Motorola
- Model: MVME147A0-60063-1
- Product Type: Embedded SBC
- Processor Architecture: Motorola 680×0 Series
Functional Features:
- Rich Legacy Interfaces: Onboard multiple RS-232/422/485 serial ports, parallel ports, and discrete I/O.
- Extreme Real-Time Performance: Designed specifically for hard real-time control applications with extremely short interrupt response times.
- Long Lifecycle Support: Offers decades-long spare parts and documentation support.
Application Scenarios:
Factory automation, process control (DCS/PLC), transportation signal control, and scientific instrumentation.
Performance Parameters:
Operates at moderate clock frequencies but offers extremely low jitter and deterministic real-time response.
Material Composition:
Wide-temperature industrial electronic components with thick gold fingers.
Structural Characteristics:
Typically Eurocard or Compact dimensions, featuring numerous DB9/DB25 interface panels.
Working Principle:
Runs real-time operating systems like OS-9 or VxWorks, directly controlling hardware registers through low-level drivers to achieve precise timing control of industrial equipment.
Installation Requirements:
Onboard DIP switches must be configured correctly to set the base address and interrupt vectors.
Precautions for Use:
As this board is of an older generation, care must be taken to prevent leakage when replacing the CMOS battery; strict anti-static and moisture-proof measures are required.
