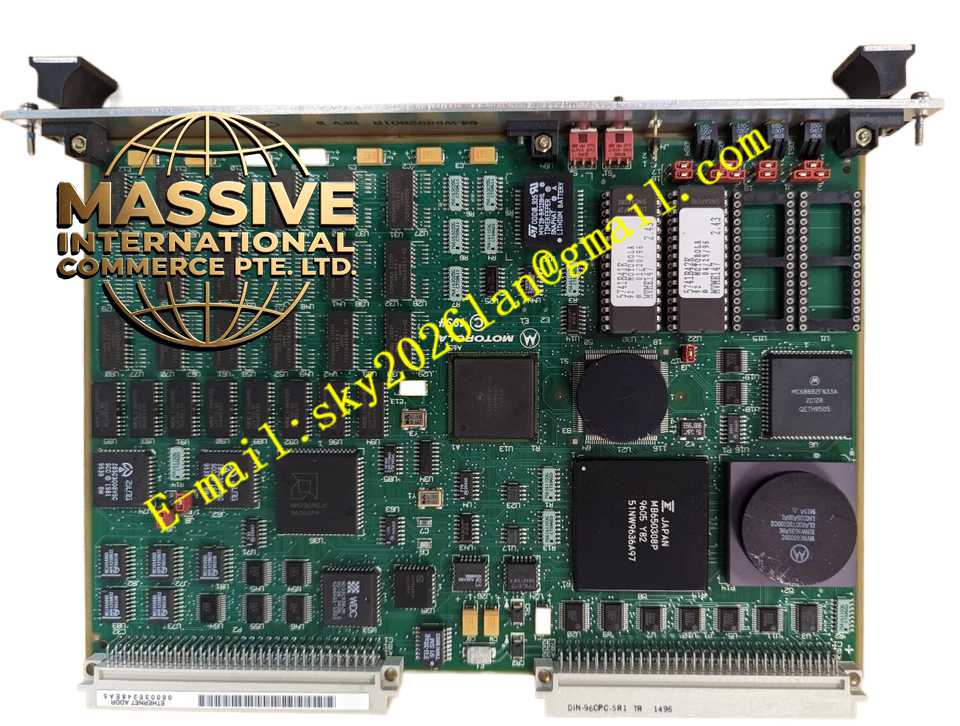

Motorola MVME162-532
Technical Specifications
- Processor: High-speed MC68040 with floating-point coprocessor.
- Onboard Peripherals: Integrates Ethernet, SCSI, and multi-port serial.
- Memory: High-capacity DRAM and Flash.
- Expansion: Supports IndustryPack modules.
Functional Features
- Floating-Point Operations: Built-in FPU accelerates complex mathematical operations and scientific computing.
- High-Speed DMA: Supports 32-bit local bus burst DMA to enhance data throughput.
- High Integration: Single card achieves control, communication, and storage functions.
- System Control: Can function as a VME system controller, managing bus arbitration.
Application Scenarios
Radar data preprocessing, flight control and navigation systems, high-precision test instruments, and data recording systems.
Performance Parameters
- Network Speed: 10Base-T Ethernet.
- Storage Interface: SCSI-2 supporting high-speed data transfer.
Material Composition
High-quality PCB integrating high-density ASIC chips; critical components use military-grade or industrial-grade standards.
Structural Characteristics
Front panel provides RJ-45 network port, DB-25 SCSI port, and serial ports, with a sturdy metal front panel.
Working Principle
Utilizes the MC68040’s built-in cache and FPU to rapidly process sensor data and transmit results to the host computer via the VME bus.
Installation Requirements
- Ensure the backplane supports system controller functions (if required).
- Observe cable length and termination matching when connecting SCSI devices.
Usage Precautions
- Avoid use in strong magnetic field environments.
- Avoid hot-plugging SCSI devices.
