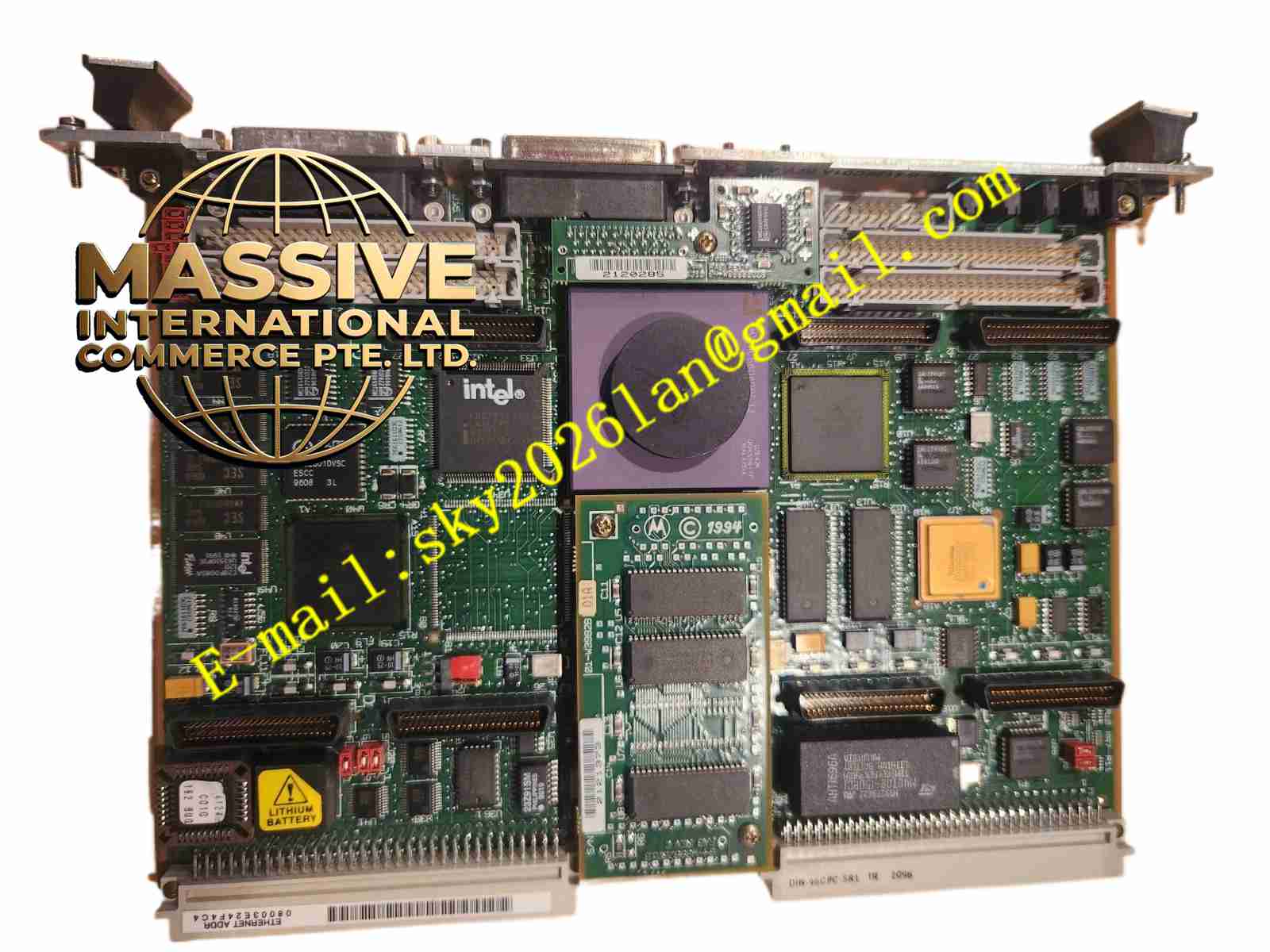

Motorola MVME162-863
Technical Specifications
- Processor: 32 MHz MC68040/MC68LC040.
- Memory: 16MB ECC DRAM.
- Storage: 1MB Flash, 512KB SRAM, 8K NVRAM.
- Bus: VMEbus A32/D64 system controller.
Functional Features
- ECC Memory: Hardware error correction for critical data paths.
- Integrated Peripherals: Ethernet, SCSI, and dual serial ports.
- IndustryPack Support: Four 16-bit or two 32-bit IP slots.
- Real-Time Clock: Battery-backed TOD clock.
Application Scenarios
Industrial process control, automated test equipment (ATE), telecommunications infrastructure, and defense ground systems.
Performance Parameters
- Power: +5V @ 3.5A typical.
- Temperature: 0°C to 70°C operating (forced air).
- VME Compliance: IEEE 1014-1987.
Material Composition
Industrial-grade PCB with ECC DRAM, MC68040 CPU, and ASICs.
Structural Characteristics
6U Double-high VME board with P1/P2 connectors and front-panel indicators.
Working Principle
MC68040 processor accesses 16MB ECC DRAM via local bus. ASICs handle VME arbitration, DMA, and peripheral management.
Installation Requirements
- Proper VME slot insertion and front-panel screw tightening.
- Correct hardware switch configuration for 16MB ECC.
- Adequate forced-air cooling.
Usage Precautions
- No hot-swapping.
-防静电 (ESD) protection required. - Regular battery maintenance.
