Description

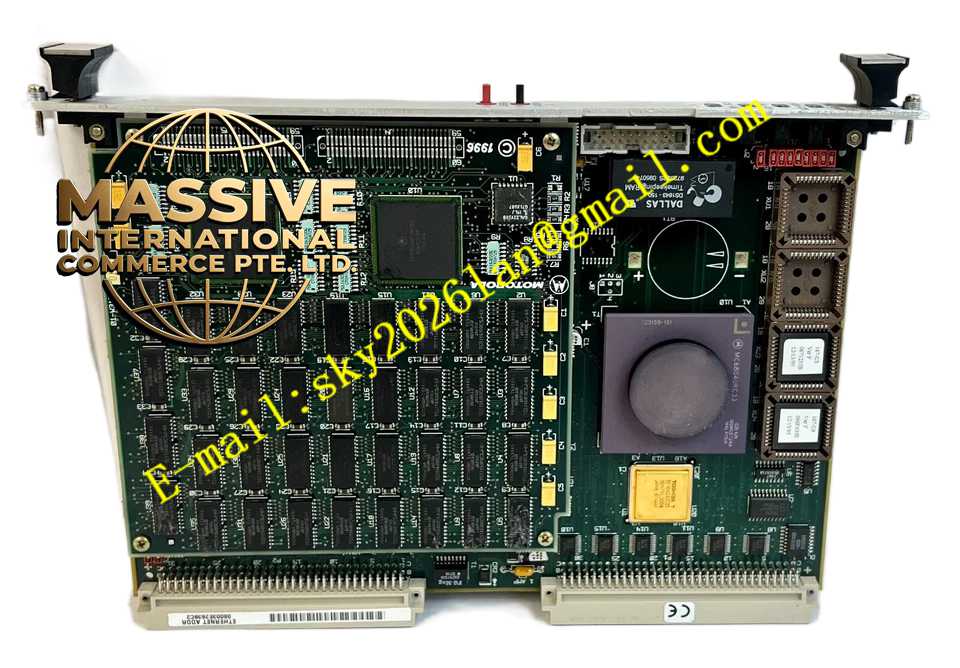

Motorola MVME167PA-35SE
Technical Specifications
- Microprocessor: MC68040 at 33 MHz.
- Memory: 64MB of synchronous DRAM with ECC protection.
- Storage: 128KB SRAM with battery backup and four PLCC EPROM sockets.
- Power Draw: +5Vdc at 5.0A typical, +12Vdc at 100mA typical.
Functional Features
- High-Capacity RAM: 64MB ECC DRAM supports large databases and complex real-time applications.
- Advanced I/O: Integrated Ethernet, SCSI, and four serial ports with DMA capabilities.
- System Controller: Full VMEbus system controller functionality with global CSR.
Application Scenarios
- Database Servers: Industrial historian and data logging servers.
- Vision Systems: Machine vision processing and quality control.
- Process Control: Large-scale DCS nodes requiring extensive local buffering.
Performance Parameters
- Operating Temperature: 0°C to 55°C with forced air cooling.
- Storage Temperature: -40°C to +85°C.
- Humidity: 5% to 90% non-condensing.
Material Composition
- High-density PCB, ECC memory modules, MC68040 processor, and lithium backup battery.
Structural Characteristics
- Form Factor: Standard 6U VMEbus double-high board.
- Dimensions: Height 9.187 inches, depth 6.299 inches.
Working Principle
The MC68040 processor accesses the 64MB ECC memory pool via the Petra ASIC, utilizing DMA channels to offload data transfers from the CPU to maximize processing efficiency.
Installation Requirements
- Install in a 6U VME chassis with forced-air cooling. Ensure adequate clearance for heat dissipation from the high-density memory modules.
Usage Precautions
- Handle with ESD protection. The higher memory density requires careful handling to avoid physical damage to components.
