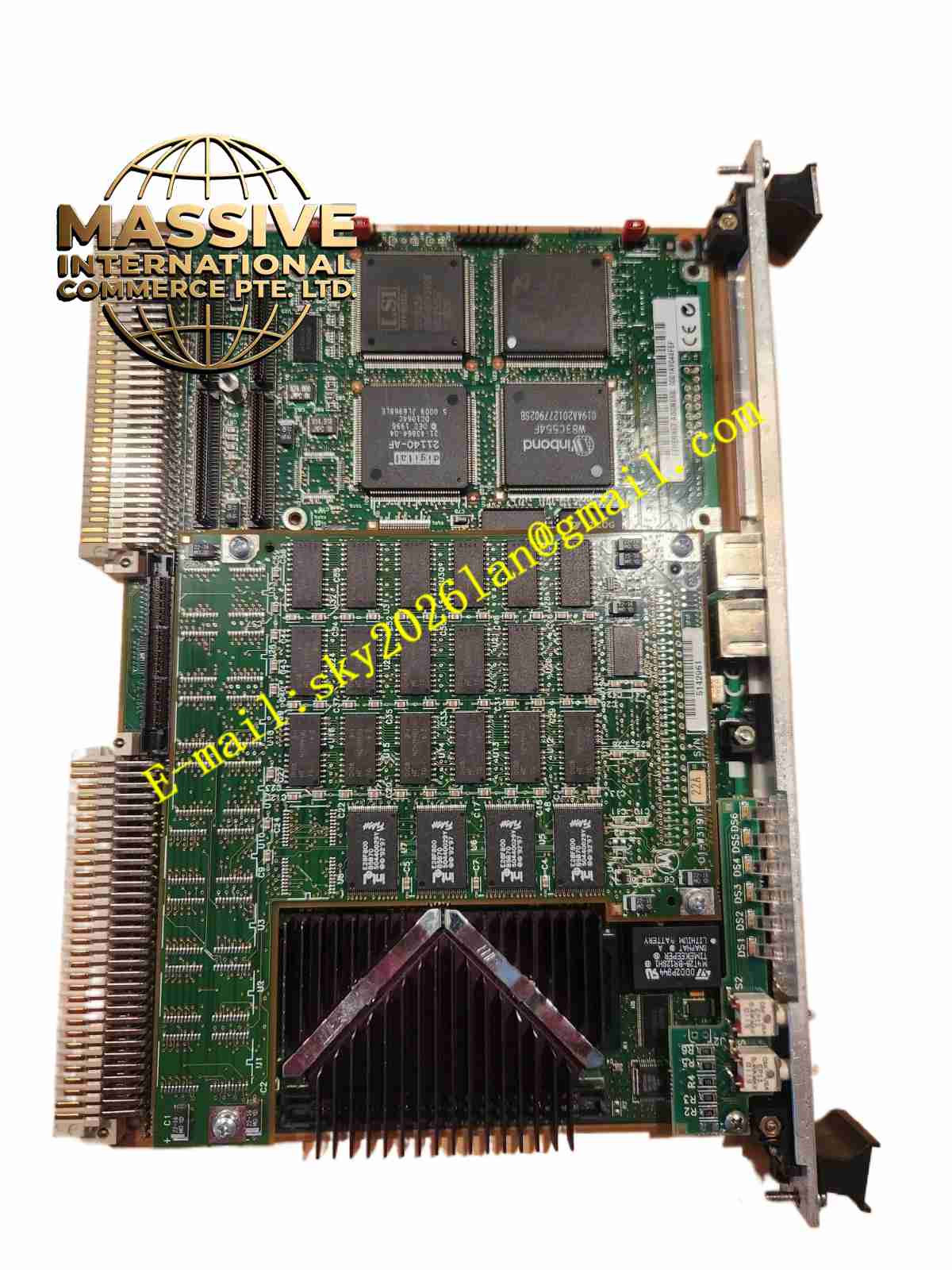

Motorola MVME2402-3
Technical Specifications
- Microprocessor: PowerPC architecture processor.
- Configuration ID: 2402-3 exclusive hardware and firmware combination.
- Bus: 6U VMEbus compatible.
Functional Features
- Memory layout optimized for specific industrial protocols or control algorithms.
- Flexible PMC expansion to accommodate varying I/O requirements.
Application Scenarios
Used for legacy system maintenance, dedicated test equipment, and automated production lines requiring exact hardware matching.
Performance Parameters
- High reliability supporting 24/7 continuous operation.
- Fast system boot and reset capabilities.
Material Composition
Multi-layer industrial-grade PCB covered with a conformal coating.
Structural Characteristics
Standard 6U VME European card with front panel I/O interfaces.
Working Principle
Executes preset control logic, communicates with other system modules via the VME bus, and coordinates PMC expansion cards for data acquisition and control tasks.
Installation Requirements
- Ensure backplane slots are free of physical damage.
- Use a torque screwdriver to tighten front panel mounting screws.
Usage Precautions
- Verify the power supply requirements of this model match the chassis power supply.
- Follow standard ESD protection procedures during operation.
