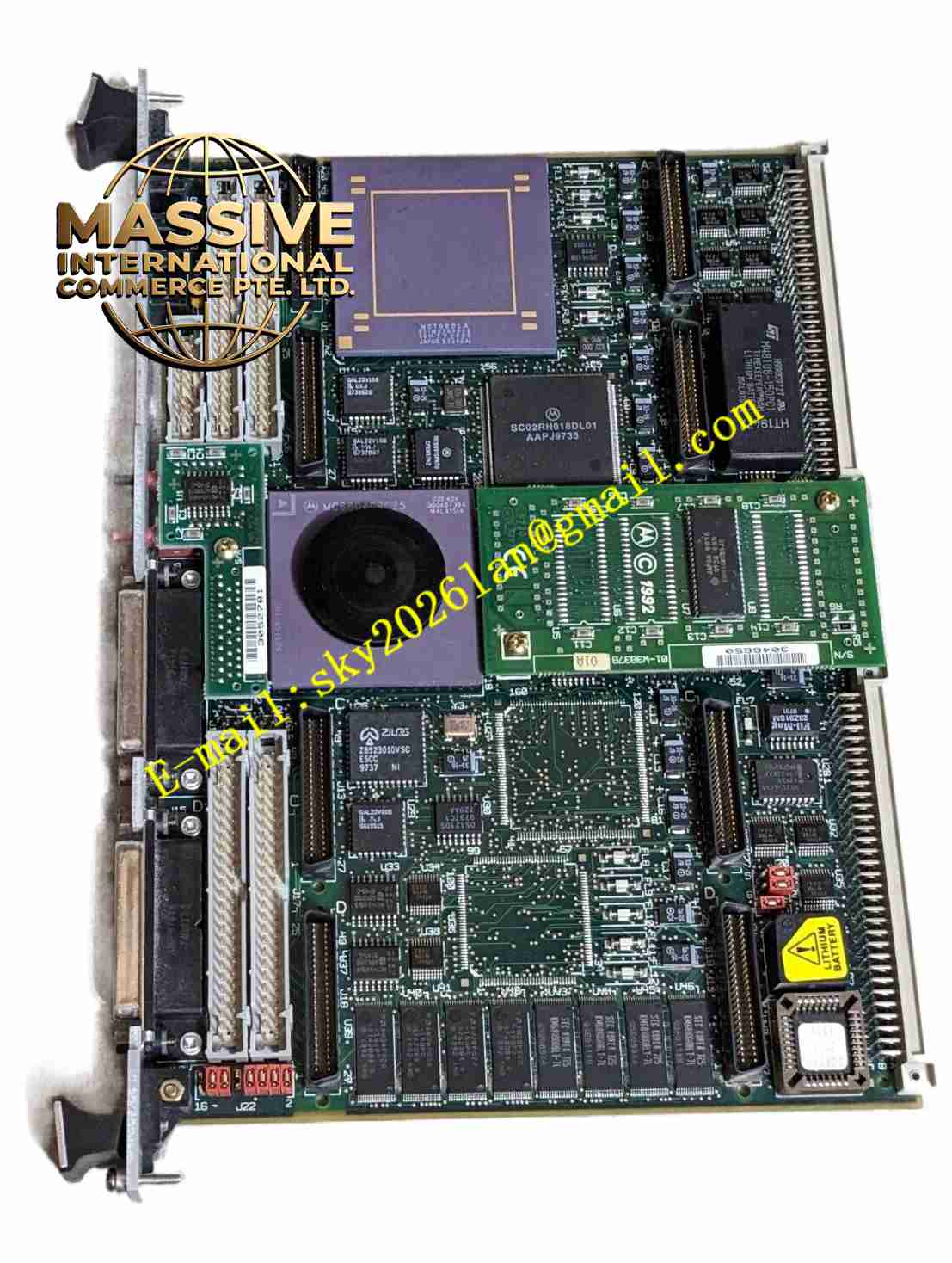

Motorola MVME2604-3351

Motorola MVME2604-3351

Product Brief The MVME2604-3351 is a high-memory configuration in the MVME2604 33xx product line, featuring a 333 MHz MPC604e PowerPC processor paired with 128MB ECC DRAM and 9MB Flash memory. This model supports the MVME761 I/O transition module and is fitted with a VME Scanbe front panel. It carries NSN certification (5998-01-545-4181), confirming its suitability for military and aerospace applications requiring maximum reliability and supply chain traceability.

Request Quote
Category:

Description

Motorola MVME2604-3351

Technical Specifications

  • Processor: 333 MHz Motorola PowerPC 604e 32-bit microprocessor
  • L2 Cache: 256KB
  • Memory: 128MB ECC DRAM
  • Flash Memory: 9MB
  • VMEbus Interface: VME64 full master/slave
  • I/O Transition Module: MVME761
  • Front Panel: VME Scanbe with handles
  • NSN: 5998-01-545-4181

Key Features

  • 333 MHz MPC604e with PowerPlus Architecture
  • 256KB L2 cache for performance optimization
  • 128MB ECC DRAM with real-time error correction
  • 9MB Flash for secure firmware storage
  • MVME761 I/O expansion capability
  • VME Scanbe front panel for traditional installations
  • Military NSN traceability

Application Scenarios Military C4ISR core systems, aerospace vehicle computers, telecommunications backbone equipment, large-scale industrial automation, medical imaging systems, scientific instrumentation

Performance Parameters

  • Processor Clock: 333 MHz
  • L2 Cache: 256KB
  • Memory: 128MB ECC DRAM
  • Flash: 9MB
  • Bus: VME64 with D64/MBLT support
  • Front Panel: VME Scanbe

Material Composition Highest-grade industrial and military-specification materials. 128MB DRAM from qualified suppliers. PCB manufactured to strict impedance control standards. Military-grade gold-plated connectors.

Structural Characteristics 6U VME standard board. Scanbe front panel with injection/ejection handles. Comprehensive LED diagnostics. P2 connector for MVME761 transition module. Single VME slot operation even with PMC.

Working Principle PowerPC 604e superscalar execution with 256KB L2 cache. 128MB ECC DRAM with interleaved access. Motorola ASICs manage VME64 protocol and optimize data throughput between processor, memory, and I/O.

Installation Requirements Standard VME64 chassis with robust cooling and power delivery. P2 backplane must be intact for MVME761. Verify mechanical compatibility with Scanbe front panel.

Usage Notes Monitor ECC memory error counts for preventive maintenance. NSN certification requires proper documentation for military procurement. Ensure NVRAM battery is replaced according to schedule.
