Description

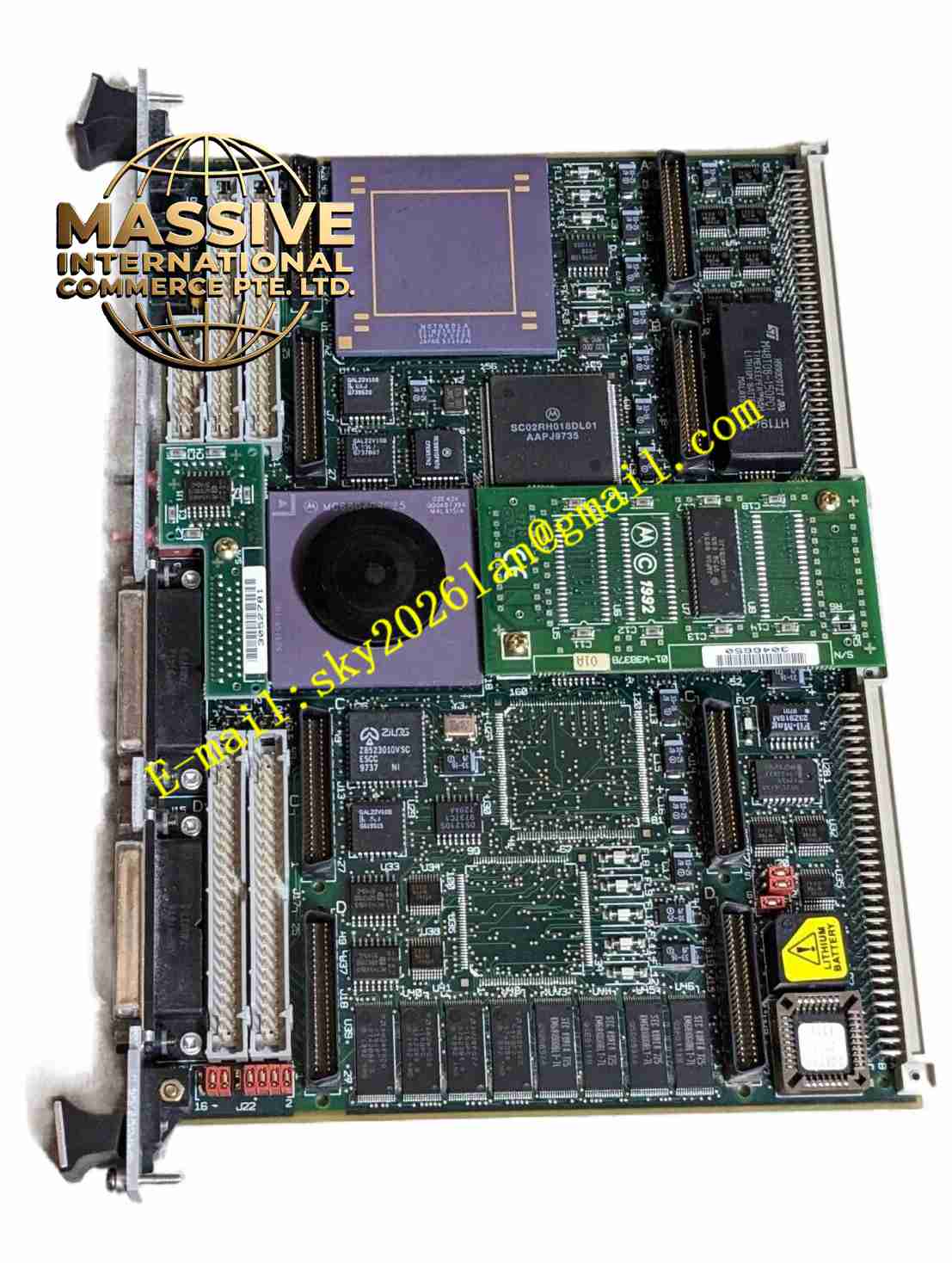

Motorola MVME5110-2143
Technical Specifications
- Processor: PowerPC 603e running at 133 MHz.
- Memory: 16 MB DRAM.
- Storage: 4 MB Flash.
- Interfaces: 10/100Mbps Ethernet and dual serial ports.
Functional Features
- Architecture Upgrade: Adopts PowerPC RISC architecture for higher instruction execution efficiency.
- Cost-Effectiveness: Delivers powerful functionality while maintaining a highly competitive price.
- Broad Support: Extensive documentation and development tools accelerate time-to-market.
Application Scenarios
General industrial automation, test and measurement equipment, medical devices, and traffic control systems.
Performance Parameters
- Clock Speed: 133 MHz provides higher performance than the MC68060.
- Processing Power: Meets most industrial control requirements.
- Reliability: High MTBF suitable for 24/7 continuous operation.
Material Composition
High-quality FR-4 PCB material with lead-free soldering processes, compliant with environmental standards.
Structural Characteristics
Standard 6U VME size with a compact layout that optimizes airflow cooling paths.
Working Principle
Leverages the powerful instruction set of the PowerPC processor to efficiently execute multi-tasking real-time operating systems.
Installation Requirements
Verify VME chassis power capacity meets requirements. Correctly set address and interrupt jumpers on the board.
Usage Precautions
Check all jumper settings before initial power-up. Avoid storage in humid environments and follow manual guidelines for firmware upgrades.
