Description

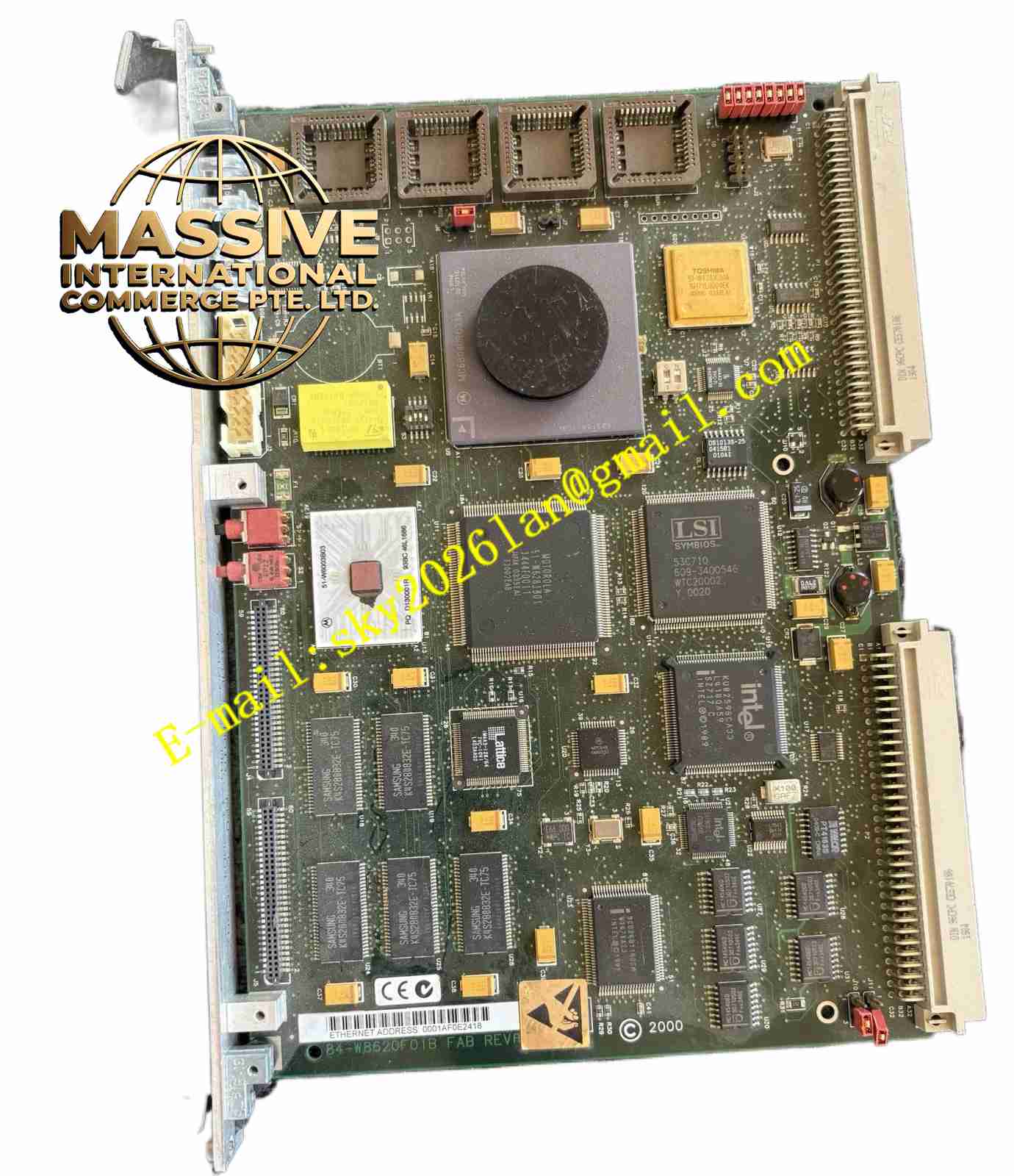

Motorola MVME7100-0161
Technical Specifications
- Processor: 1.06 GHz NXP MPC8640D dual-core PowerPC e600.
- Memory: 1 GB DDR2 ECC SDRAM.
- Storage: 4 GB NAND Flash and 128 MB NOR Flash.
- Network: Four Gigabit Ethernet ports.
Functional Features
- High-Speed VME: Supports 2eSST VMEbus protocol for up to 320 MB/s bandwidth.
- Expansion: Dual PMC-X slots and 8x PCI Express expansion connectors.
- Robust I/O: Five RS-232 serial ports and USB 2.0 interface.
Application Scenarios
Telecommunications, aerospace, defense systems, and industrial automation requiring high data throughput and real-time processing.
Performance Parameters
- Power Consumption: Typical 40W, Maximum 55W at +5V.
- Clock Speed: Processor bus and memory optimized for balanced performance.
Material Composition
Industrial-grade PCB with lead-free soldering, high-quality DDR2 memory modules, and ruggedized connectors.
Structural Characteristics
- Form Factor: 6U VME single slot.
- Cooling: Designed for conduction or forced-air cooling in standard VME chassis.
- Panel I/O: Front-panel Ethernet, serial, and USB ports.
Working Principle
The dual-core PowerPC processor manages data flow through integrated DDR2 memory controllers and PCI Express switches. The Tsi148 VME bridge translates local bus transactions to the VME backplane, enabling high-speed communication with other system modules.
Installation Requirements
- Install in a 3-row or 5-row VME chassis with adequate power budget.
- Ensure proper grounding and ESD protection during installation.
- Configure boot parameters via onboard switches or software.
Usage Precautions
- Observe maximum power limits of the VME backplane.
- Maintain operating temperature within 0°C to +55°C with forced-air cooling.
- Avoid exposure to high humidity or condensation.
