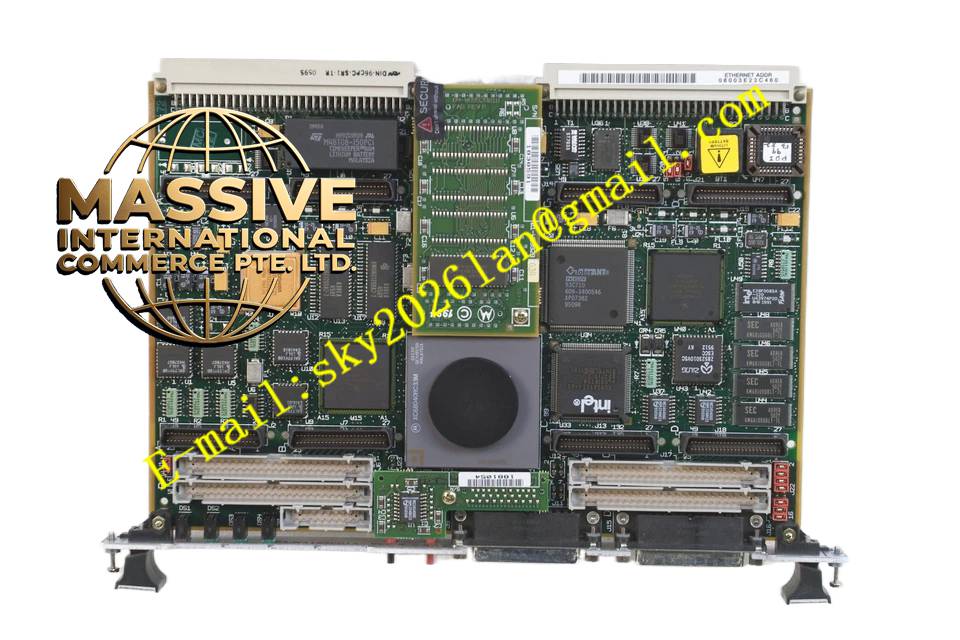

Motorola MVME7100-0171
Technical Specifications
- Processor: 1.3 GHz NXP MPC8641D dual-core PowerPC e600.
- Memory: 2 GB DDR2 ECC SDRAM.
- Storage: 8 GB NAND Flash, 128 MB NOR Flash.
- Network: Four Gigabit Ethernet ports.
Functional Features
- Enhanced Performance: Higher clock speed and larger memory footprint.
- PCIe Expansion: 8-lane PCI Express for high-bandwidth peripherals.
- Dual PMC-X: Supports industry-standard PMC modules for I/O expansion.
Application Scenarios
Advanced radar systems, flight simulation, semiconductor manufacturing equipment, and high-speed data acquisition.
Performance Parameters
- Power Consumption: Typical 45W, Maximum 60W at +5V.
- Processing: Dual-core architecture with 1MB L2 cache per core.
Material Composition
Premium-grade PCB materials, high-speed DDR2 memory, and industrial-rated flash storage.
Structural Characteristics
- Form Factor: 6U VME single slot.
- Cooling: Requires adequate forced-air cooling for higher power dissipation.
- Connectors: Standard VME P1/P2 connectors plus PCIe and PMC interfaces.
Working Principle
The 1.3 GHz processor leverages dual integrated DDR2 memory controllers and a PCI Express switch to maximize data throughput. The 2eSST VME interface ensures efficient communication with legacy backplane systems.
Installation Requirements
- Ensure chassis power supply supports up to 60W per slot.
- Verify thermal management system can handle increased heat output.
- Follow standard VME installation procedures.
Usage Precautions
- Monitor system temperature during operation.
- Use only approved power supplies and cooling systems.
- Avoid mechanical shock during installation and operation.
