The Motorola MVME8100-202200401E is a highly specialized, custom-configured variant of the premium MVME8100 series. As a 6U VME/VXS single-board computer, it is engineered for mission-critical applications demanding extreme computational power, high-speed data throughput, and uncompromising reliability in harsh environments. The specific suffix indicates a tailored factory configuration optimized for a particular defense or industrial OEM project.

Request Quote
Category:

Description

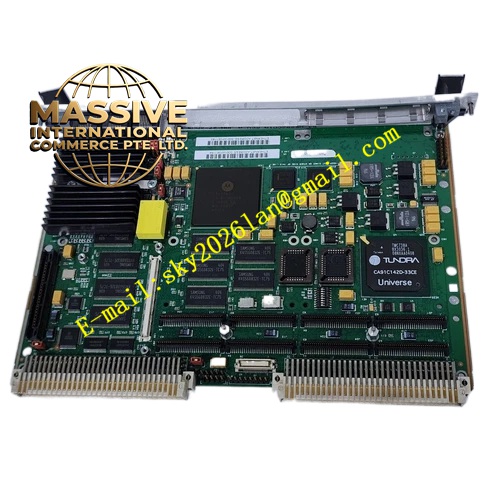

Motorola MVME8100-202200401E

Technical Specifications

  • Processor: Dual-core Freescale QorIQ P5020 Power Architecture (e5500 cores).
  • Memory: High-capacity DDR3 ECC SDRAM memory controllers.
  • Storage: Integrated NAND Flash memory in eMMC format.
  • Connectivity: Five Gigabit Ethernet controllers (SGMII and RGMII interfaces).

Functional Features

  • Advanced Interconnects: Features Serial RapidIO (SRIO) v1.3-compliant ports and dual PCI Express controllers for high-bandwidth peripheral communication.
  • Enhanced I/O: Includes two 4-pin UARTs, four I2C controllers, two 4-channel DMA engines, and dual high-speed USB 2.0 controllers.
  • Hardware Security: Supports enhanced secure digital host controllers and secure boot mechanisms.

Application Scenarios
Deployed in advanced C4ISR systems, radar and sonar signal processing, semiconductor lithography equipment, and high-end military automation platforms.

Performance Parameters

  • Bus Architecture: Fully compliant with VMEbus, 2eSST, and PCI-X standards for maximum backplane interoperability.
  • Data Integrity: Dual 64-bit DDR3/3L SDRAM memory controllers with ECC ensure zero data corruption during intensive operations.

Material Composition
Constructed with high-Tg, multi-layer industrial-grade PCBs. The eMMC NAND Flash and processor are rated for extreme operating temperatures, typically -40°C to +85°C, with specialized storage limits reaching -55°C to +105°C.

Structural Characteristics

  • Form Factor: Standard 6U VME/VXS mechanical envelope.
  • Ruggedization: Designed to withstand severe vibration (up to 10G sine) and shock (40g/11ms) in its enhanced variants.
  • Environmental Protection: Optional acrylic conformal coating to protect against high humidity, condensation, and conductive dust.

Working Principle
The dual-core P5020 processor orchestrates massive data flows through the DDR3 memory controllers and high-speed SRIO/PCIe links. The Tsi148 or equivalent VME bridge translates these high-speed local bus transactions into standardized VME 2eSST signals, enabling seamless communication with legacy backplane modules.

Installation Requirements

  • Must be installed in a compatible 6U VME or VXS chassis.
  • Ensure the board is completely dry and free of moisture before applying power to prevent short circuits.
  • Securely engage the ejector levers to guarantee proper mating with the backplane connectors.

Usage Precautions

  • Strictly observe the specified environmental limits; do not operate outside the validated temperature and humidity ranges.
  • Note that while the board supports extreme storage temperatures, the eMMC flash warrants optimal data retention performance strictly between -40°C and +85°C.
