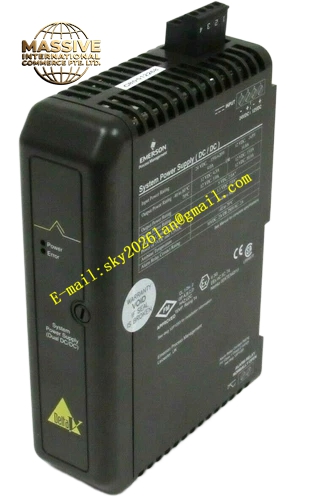

Emerson VE5008 12P2186X0121
Technical Specifications
- Supported Signal Type: 4 to 20 mA analog current signal
- Safety Integrity Level: SIL3 certified
- Channel-level diagnostics for wire break, short circuit and signal overrange
- Operating Ambient Temperature: 0℃ ~ 60℃
- Storage Temperature: -40℃ ~ 85℃
- Relative Humidity: 5% ~ 95%, non-condensing
- Mounting Form: DeltaV SIS rack plug-in card
- Communication Interface: SIS rack backplane bus
- Protection Grade: IP20
Functional Features Acquire 4-20mA analog measurement signals from field process transmitters. Convert analog current signals to high-resolution digital process values for safety logic calculation. Conduct independent diagnostic check on each channel to identify open circuit, short circuit and abnormal signal range. Front panel LED indicators display real-time channel status and module fault status. Built-in overvoltage and overcurrent protection for each signal channel. Hot-swap hardware structure supports module replacement under approved maintenance conditions. Transmit process measurement values and channel fault alarms to SIS safety controller via backplane bus.
Application Scenarios DeltaV SIS safety control cabinets deployed in chemical plants, oil refineries, natural gas processing facilities and power generation stations. It collects continuous process measurement data for safety interlock loops, high-high and low-low process protection, emergency shutdown and fire and gas monitoring systems.
Performance Parameters High precision analog-to-digital conversion maintains stable measurement accuracy within full signal range. Channel diagnostic circuit detects wiring faults and abnormal signal status without delay. Backplane bus delivers reliable high-speed bidirectional data exchange with SIS safety controller. Module maintains continuous stable operation across the full rated working temperature range. Hardware circuit satisfies SIL3 safety integrity requirements for safety instrumented loops.
Material Composition Flame-retardant black engineering plastic front panel with LED indicator windows. Multi-layer flame-retardant glass fiber epoxy printed circuit board. High-precision analog signal acquisition chips, fault diagnosis chips and backplane communication chips. Gold-plated copper alloy backplane connector with anti-oxidation coating. High temperature resistant capacitors, signal filtering and isolation components.
Structural Features Compact plug-in card dimension matching standard DeltaV SIS rack slot size. Front panel fitted with dedicated LED indicators for channel status and module fault alarm. Built-in guide rails and spring mechanical latch lock the module firmly inside SIS rack and resist cabinet vibration. Rear gold-plated multi-pin connector establishes electrical connection with DeltaV SIS rack backplane. Bottom connector mates with corresponding SIS terminal base for field analog signal wiring. Shell integrates large heat dissipation slots for natural convection cooling inside closed safety control cabinet.
Working Principle Field 4-20mA analog signals pass through matched SIS terminal base and enter VE5008 analog input module. High precision analog acquisition circuit samples current signal of each independent channel. The on-board analog-to-digital converter converts analog current into digital process value. Per-channel diagnostic circuit continuously monitors loop impedance and signal magnitude to identify open circuit, short circuit and signal out-of-range. The module transmits digital process values and fault diagnostic information to SIS safety controller through rack backplane bus. Front panel LED indicators display working status of each channel and module fault state in real time. Internal self-diagnosis circuit monitors module hardware status continuously and uploads fault alarms to SIS controller once hardware failure occurs.
Installation Requirements Install matched SIS analog terminal base onto standard DIN rail inside safety cabinet first. Insert VE5008 module along rack guide rail into designated DeltaV SIS rack slot and fully engage mechanical latch. Verify stable electrical contact between module bottom connector and terminal base. Reserve sufficient air circulation space around the module and do not block heat dissipation slots on module housing. Complete hardware recognition and channel parameter configuration in DeltaV engineering workstation after hardware installation. Route shielded twisted pair cables for field transmitters and separate analog signal wiring from high voltage power cables.
Precautions for Use Apply anti-static protection measures during module handling. Bare hands must not touch gold-plated connector pins directly. Cut off field loop power before carrying out wiring modification work. Validate channel reading and diagnostic function after module replacement. Check module running status and channel fault alarms in DeltaV operator station on regular maintenance cycles. Do not disassemble module outer housing. Internal safety circuit components have no field maintainable spare parts.
