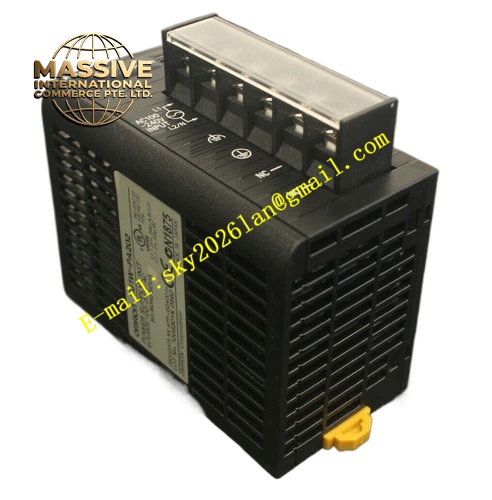

OMRON CJ1W-PA202
Technical Specifications:
- Brand: OMRON
- Model: CJ1W-PA202
- Product Type: AC Power Supply Unit
- Compatible System: CJ Series PLC
- Input Voltage: 100 to 240 VAC
- Input Frequency: 50/60 Hz
- Input Voltage Range: 85 to 264 VAC
- Output Capacity:
- 2.8 A at 5 VDC
- 0.4 A at 24 VDC
- Total: 14 W max.
- Inrush Current: 40 A max. (at 200-240 VAC)
- Power Consumption: 50 VA max.
- Insulation Resistance: 20 MΩ min.
- Dielectric Strength: 2,300 VAC for 1 minute
- Operating Temperature: 0°C to 55°C
Functional Features:
- Wide input voltage range (100 to 240 VAC)
- Compact design for space-saving installations
- Built-in protection circuits
- Provides 5 VDC and 24 VDC outputs
- Conforms to SEMI-F47 standard
Application Scenarios:
- CJ series PLC power supply
- Industrial automation control panels
- Machine tool control systems
- Factory automation systems
Performance Parameters:
- Input Voltage: 100 to 240 VAC
- Output Voltage: 5 VDC / 24 VDC
- Output Current: 2.8 A (5V) / 0.4 A (24V)
- Total Power: 14 W
Material Composition:
- Switching power supply circuitry
- Metal chassis with plastic housing
- Screw terminal blocks
Structural Features: The unit mounts directly onto the CJ series backplane. It features screw terminals for AC power input and status indicators.
Working Principle: The unit uses a switching regulator to convert the input AC voltage into stable 5 VDC and 24 VDC outputs. These voltages are supplied to the PLC backplane to power the CPU and I/O modules.
Installation Requirements:
- Mount on CJ series CPU rack
- Connect AC power using screw terminals
- Ensure proper grounding
- Provide adequate ventilation
Usage Notes:
- Verify the input voltage range before connecting power.
- Do not exceed the total output power capacity (14 W).
- Ensure all modules are properly seated on the backplane.
