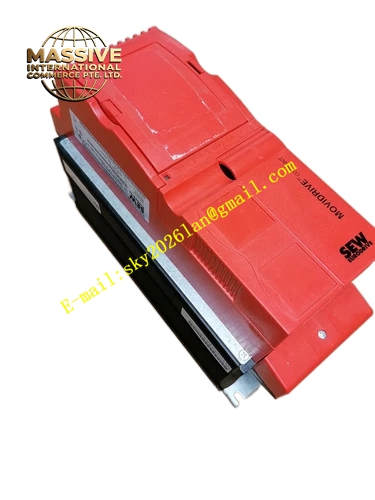

SEW MCF40A0055-5A3-4-00

SEW MCF40A0055-5A3-4-00

Product Introduction:
The MCF40A0055-5A3-4-00 is a frequency inverter from the MOVIDRIVE compact MCF40A series, manufactured by SEW-EURODRIVE. It is designed for controlling AC asynchronous motors with a recommended motor power of 5.5 kW. The “MCF” designation indicates the standard version with field-oriented VFC control for asynchronous motors without encoder feedback. The “40A” denotes control via binary inputs with analog setpoint input. The “5A3” specifies the 3-phase AC 380–500V supply voltage range. The “00” suffix indicates the standard version. This inverter delivers smooth speed regulation with fine acceleration and deceleration adjustment, making it suitable for a wide range of industrial

Request Quote
Category:

Description

SEW MCF40A0055-5A3-4-00

Technical Specifications:

  • Brand: SEW-EURODRIVE
  • Series: MOVIDRIVE compact MCF40A
  • Recommended Motor Power: 5.5 kW (VFC mode, PWM frequency = 4 kHz)
  • Continuous Output Current: 15.6 A AC (VFC mode, PWM = 4 kHz); 12.5 A AC (CFC/SERVO mode, PWM = 8 kHz)
  • Input Voltage: 3-phase AC 380–500V, 50/60 Hz
  • Control Mode: VFC (Voltage Mode Flux Control), V/f Control
  • Encoder Feedback: Not required (open-loop)
  • Protection Rating: IP20
  • Operating Temperature: 0°C to +40°C
  • Certifications: CE, UL
  • EMC Standard: EN 61000-4 (Class A)

Functional Features:

  • VFC Control Mode: Voltage-controlled field-oriented control achieving at least 150% torque at standstill (with encoder) or down to 0.5 Hz (without encoder)
  • IPOS+ Integrated Positioning System: Autonomous motion sequence control within the inverter, reducing PLC dependency
  • Smooth Acceleration/Deceleration: Fine-tuned ramp functions for gentle motor start-up and stopping
  • Comprehensive Protection Suite: Overcurrent, overvoltage, undervoltage, overheating, phase loss, and ground fault detection
  • Modular Design: Compact form factor with removable connection unit for efficient maintenance and replacement
  • System Bus (SBus): Standard networking interface for multi-drive coordination via MOVILINK protocol
  • Anti-Interference Performance: Excellent electromagnetic compatibility for complex multi-device workshop environments

Application Scenarios:

  • Medium-duty conveyor and material handling systems
  • Fan and pump variable speed drives for energy optimization
  • Small to medium packaging machinery
  • Food and beverage processing equipment
  • Light industrial automation production lines
  • Printing and paper processing machinery

Performance Parameters:

  • Torque Capability: At least 150% torque at standstill (with encoder), at least 150% torque down to 0.5 Hz (without encoder)
  • Output Frequency Range: 0–550 Hz
  • Speed Control Accuracy: ±0.5% (open-loop VFC mode)
  • Overload Capacity: 150% rated current for 60 seconds
  • Dynamic Response: Optimized for standard industrial load profiles

Material Composition:

  • Industrial-grade IGBT power modules
  • Coated circuit boards for dust and moisture protection
  • Aluminum heat sink for thermal dissipation
  • Integrated EMC filter components
  • Steel enclosure with powder-coated finish

Structural Features:

  • Compact cabinet-mount form factor
  • Removable connection unit with separable power and motor terminals
  • X1: Power supply connection (1/L1, 2/L2, 3/L3)
  • X2: Motor connection (4/U, 5/V, 6/W)
  • X3: Braking resistor connection (8/+R, 9/–R) with PE connection
  • X10: Electronics terminal strip for control signals
  • TERMINAL slot for DBG keypad or USS21A/USB11A option
  • LED status and diagnostic indicators
  • Shield clamp for power section grounding

Working Principle:
The inverter converts AC input to DC through a three-phase rectifier, stores energy in DC bus capacitors, and synthesizes a variable-frequency PWM output through IGBT switching. The VFC algorithm continuously calculates the complete motor model to regulate magnetic flux and electromagnetic torque independently. The IPOS+ system enables autonomous execution of motion sequences programmed directly within the drive, reducing the computational load on the supervisory controller.

Installation Requirements:

  • Mount vertically in a control cabinet with adequate ventilation
  • Maintain minimum clearance above and below the unit for airflow
  • Use shielded power and motor cables with proper 360° shield grounding
  • Ensure motor cable phase sequence matches U-V-W terminal markings
  • Connect braking resistor to dedicated brake terminals when dynamic braking is required
  • Ambient temperature must remain within 0°C to +40°C range
  • Humidity must be maintained between 30% and 60% RH

Usage Notes:

  • Perform motor initialization when connecting a new motor
  • Use MOVITOOLS MotionStudio software for parameter configuration and commissioning
  • Verify power supply voltage stability within ±10% tolerance before operation
  • Never connect or disconnect motor cables while the inverter is energized
  • Monitor fault codes via the integrated LED display or MOVITOOLS software
  • Clean heat sink dust regularly; accumulation exceeding 2 mm thickness requires cleaning
  • Verify grounding resistance is less than 1 Ω
