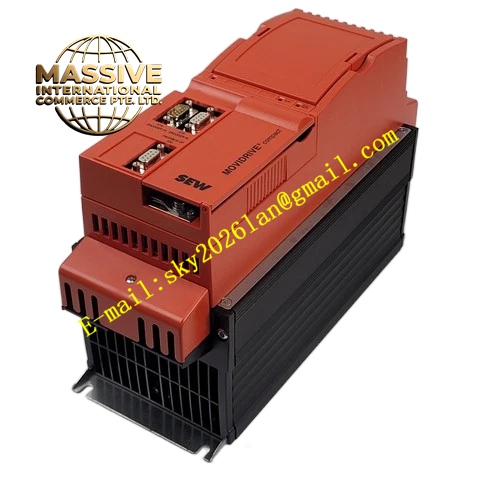

SEW MCH41A0150-5A3-4-00

SEW MCH41A0150-5A3-4-00

Product Introduction:
The MCH41A0150-5A3-4-00 is a high-performance frequency inverter from the MOVIDRIVE compact MCH41A series, manufactured by SEW-EURODRIVE. It is designed for controlling AC asynchronous motors with a recommended motor power of 15 kW. The “MCH” designation indicates the high-end version supporting VFC, CFC, and SERVO control modes. The “41A” denotes the series with integrated PROFIBUS-DP communication capability. The “5A3” specifies the 3-phase AC 380–500V supply voltage range. The “4” indicates 4-quadrant operation with an integrated brake chopper. The “00” suffix indicates the standard version. This inverter delivers precise speed and torque control with support for closed-loop field-oriented control and servo-grade positioning, making it suitable for demanding industrial automation applications.

Request Quote
Category:

Description

SEW MCH41A0150-5A3-4-00

Technical Specifications:

  • Brand: SEW-EURODRIVE
  • Series: MOVIDRIVE compact MCH41A
  • Recommended Motor Power: 15 kW
  • Input Voltage: 3-phase AC 380–500V, 50/60 Hz
  • Control Modes: VFC (Voltage Flux Control), CFC (Current Flux Control), SERVO
  • Encoder Feedback: Supported (closed-loop capable)
  • Operating Quadrants: 4Q (with brake chopper)
  • Line Filter: Radio interference suppression Class A installed
  • Protection Rating: IP20
  • Operating Temperature: 0°C to +50°C
  • Certifications: CE, UL
  • EMC Standard: EN 61800-3 (Class A)

Functional Features:

  • VFC/CFC/SERVO Control Modes: Supports open-loop VFC, closed-loop CFC with encoder feedback, and SERVO mode for high-dynamic positioning applications
  • IPOS+ Integrated Positioning System: Autonomous motion sequence control within the inverter, reducing PLC dependency
  • PROFIBUS-DP Communication: Integrated fieldbus interface for seamless integration into industrial automation networks
  • Comprehensive Protection Suite: Overcurrent, overvoltage, undervoltage, overheating, phase loss, ground fault, and motor stall detection
  • Modular Design: Compact form factor with removable connection unit for efficient maintenance and replacement
  • System Bus (SBus): Standard networking interface for multi-drive coordination via MOVILINK protocol
  • Energy Optimization: Built-in ECO mode for automatic flux current optimization under light load conditions
  • Internal Synchronous Operation: Multiple drives can be synchronized internally without external master controller

Application Scenarios:

  • High-precision conveyor and material handling systems
  • Machine tool spindle drives requiring precise speed control
  • Winding and unwinding applications with tension control
  • Packaging machinery with registration and positioning requirements
  • Textile machinery requiring synchronized multi-axis operation
  • Printing and paper processing equipment

Performance Parameters:

  • Torque Capability: At least 150% torque at standstill (with encoder), at least 150% torque down to 0.5 Hz (without encoder)
  • Output Frequency Range: 0–550 Hz
  • Speed Control Accuracy: ±0.2% (closed-loop CFC/SERVO mode)
  • Overload Capacity: 150% rated current for 60 seconds
  • Dynamic Response: High-bandwidth current control loop optimized for servo-grade applications

Material Composition:

  • Industrial-grade IGBT power modules
  • Coated circuit boards for dust and moisture protection
  • Aluminum heat sink with forced air cooling
  • Integrated EMC filter components
  • Steel enclosure with powder-coated finish

Structural Features:

  • Compact cabinet-mount form factor (Size 2)
  • Removable connection unit with separable power and motor terminals
  • X1: Power supply connection (1/L1, 2/L2, 3/L3)
  • X2: Motor connection (4/U, 5/V, 6/W)
  • X3: Braking resistor connection (8/+R, 9/–R) with PE connection
  • X10: Electronics terminal strip for control signals
  • X30: PROFIBUS-DP connection (9-pole Sub-D socket)
  • X14: Incremental encoder simulation output or external encoder input (9-pole Sub-D socket)
  • X15: Motor encoder input (9-pole Sub-D socket)
  • TERMINAL slot for DBG keypad or USS21A/USB11A option
  • LED status and diagnostic indicators
  • Shield clamp for power section grounding

Working Principle:
The inverter converts AC input to DC through a three-phase rectifier, stores energy in DC bus capacitors, and synthesizes a variable-frequency PWM output through IGBT switching. In VFC mode, the algorithm continuously calculates the complete motor model to regulate magnetic flux and electromagnetic torque independently. In CFC mode, encoder feedback enables closed-loop current control for precise torque regulation. In SERVO mode, the drive achieves high-dynamic positioning with position, speed, and torque control loops operating in cascade.

Installation Requirements:

  • Mount vertically in a control cabinet with adequate ventilation
  • Maintain minimum clearance above and below the unit for airflow
  • Use shielded power and motor cables with proper 360° shield grounding
  • Ensure motor cable phase sequence matches U-V-W terminal markings
  • Connect braking resistor to dedicated brake terminals when dynamic braking is required
  • Connect motor encoder cable to X15 terminal for closed-loop operation
  • Ambient temperature must remain within 0°C to +50°C range
  • Humidity must be maintained between 30% and 60% RH

Usage Notes:

  • Perform motor initialization and encoder calibration when connecting a new motor
  • Use MOVITOOLS MotionStudio software for parameter configuration and commissioning
  • Verify power supply voltage stability within ±10% tolerance before operation
  • Never connect or disconnect motor cables while the inverter is energized
  • Monitor fault codes via the integrated LED display or MOVITOOLS software
  • Clean heat sink dust regularly; accumulation exceeding 2 mm thickness requires cleaning
  • Verify grounding resistance is less than 1 Ω
  • The MOVIDRIVE compact drive inverters do not perform safety functions without higher-level safety systems; use external safety systems to ensure protection of personnel and equipment
