Description

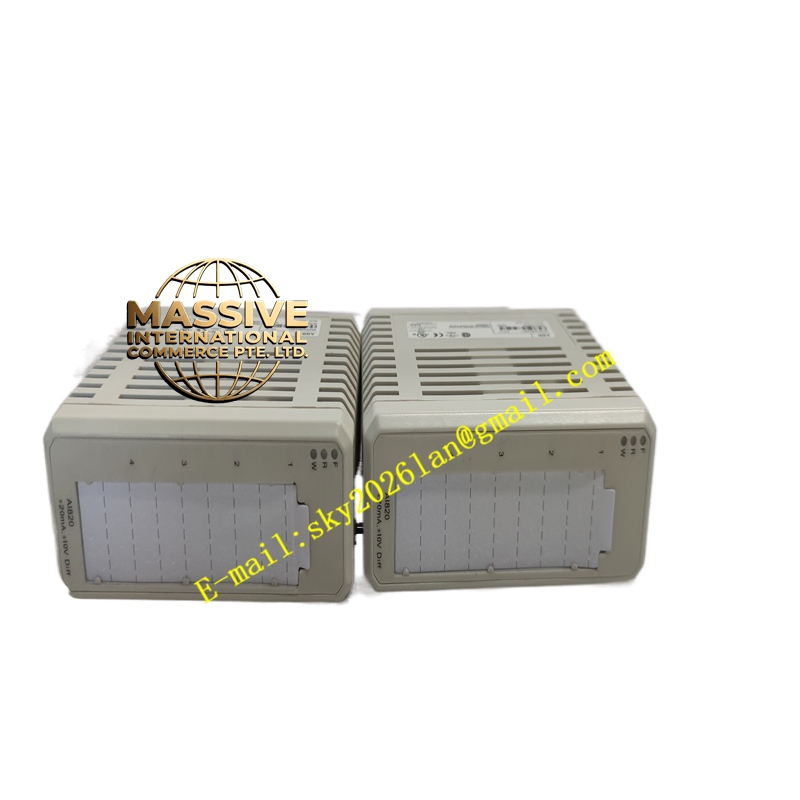

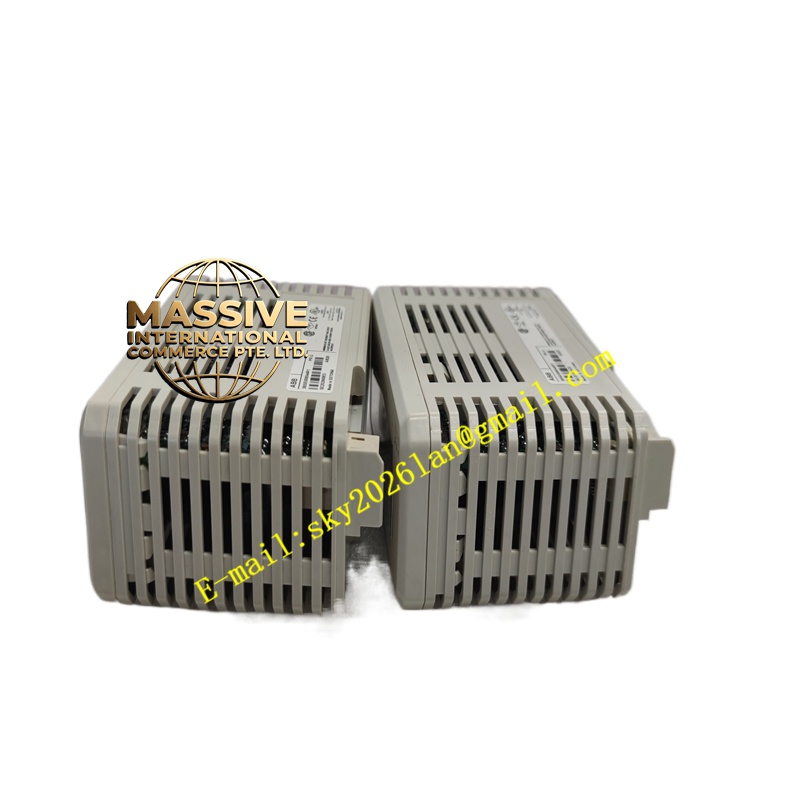

ABB AI820 (3BSE008544R1)
Technical Specifications:
- Channels: 8 Analog Inputs
- Signal Range: 0-10V, 0-20mA, 4-20mA
- Resolution: 16-bit
Functional Features:
- High Precision: Excellent linearity and low temperature drift.
- Diagnostics: Wire break detection.
Application Scenarios:
- Temperature, pressure, and flow measurement.
Performance Parameters:
- Accuracy: ±0.1% of full scale.
Material Composition & Structural Features:
- Terminals: Spring-clamp connections for fast wiring.
Working Principle:
Conditions and digitizes analog field signals for transmission over the S800 I/O bus.
Installation Requirements:
- Use shielded twisted-pair cables.
Usage Precautions:
- Ground shields at the module side only.
