Description

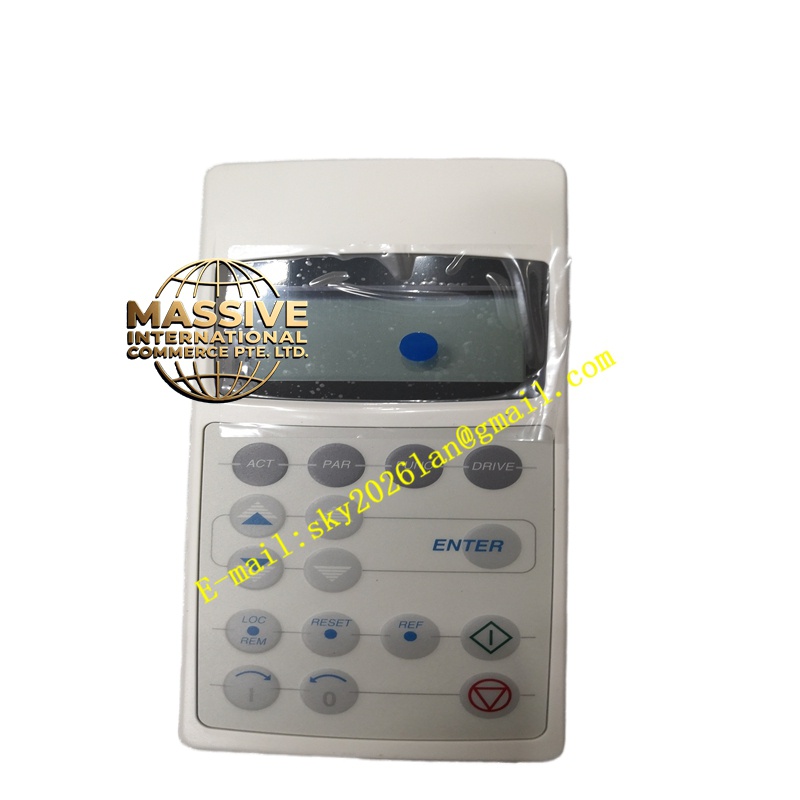

ABB CDP312R 64378660G
Technical Specifications:
- Display: 4-line LCD screen with backlight for clear visibility in various lighting conditions.
- Keypad: Multi-function navigation keys combined with a numeric keypad for efficient parameter entry.
- Communication Interface: Direct connection to ACS800 drive control units via a Y-splitter cable.
- Protection Rating: IP20 (Standard), upgradeable to IP54 when used with a panel mounting platform kit.
- Environmental Tolerance: Operating temperature range of -20°C to +70°C and humidity resistance of 5-95% (non-condensing).
Functional Features:
- Multi-Mode Operation: Features four distinct operating modes including Actual Signal (ACT), Parameter (PAR), Function (FUNC), and Drive Selection (DRIVE).
- Dual-Unit Control: Capable of controlling both line-side and motor-side converters, with the active unit clearly indicated on the display.
- Real-Time Monitoring: Displays critical operational data such as current, voltage, frequency, and torque.
- Fault Diagnostics: Provides comprehensive fault logging, warning displays, and one-touch fault reset capabilities.
Application Scenarios:
- Local commissioning, tuning, and maintenance of industrial motor control systems.
- Pump, fan, and compressor control in process industries like pulp & paper, mining, and cement.
- Troubleshooting and emergency local operation when remote PLC control is unavailable.
Performance Parameters:
- Response Time: Millisecond-level refresh rate for real-time data display.
- Reliability: High electromagnetic compatibility (EMC) designed for harsh industrial environments.
Material Composition & Structural Features:
- Housing: Robust, flame-retardant industrial plastic enclosure.
- Mounting: Snap-on design for direct drive mounting or flush cabinet door mounting.
Working Principle:
The panel communicates bidirectionally with the drive’s RMIO or RDCU control board. It translates user keypad inputs into digital control commands and continuously receives telemetry data from the drive’s internal sensors to update the LCD display.
Installation Requirements:
- For cabinet door mounting, a precise 115 mm x 242 mm cutout is required for a 1.5 to 2.5 mm thick door plate.
- Connect the shielded flat-oval cable securely to the drive’s ADPI interface or RMIO board connector X39.
Usage Precautions:
- Ensure the converter ID numbers (Line-side vs. Motor-side) are not set identically to prevent communication loss.
- Avoid pressing keys with sharp objects to prevent membrane damage.
