ABB CI522A K04 (3BSE018451R1)

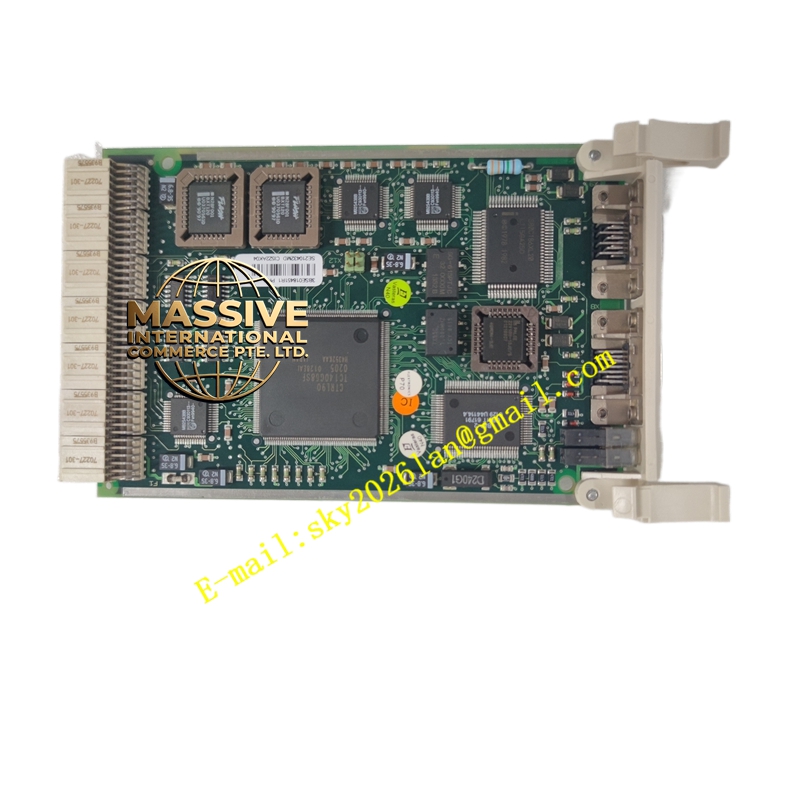

ABB CI522A K04 (3BSE018451R1) - Image 2

ABB CI522A K04 (3BSE018451R1)

Product Brief:​ The CI522A (sometimes referenced as CI522A K04) is a dual-protocol capable communication interface for ABB Advant OCS / AC 450 / System 800xA, supporting ABB Advant Fieldbus (AF100 / MasterFieldbus) and optionally Profibus DP (as slave or master depending on configuration/FW). It enables the controller to communicate with distributed I/O clusters and intelligent field devices.

Request Quote
Category: SKU: ABB CI522A K04 (3BSE018451R1)

Description

ABB CI522A K04 (3BSE018451R1)

  • Technical Specifications:
    • Interfaces: 1 × Advant Fieldbus (AF100), 1 × Profibus DP (D-sub 9-pin, RS-485 isolated)
    • Profibus Baud Rate: 9.6 kbps – 12 Mbps auto-detect
    • Max Profibus Slaves (as Master): Up to 32–125 (FW/config dependent)
    • Isolation: Optical isolation ≥1 kV on Profibus lines
    • Power: From controller backplane
    • Indicators: Run, Err, Bus Active, Slave-status LEDs
    • Operating Temp.: 0 °C to +60 °C
  • Functional Features:
    • Simultaneous or selectable protocol operation per application engineering
    • Supports Profibus DP-V0/V1 (acyclic parameter/channel diag)
    • Redundant controller pairing supported (hot-standby)
    • GSD file provided for integration into third-party Profibus masters
  • Application Scenarios:
    • Retrofit/expansion of Advant OCS plants needing Profibus DP connectivity alongside legacy AF100
    • Gateway function between ABB controller and Siemens or other Profibus DP I/O
    • Integration of intelligent field instruments with Profibus PA (via DP/PA link)
  • Material & Structure:
    • Standard Advant / 800xA module form factor with metal stiffener
    • DB9 female Profibus connector with pinout per IEC 61158-2
  • Working Principle:

    The module handles link-layer framing for both AF100 and Profibus DP. For Profibus it implements the FDL (Fieldbus Data Link) layer, managing token passing when acting as master or responding to cyclic data requests as slave. Data is mapped into the process image of the controller via the backplane bus.

  • Installation Requirements:
    • Seat firmly in communication slot; ensure backplane connector is clean
    • Connect Profibus cable with proper A/B wiring (+/− polarity) and terminate both bus ends
    • Import correct GSD file into engineering station if used as Profibus slave in third-party master
  • Precautions:
    • Reversing Profibus A/B wires will prevent communication — double-check polarity
    • Do NOT omit termination resistors on both physical ends of the Profibus segment
    • Firmware version must match project requirements — mismatch may cause config download failure
