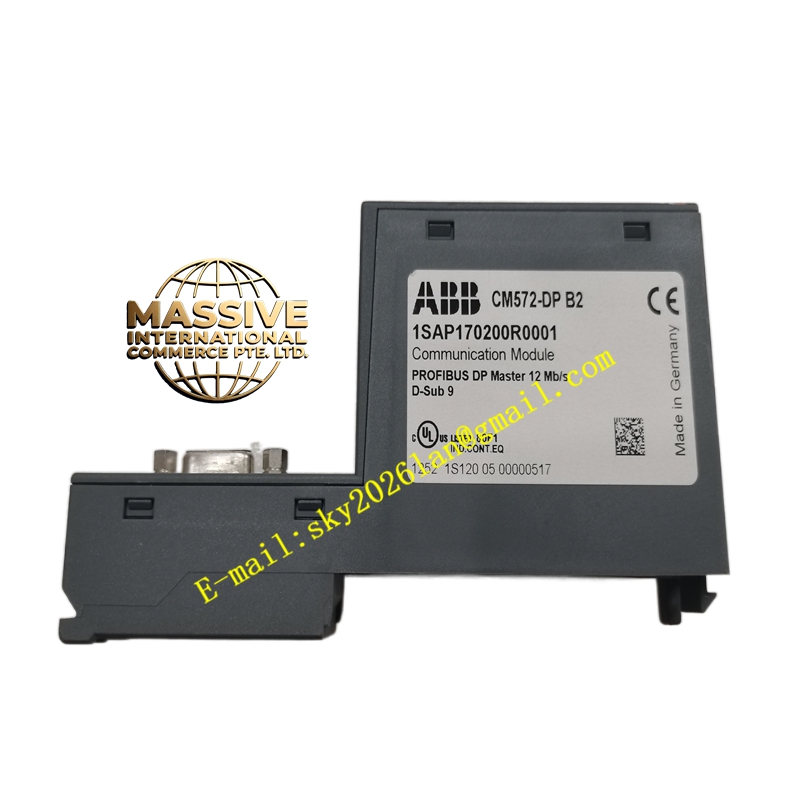

ABB CM572-DP

ABB CM572-DP

Product Brief Introduction

CM572-DP is a dedicated field bus communication plug-in module developed for ABB AC500 PLC control system, used as PROFIBUS-DP main station controller. It is inserted into the CPU backplane communication slot of PM570/PM580/PM590 series controllers, realizing high-speed deterministic data exchange between PLC and distributed DP slave devices including remote I/O, frequency converters, servo drives and intelligent instruments, fully complying with IEC 61158 PROFIBUS standard.

Request Quote
Category: SKU: ABB CM572-DP

Description

ABB CM572-DP



Technical Specifications & Performance Parameters

  1. Physical Dimensions: Width 28mm, height 135mm, depth 62mm; net weight 0.12kg
  2. Mechanical Installation: Standard DIN rail backplane plug-in installation for AC500 CPU base
  3. PROFIBUS Bus Interface: 9-pin D-SUB male connector with screw locking anti-loose structure
  4. Communication Performance Parameters:
    • Supported transmission baud rate: 9.6kbit/s ~ 12Mbit/s (software configurable)
    • Maximum accessible slave stations: 125 DP slave devices under single master station
    • Minimum bus cycle time: 1ms for small data volume; periodic real-time data transmission
    • Built-in 32KB Flash storage for GSD file and bus configuration parameter storage
  5. Isolation Performance: 1500VAC isolation between PLC internal logic circuit and PROFIBUS field bus circuit, eliminate ground loop interference
  6. Power Consumption: 1.1W, powered by PLC backplane 5VDC bus without external power supply
  7. Operating Environmental Index:
    • Working temperature range: 0°C ~ +60°C; XC extended version supports -25°C ~ +70°C
    • Storage temperature: -40°C ~ +70°C
    • Working humidity: 10%–90% non-condensing
  8. Protection Grade: IP20, only suitable for installation inside closed electrical control cabinet
  9. Diagnostic Function Index: Real-time monitoring bus short circuit, slave offline, communication telegram error, bus voltage abnormality; fault code uploaded to PLC system register
  10. Certifications: PROFIBUS International certified, CE, UL, RoHS



Function Characteristics

  1. Standard PROFIBUS-DP Class 1 master station function, support cyclic process data exchange and acyclic parameter read-write of slave stations
  2. Complete bus diagnosis system, real-time upload communication fault information to PLC program for linkage alarm processing
  3. Short-circuit protection of bus transceiver chip, automatically block fault segment to avoid whole network paralysis
  4. Compatible with all standard PROFIBUS-DP slave devices from third-party manufacturers, support GSD file import via ABB Automation Builder software
  5. Multi-module expansion support: AC500 CPU base can install up to 4 communication modules including CM572-DP simultaneously
  6. Hot-swap compatible base design, module replacement without powering off the whole PLC system
  7. Built-in bus terminal resistance switch, toggle switch on module surface to enable/disable 120Ω bus terminal resistor
  8. Real-time communication status LED indicator: power light, bus running light, fault alarm light, slave activity light
