Description

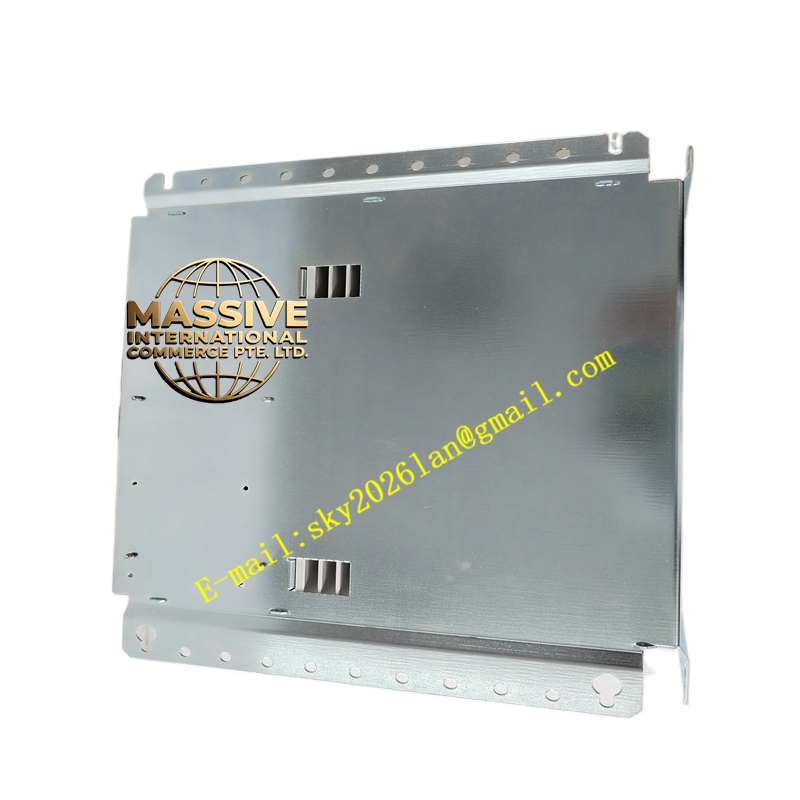

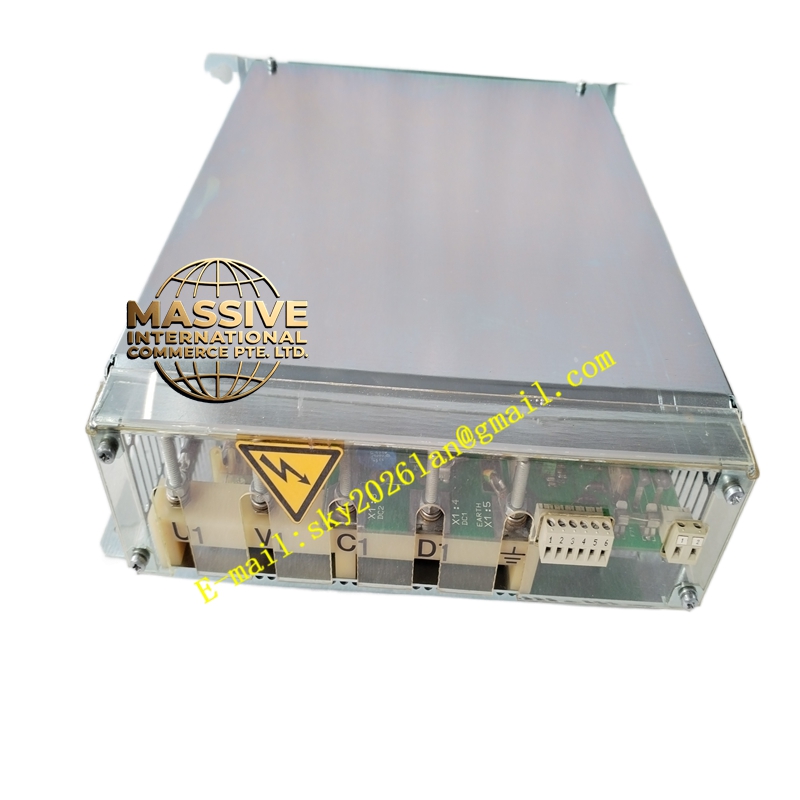

ABB DCF503-0050
Technical Specifications:
- Rated Current: 50A continuous armature current.
- Input Voltage: Three-phase AC 400V (50/60 Hz).
- Output Voltage: Up to 500V DC.
- Control Modes: Speed, Torque, and Position control.
Functional Features:
- Advanced Control Algorithms: Features auto-tuning and adaptive control for optimal motor performance.
- Integrated Safety: Built-in Safe Torque Off (STO) functionality.
- Extensive I/O: Multiple digital and analog inputs/outputs for flexible integration.
- User-Friendly Interface: Built-in control panel with keypad and display for local operation and parameterization.
Application Scenarios:
- Extruders and winding machines.
- Crane and hoist applications.
- Web processing and printing presses.
- Conveyor belt systems.
Performance Parameters:
- Speed Accuracy: High-precision speed regulation with minimal steady-state error.
- Overload Capacity: Designed to withstand high transient torque demands.
- Efficiency: High-efficiency power conversion minimizing heat generation.
Material Composition & Structural Characteristics:
- Power Stage: IGBT or thyristor-based power modules with efficient heat sinks.
- Enclosure: IP20 rated chassis for panel mounting.
- Cooling: Forced-air cooling with intelligent fan control.
Working Principle:
The drive rectifies incoming AC power to DC. A microprocessor continuously monitors motor feedback (encoder/tachometer) and compares it to the setpoint. Based on this error, it adjusts the firing angle of the thyristors or the PWM of the IGBTs to regulate the DC voltage and current supplied to the motor armature.
Installation Requirements:
- Ventilation: Ensure adequate clearance above and below the drive for cooling airflow.
- Wiring: Use properly sized, shielded motor cables and connect the shield at both ends.
- Fusing: Install fast-acting semiconductor fuses on the AC input.
Usage Precautions:
- Motor Matching: Verify that the drive current rating matches the motor’s full-load and peak current requirements.
- Regenerative Energy: Install a braking resistor if the application requires frequent deceleration.
- EMC Compliance: Strictly adhere to EMC installation guidelines to prevent interference with nearby sensitive electronics.
