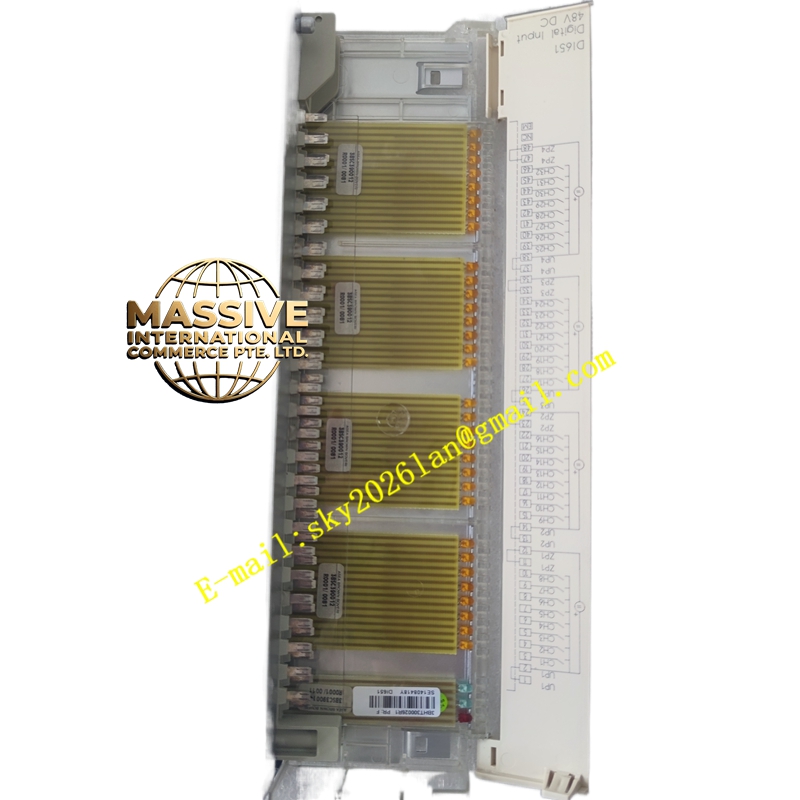

ABB DI651
Technical Specifications:
- Product Model: DI651
- Product Code: 3BHT300026R1
- System Compatibility: ABB S800 I/O System and AC 800M Controllers
- Input Channels: 32 independent digital input channels
- Rated Input Voltage: 48V DC
- Input Current: Typical value of 5mA per channel
- Response Time: Fast response with a delay time of 8 milliseconds
- Operating Temperature Range: 0°C to +60°C
- Storage Temperature Range: -40°C to +70°C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Grade: IP20
Functional Features:
- High-Density Channel Design: Integrates 32 digital input channels into a compact form factor, significantly reducing control cabinet space and optimizing wiring infrastructure.
- Robust Signal Conditioning and Isolation: Features four groups of independent galvanic isolation (optocoupler isolation) to protect the sensitive control system from voltage transients, electrical noise, and ground loops in harsh industrial environments.
- Advanced Event Processing: Equipped with event sequence recording and pulse capture capabilities to accurately detect and transmit rapid signal changes or encoder pulse signals.
- Built-in Diagnostics: Includes comprehensive self-diagnostic functions and LED status indicators for real-time monitoring, fault detection, and streamlined maintenance.
- Flexible Communication: Seamlessly integrates with the ABB control architecture via high-speed fieldbus protocols like PROFIBUS DP for real-time data exchange.
Application Scenarios:
- Water Treatment Facilities: Precise monitoring of distributed pump statuses, valve positions, and liquid level switches.
- Automotive Manufacturing: Tracking hundreds of limit switches and safety door interlocks on robotic welding lines to ensure synchronization and safety.
- Chemical Processing: Monitoring valve feedback and level switches in batch process control systems to ensure accurate material dosing and reactor sequencing.
- Power Generation: Tracking critical equipment states such as valve positions, circuit breaker statuses, and safety interlocks in thermal and renewable power plants.
Performance Parameters:
- Signal Integrity: Guarantees 100% data integrity through high-sensitivity detection of tiny signals and robust noise filtering.
- Reliability: Designed with enhanced durability to withstand gravitational and harsh environmental conditions, ensuring stable long-term operation.
- Accuracy: Provides reliable and accurate binary signal detection, eliminating cumulative counting errors through dedicated reset and high-speed counter mechanisms.
- Compatibility: Supports both sourcing and sinking input types, accommodating a wide variety of industrial field devices.
Material Composition & Structural Characteristics:
- Form Factor: Compact and space-saving modular design tailored for DIN rail or S800 base unit mounting.
- Physical Dimensions: Approximately 273mm in height, 40mm in width, and 252mm in depth.
- Weight: Approximately 1.23 kilograms.
- Base Material: Industrial-grade multi-layer printed circuit board (PCB) with high-quality surface-mount components.
- Connectivity: Features plug-in terminal connections for fast, secure, and vibration-resistant field wiring.
- Compliance: Manufactured in Sweden, fully compliant with RoHS (EU Directive 2011/65/EU), CE, UL, and cULus certifications.
Working Principle:
The DI651 module receives discrete binary signals from external field devices through its 32 isolated input channels. The internal signal conditioning circuitry filters out electromagnetic interference and electrical noise. The signals are then converted into a standardized digital format via optocouplers, ensuring complete electrical isolation between the field side and the logic side. The onboard microprocessor continuously polls the channel states, processes pulse captures, and packages the data for high-speed transmission over the S800 backplane bus to the central AC 800M controller for logical processing and decision-making.
