Description

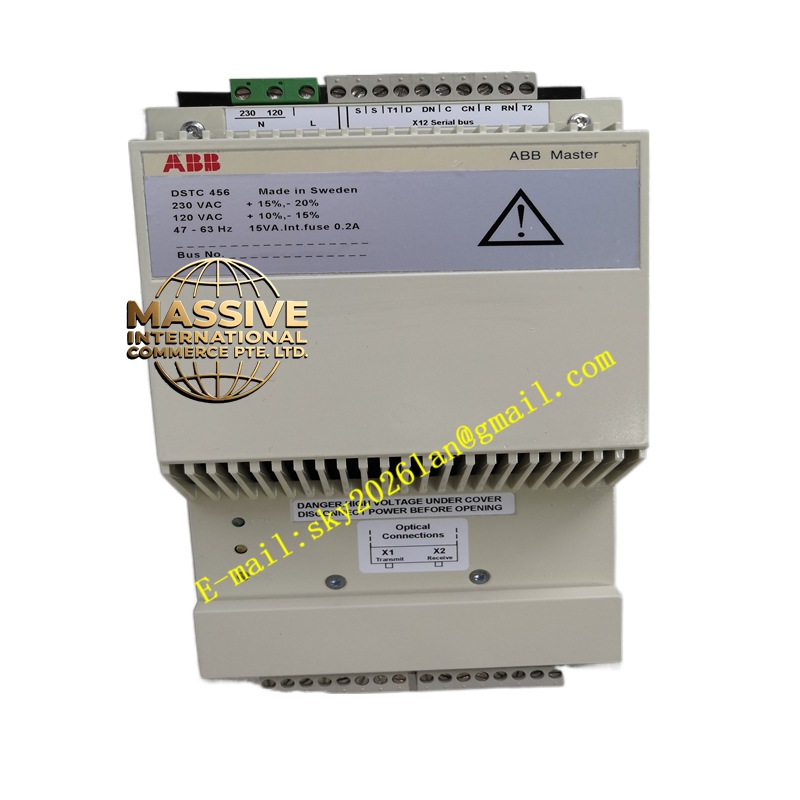

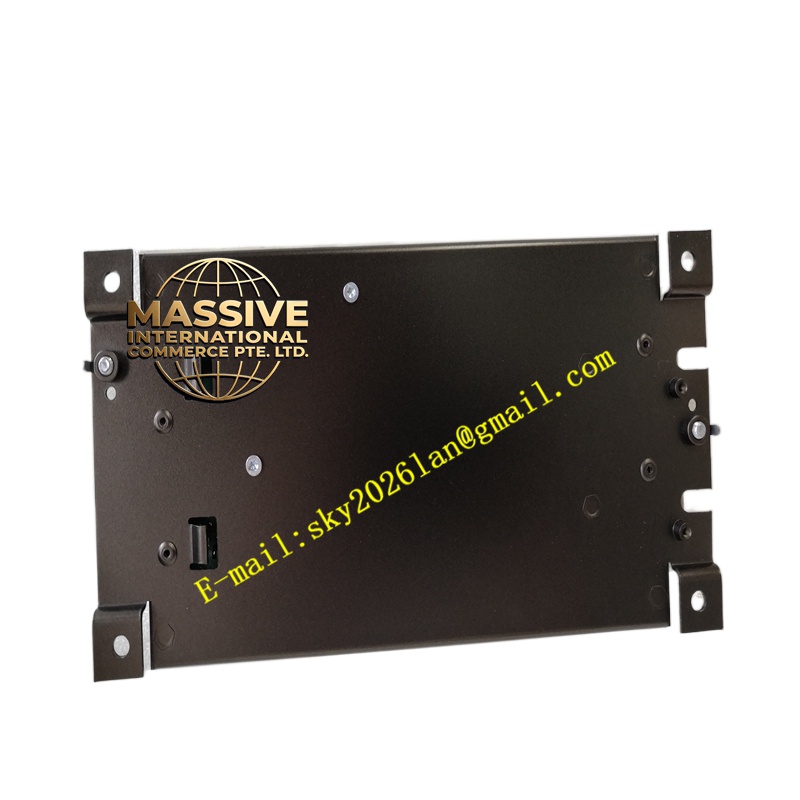

ABB DSTC456
Technical Specifications:
- Supported Protocols: PROFIBUS DP, Modbus, or proprietary ABB protocols.
- Baud Rate: Up to 12 Mbps (depending on protocol).
- Interface: Standard DB9 or terminal block connections.
Functional Features:
- Multi-Protocol Support: Adapts to various industrial network standards.
- Plug-and-Play: Simplifies configuration with standardized GSD/EDS files.
- Redundancy Support: Compatible with redundant communication setups for high availability.
Application Scenarios:
- Integrating ABB drives and I/O into Siemens or Rockwell automation networks.
- Upgrading legacy control systems with modern fieldbus connectivity.
Performance Parameters:
- Deterministic Response: Guaranteed cyclic data exchange for real-time control.
- Error Recovery: Automatic retransmission and fault isolation mechanisms.
Material Composition & Structural Features:
- Form Factor: Compact industrial module design.
- Indicators: LED status lights for power, run, and network activity.
Working Principle:
Encapsulates process data into fieldbus telegrams, responding to master polls and managing acyclic data transfers for parameterization and diagnostics.
Installation Requirements:
- Configure station address and baud rate via DIP switches or software.
- Use certified fieldbus cables with proper shielding.
Usage Precautions:
- Ensure unique station addresses across the entire network.
- Activate termination resistors only at the physical ends of the bus segment.
