Description

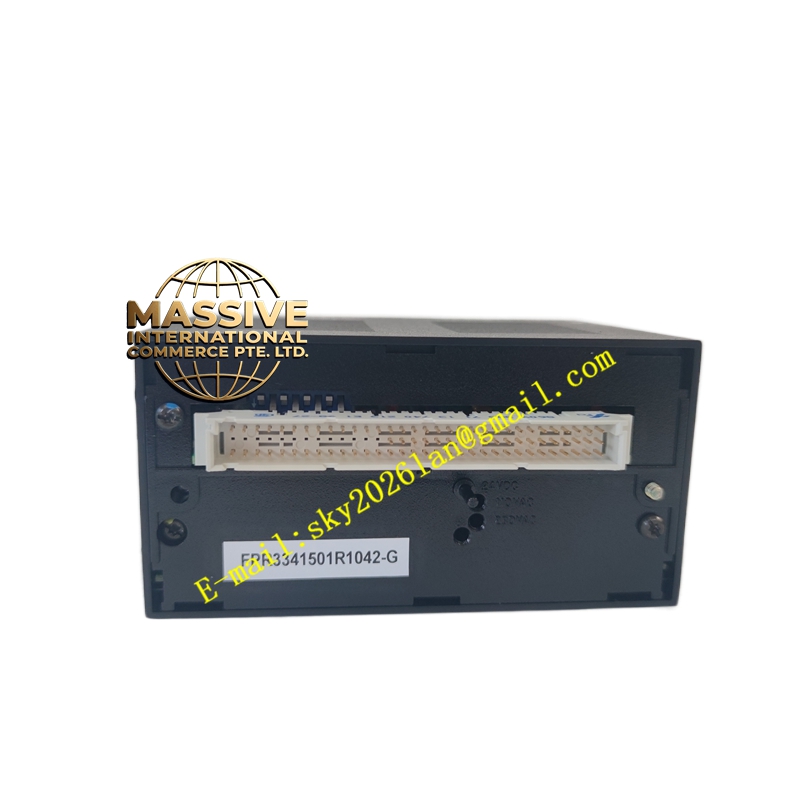

ABB ICSA04B5 FPR3341501R1042
Technical Specifications:
- Input Signals: Supports standard industrial analog signals (4-20mA, 0-10V, RTD, TC).
- Output Signals: Isolated analog outputs or digital backplane data.
- Accuracy: High-precision with low temperature drift.
- Isolation: Channel-to-channel and channel-to-system isolation.
Functional Features:
- Signal Isolation: Prevents ground loops and protects against transient voltages.
- Filtering: Built-in low-pass filters to remove electrical noise.
- Linearization: Converts non-linear sensor outputs (e.g., thermocouples) to linear signals.
- Diagnostics: Open wire and short circuit detection.
Application Scenarios:
- Precision temperature, pressure, and flow measurement.
- Signal isolation in noisy industrial environments.
- Interfacing legacy sensors with modern control systems.
Performance Parameters:
- Resolution: High-bit ADC for fine measurement granularity.
- Stability: Low drift over temperature and time.
Material Composition & Structural Characteristics:
- PCB: Precision analog layout with guard rings and ground planes.
- Components: Low-drift resistors, precision amplifiers, and isolation transformers.
- Terminals: Screw or spring-clamp terminals for secure connections.
Working Principle:
The module receives raw analog signals from field devices. Protection circuits clamp transient voltages, and isolation amplifiers break ground loops. Signal conditioning circuits filter noise, amplify weak signals, and apply linearization. The conditioned signal is then digitized or output as an isolated analog signal for the controller.
Installation Requirements:
- Use shielded twisted-pair cables for analog inputs.
- Connect shields at the module end only to prevent ground loops.
- Configure input type and scaling via DIP switches or software.
Usage Precautions:
- Verify input signal range matches module configuration.
- Do not apply voltages exceeding the maximum input rating.
- Perform periodic calibration to maintain measurement accuracy.
