Description

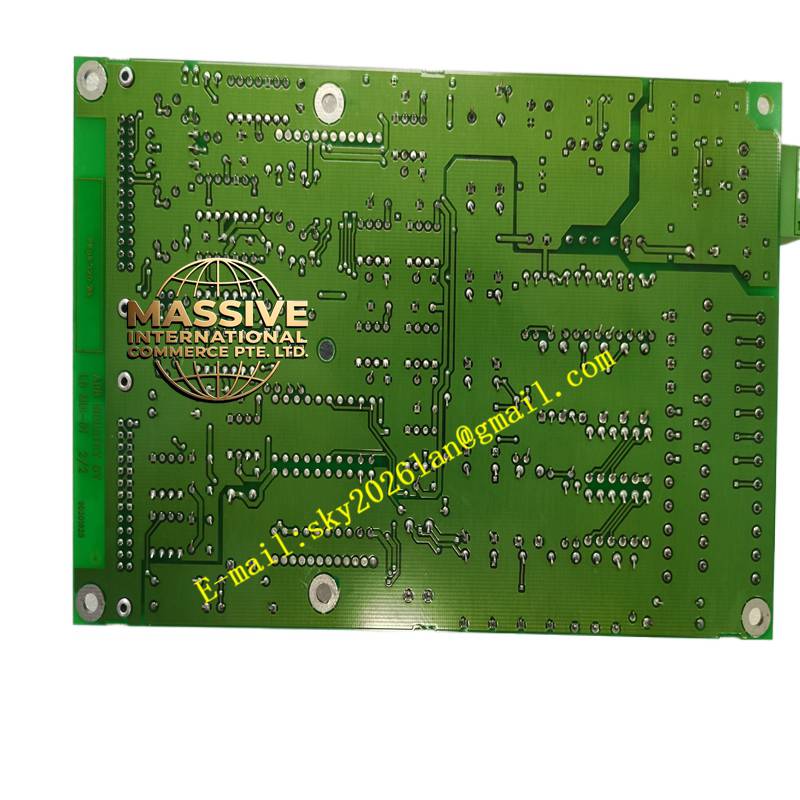

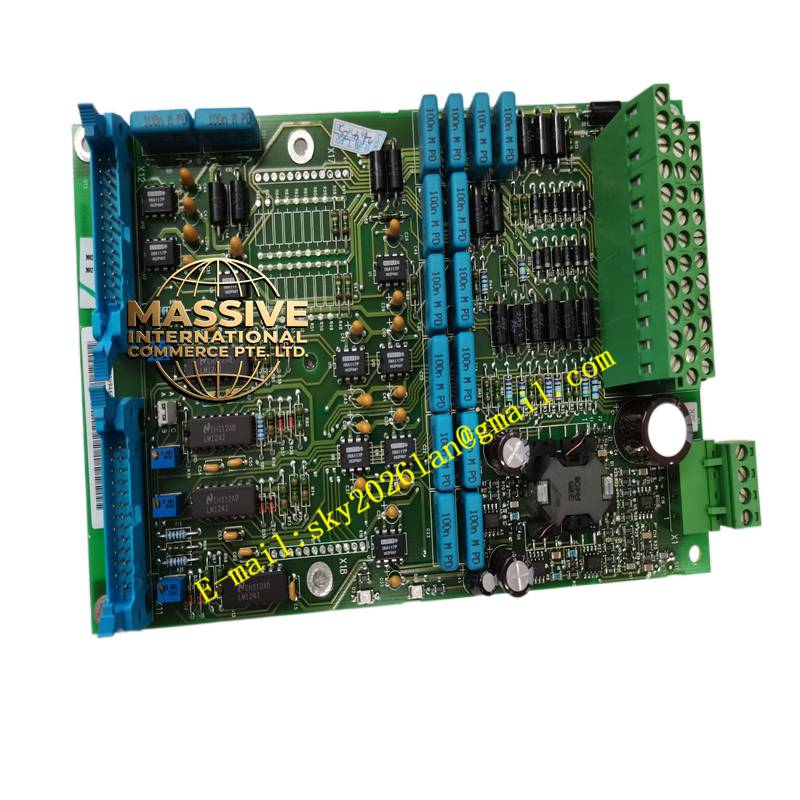

ABB LDMUI-01
Technical Specifications:
- Signal Types: Supports a hybrid configuration of digital inputs/outputs (DI/DO) and analog inputs/outputs (AI/AO).
- Supply Voltage: Standard 24 V DC industrial power supply.
- Signal Range: Analog signals support 0-10 V and 4-20 mA; digital signals support 24 V DC level.
- Communication Protocols: Compatible with mainstream industrial protocols including Modbus, Profibus, and TCP/IP.
Functional Features:
- Multi-Function Signal Processing: Integrates various signal interfaces into a single module, significantly reducing cabinet space and wiring complexity.
- High Anti-Interference Capability: Internal circuitry features excellent Electromagnetic Compatibility (EMC), effectively shielding against industrial electrical noise.
- Intelligent Self-Diagnostics: Built-in real-time monitoring identifies and reports channel disconnections, short circuits, or overloads instantly.
- Online Configuration: Supports parameter adjustments and online modifications via system software without requiring a system shutdown.
Application Scenarios:
Widely utilized in discrete manufacturing, process automation, water treatment plants, and building automation systems to interface with temperature/pressure sensors, control valves, and motor actuators.
Performance Parameters:
- Environmental Adaptability: Operating temperature range from -20°C to +60°C, ensuring reliability in harsh industrial environments.
- Protection Rating: IP20, effectively preventing the ingress of solid foreign objects.
- Cooling Method: Natural convection cooling with no moving mechanical parts, maximizing long-term reliability.
Material Composition:
The enclosure is constructed from high-strength, flame-retardant industrial-grade engineering plastics. Internal PCBs undergo a rigorous three-proof coating process (moisture, salt spray, and mold resistance).
Structural Features:
Features a compact modular design with a highly reliable industrial bus connector on the back. The front panel is equipped with clear LED channel status indicators and supports standard DIN rail mounting.
Working Principle:
The module utilizes high-precision Analog-to-Digital Converters (ADC) to transform field analog signals into digital data for the controller. Conversely, it converts digital logic from the controller into analog voltage/current or switching signals to drive external equipment.
Installation Requirements:
Must be installed vertically on a standard DIN rail, ensuring adequate clearance above and below for heat dissipation. Shielded cables with proper grounding are required for all signal connections.
Usage Precautions:
Never insert or remove the module while energized unless the system explicitly supports hot-swapping. Always verify that the signal type (voltage or current) matches the module’s hardware jumpers or software configuration to prevent channel burnout.
