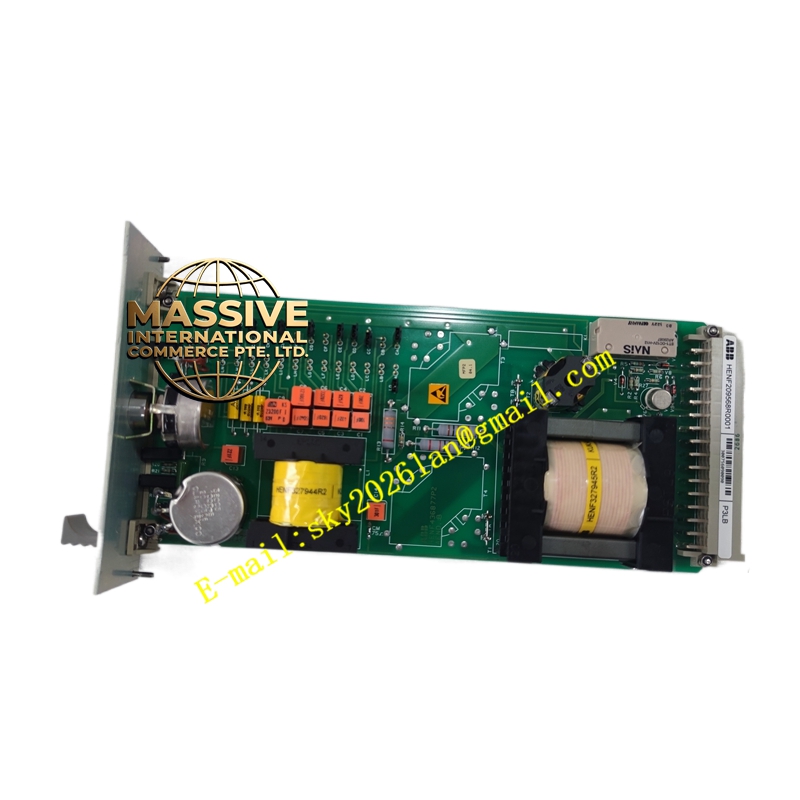

ABB P3LB HENF209568R0001
ABB P3LB HENF209568R0001 - Image 2

ABB P3LB HENF209568R0001

Product Brief (Gate-Driver Interface Interpretation — most common for P3LB in MV drive spares):

The P3LB receives low-power fiber-optic firing pulses from the drive control unit (NDCU-21C / NAMC-01 via NDBU-95 or direct fiber) and drives the IGCT gate with a high-current, short-duration pulse to turn ON, and a negative gate-current sink to turn OFF reliably. It also monitors gate-cathode voltage and reports desaturation / gate-fault back to the controller via fiber. The board is mounted directly on or very near the IGCT press-pack in the valve section and is part of the redundant firing/monitoring architecture.

Request Quote
Category: SKU: ABB P3LB HENF209568R0001

Description

ABB P3LB HENF209568R0001

  • Technical Specifications (typical gate-driver interface):
    • Input: Fiber optic receive (820 nm or 1300 nm) — firing command from control
    • Output: Gate trigger pulse (typical +15 V / –15 V wrt cathode; peak Ig ≥100 A for <10 µs turn-on; steady gate current few A)
    • Feedback: Desaturation detection (Vce monitor), gate-fault flag → transmitted back via fiber or status contact
    • Supply: Isolated auxiliary power (typically ±15 V DC derived from DC link via dedicated isolating converter on driver)
    • Protection: Under-voltage lockout on driver supply; over-current / desat shutdown → immediate inhibit + fault report
    • Indicators: Power OK LED, Firing Active LED, Fault LED (visible on valve deck during commissioning)
    • Mounting: Bolted to IGCT heat-sink / press-pack assembly or to valve-deck DIN rail in screened compartment
    • Operating Temp.: –10 °C to +50 °C (valve hall — actively cooled / ventilated)
  • Functional Features:
    • Direct fiber link to control — immune to EMI from high di/dt switchings in valve
    • Redundant gate-driver design in ACS6000 — each IGCT has primary + monitor driver
    • Integrates with drive’s self-test — at power-up drive checks gate-driver presence & health before enabling PWM
  • Application Scenarios:
    • ACS6000 / ACS5000 MV drive — IGCT gate driver for 3-level NPC or Cascaded H-Bridge topology
    • Spare part for scheduled maintenance / replacement after IGCT failure (gate driver often replaced together with IGCT if fault suspected)
    • Used in high-power (>5 MVA) cement mill, mining conveyor, marine propulsion drives
  • Material & Structure / Working Principle / Installation / Precautions:
    • Install per drive service manual — P3LB boards are electrostatically and high-voltage sensitive; only trained MV drive service personnel may handle
    • Verify fiber routing — minimum bend radius; clean end-face before mating
    • After installation: perform gate-driver selftest from drive HMI — confirms firing pulse integrity and feedback
    • Precaution:​ IGCT valve deck contains lethal DC link voltage (several kV) and stored energy​ — never access with cover open unless DC link discharged and locked out. Gate-driver board may have small isolated potentials — still treat as part of HV equipment. Mismatched P3LB revision may cause gate-driver incompatibility — use exact spare as specified by drive type / serial number.
