Description
ABB PM802F
ABB PM573-ETH 1SAP130300R0271
Product Name:
ABB PM573-ETH 1SAP130300R0271 Programmable Logic Controller CPU Module (ABB PM573-ETH 1SAP130300R0271 可编程逻辑控制器CPU模块)
Product Overview:
The ABB PM573-ETH 1SAP130300R0271 is a highly efficient and cost-effective central processing unit (CPU) module belonging to the ABB AC500 series. It serves as the core brain for industrial automation and process control applications, providing robust logic execution, integrated communication, and modular expansion capabilities.
Technical Specifications:
- Processor Memory: 512 kB program memory for handling complex logic and data.
- Communication Interfaces: Integrated Ethernet port and two RS232/RS485 serial ports.
- Digital I/O: Features 16 integrated digital input/output ports.
- Power Supply: Operates on a standard 24 V DC power supply.
- Current Rating: Rated current of 0.5 A.
- Protection Rating: IP20 protection level suitable for standard control cabinets.
Functional Features:
- Integrated Networking: Built-in Ethernet support for Modbus TCP/IP and Ethernet/IP protocols, enabling seamless remote monitoring and debugging.
- Modular Expansion: Supports local expansion of up to 10 I/O modules (mixing standard S500 and S500-eCo modules) with a maximum of 335 I/O channels.
- High-Speed Processing: Capable of high-speed counting up to 50 kHz for precise motion and encoder applications.
- Web Server Integration: Integrated Ethernet CPU supports a Web server, FTP server, and SNTP for easy data access and time synchronization.
- Self-Diagnostics: Comprehensive LED indicators and self-diagnostic functions for rapid troubleshooting and minimized downtime.
Application Scenarios:
- Manufacturing factory automation and machinery control.
- Complex process control systems requiring reliable networking.
- Smart infrastructure and building automation.
- Mid-range industrial applications requiring scalable I/O and Ethernet connectivity.
Performance Parameters:
- Frequency: 50/60 Hz.
- Insulation Voltage: Rated insulation voltage of 500 V.
- Dimensions: Compact form factor measuring 141 x 90 x 70 mm.
- Data Storage: Supports optional SD card/SD card adapter for program backup and data logging.
Material Composition & Structural Characteristics:
- Housing: Rugged industrial-grade plastic casing with a matte gray finish.
- Cooling: Passive cooling system relying on natural convection, eliminating moving parts.
- Indicators: Front-panel LED status lights for power, run, error, and communication states.
- Connectors: Integrated RJ45 Ethernet and serial communication ports.
Working Principle:
The CPU module continuously scans the connected input modules and executes the user-programmed logic (IEC 61131-3 standard). It processes the logic, updates the output modules, and communicates with external SCADA systems or other PLCs via the integrated Ethernet and serial ports. The onboard processor manages memory allocation, communication protocols, and real-time clock functions.
Installation Requirements:
- Mounting: Designed for standard DIN rail installation within electrical control cabinets.
- Wiring: Connect 24 V DC power to the designated power terminals and wire Ethernet/serial cables securely.
- Environment: Ensure the installation environment maintains appropriate temperature and humidity levels.
- Software: Utilize ABB Automation Builder for programming, configuration, and commissioning.
Usage Precautions:
- Electrostatic Discharge: Always use ESD protection when handling the module to prevent internal damage.
- Network Security: Secure the integrated Ethernet port against unauthorized access when connected to open networks.
- Expansion Limits: Do not exceed the maximum local expansion limit of 10 I/O modules.
- Maintenance: Regularly check terminal tightness and LED diagnostic indicators during preventive maintenance.
ABB PM633 3BSE008062R1
Product Name:
ABB PM633 3BSE008062R1 Relay Output Module (ABB PM633 3BSE008062R1 继电器输出模块)
Product Overview:
The ABB PM633 3BSE008062R1 is a specialized relay output module used in industrial automation and control systems. It acts as an interface between the low-power digital signals of the PLC and high-power external actuators, providing electrical isolation and signal amplification.
Technical Specifications:
- Output Type: Relay output.
- Working Voltage: 220 V.
- Output Frequency: Up to 60 kHz.
- Product Weight: 0.2 kg.
- Hot-Swappable: Supports hot-plugging for maintenance without system shutdown.
Functional Features:
- Actuator Control: Directly controls external devices such as motors, valves, buzzers, and contactors.
- Signal Amplification: Amplifies low-power digital control signals to drive high-power relay outputs.
- State Monitoring: Equipped with fault diagnosis functions to monitor the real-time status of relays and report to the control system.
- Overload Protection: Built-in protection mechanisms to safeguard the control system and actuators from overcurrent or overload damage.
Application Scenarios:
- Industrial production line automation and equipment control.
- Power generation and distribution system control.
- Water and wastewater treatment pump and valve control.
- HVAC systems and traffic signal control.
Performance Parameters:
- Relay Life: High mechanical and electrical cycle life for demanding switching applications.
- Isolation: Complete galvanic isolation between the PLC bus and field output circuits.
- Response Time: Fast relay actuation and release times for precise control.
Material Composition & Structural Characteristics:
- Contacts: High-quality silver-alloy relay contacts for reliable switching.
- Enclosure: Compact plastic module housing designed for DIN rail mounting.
- Indicators: Status LEDs to indicate active output channels and fault conditions.
Working Principle:
When the PLC issues a digital ON command, the module energizes the internal relay coil. The magnetic field closes the relay contacts, completing the external high-power circuit. When the command is OFF, the coil de-energizes, and a spring returns the contacts to the open position. The module continuously monitors the coil and contact status for diagnostic feedback.
Installation Requirements:
- Mounting: Snap onto standard DIN rails in the control panel.
- Wiring: Use appropriately sized wires for the connected load current.
- Protection: Install flyback diodes or snubber circuits across inductive loads to protect relay contacts.
- Spacing: Allow adequate ventilation space around the module to dissipate heat.
Usage Precautions:
- Load Limits: Strictly adhere to the maximum voltage and current ratings of the relay contacts.
- Inrush Current: Account for high inrush currents when switching lamps or motors; derate if necessary.
- Hot-Swap: Follow proper hot-swap procedures to prevent bus communication errors.
- Maintenance: Monitor diagnostic alarms for contact wear or coil failures and replace the module as needed.
ABB PM665 3BDS005799R1
Product Name:
ABB PM665 3BDS005799R1 Processor Module (ABB PM665 3BDS005799R1 处理器模块)
Product Overview:
The ABB PM665 3BDS005799R1 is an advanced processor module within the ABB AC500-eCo series. It provides a highly cost-effective and compact automation solution, combining processing power with integrated I/O and communication in a single unit for smaller-scale applications.
Technical Specifications:
- Series: AC500-eCo.
- Integrated I/O: Built-in digital inputs and outputs.
- Communication: Integrated serial and optional Ethernet communication.
- Programming: Fully compatible with IEC 61131-3 standard.
Functional Features:
- All-in-One Design: Combines CPU, I/O, and communication to reduce panel space and wiring.
- Cost Efficiency: Optimized for applications requiring fewer I/O points without sacrificing core PLC functionality.
- Expandability: Can be expanded with additional AC500-eCo or standard S500 modules if needed.
- User-Friendly: Simplified configuration and programming via Automation Builder.
Application Scenarios:
- Small machinery and OEM equipment.
- Simple conveyor and material handling systems.
- Packaging and labeling machines.
- Remote pumping and monitoring stations.
Performance Parameters:
- Scan Time: Fast cyclic processing for responsive control.
- Memory: Adequate program and data memory for compact applications.
- Power Consumption: Low power draw suitable for limited power supplies.
Material Composition & Structural Characteristics:
- Housing: Space-saving plastic enclosure.
- Terminals: Removable screw terminal blocks for fast field wiring.
- Connectors: Integrated communication ports on the front panel.
Working Principle:
The PM665 operates similarly to a standard PLC but integrates the I/O directly onto the CPU board. It scans local inputs, executes logic, and updates local outputs in a single cyclic scan. Communication is handled via the integrated ports, allowing it to act as a standalone controller or a remote I/O node.
Installation Requirements:
- Mounting: DIN rail mountable with secure locking mechanisms.
- Wiring: Connect field devices directly to the onboard terminals.
- Power: Provide stable 24 V DC power.
- Software: Configure hardware and program logic using Automation Builder.
Usage Precautions:
- I/O Limits: Do not exceed the maximum current rating per output or total module current.
- Heat Dissipation: Ensure proper airflow as integrated I/O generates localized heat.
- Grounding: Properly ground the module to prevent electrical noise interference.
- Expansion: Verify compatibility before adding expansion modules.

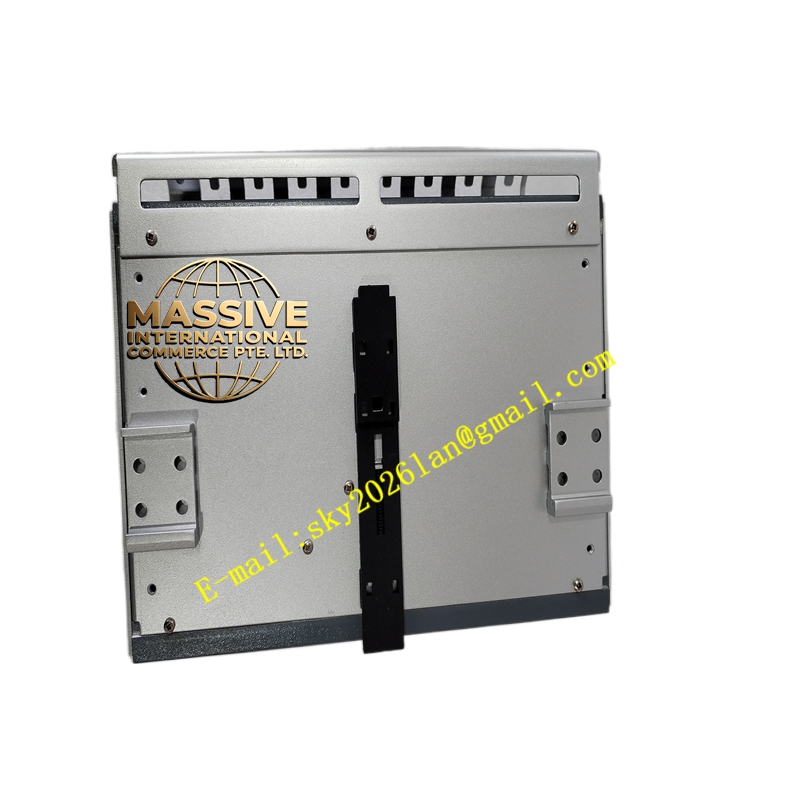

ABB PM802F
Product Name:
ABB PM802F Controller Module (ABB PM802F 控制器模块)
Product Overview:
The ABB PM802F is a powerful controller module designed for the ABB AC800F distributed control system (DCS). It serves as a high-performance automation controller for complex process control, offering extensive memory, communication capabilities, and redundancy support.
Technical Specifications:
- System: AC800F DCS.
- Memory: Large program and data memory capacity.
- Communication: Multiple serial and fieldbus interfaces.
- Redundancy: Supports redundant power and communication configurations.
Functional Features:
- High-Performance Processing: Executes complex control algorithms and high-speed logic.
- DCS Integration: Seamless integration with ABB Freelance engineering tool and operator stations.
- Fieldbus Support: Native support for Profibus, Modbus, and other industrial protocols.
- Diagnostic Capabilities: Advanced system diagnostics and hot-swappable modules.
Application Scenarios:
- Chemical and petrochemical process control.
- Oil and gas production facilities.
- Power plant auxiliary systems.
- Large-scale manufacturing DCS applications.
Performance Parameters:
- Task Execution: Multi-tasking real-time operating system.
- I/O Capacity: Supports extensive distributed I/O networks.
- Reliability: High MTBF with redundant options.
Material Composition & Structural Characteristics:
- Enclosure: Rugged industrial housing.
- Backplane: High-speed backplane connector for I/O expansion.
- Indicators: Comprehensive front-panel status LEDs.
Working Principle:
The PM802F executes control tasks in a deterministic real-time environment. It communicates with distributed I/O stations over fieldbus networks, processes control logic, and exchanges data with higher-level SCADA/DCS systems. Redundant configurations ensure continuous operation during hardware failures.
Installation Requirements:
- Mounting: Secure mounting in AC800F rack or DIN rail.
- Network: Properly terminate fieldbus networks.
- Configuration: Use Freelance software for hardware and logic configuration.
- Power: Connect to redundant power supply if applicable.
Usage Precautions:
- Redundancy: Test redundancy failover during commissioning.
- Firmware: Keep firmware updated to the latest stable version.
- Environment: Maintain strict environmental controls for DCS reliability.
- Backup: Regularly backup project files and controller configurations.
